Multi adapter 40 | 30 | 16 | 91

morepic-1

morepic-2

Multi adapter

Item no. 5408996 | EAN 4012195613442

Item no. / Types	5408996 / 101 MA-16

Dimension B	40 mm

Dimension d min.	30 mm

Dimension d Ø	16 mm

Dimension L	91 mm

Product description

Product description

• Connector for two GFK rods

• Dimension D Ø: 16 mm

Technical data

Technical data

Dimension	150x90x25
Dimension B	40 mm
Dimension d min.	30 mm

Dimension d Ø	16 mm
Dimension L	91 mm
Material	Stainless steel

All types

All types

Types	Dimension B	Dimension d min.	Dimension d Ø	Dimension L	Item no.	Quantity	SSU
101 MA-16	40 mm	30 mm	16 mm	91 mm	5408996	piece	10 piece

Downloads

Data sheet 101 MA-16 / 5408996 , 0.21MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

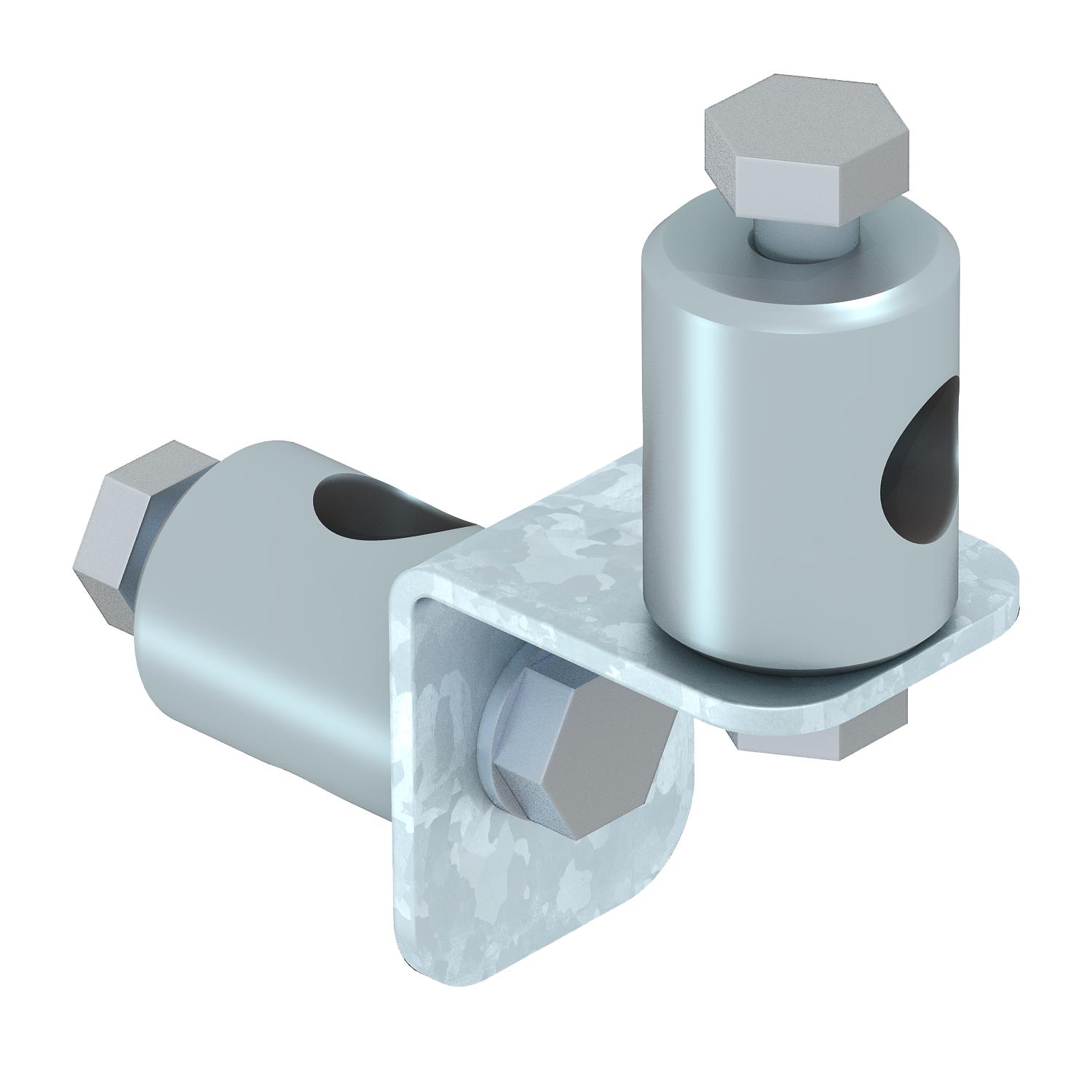

Product graphic 101 MA-16 / 5408996, 70.46 kB, jpg

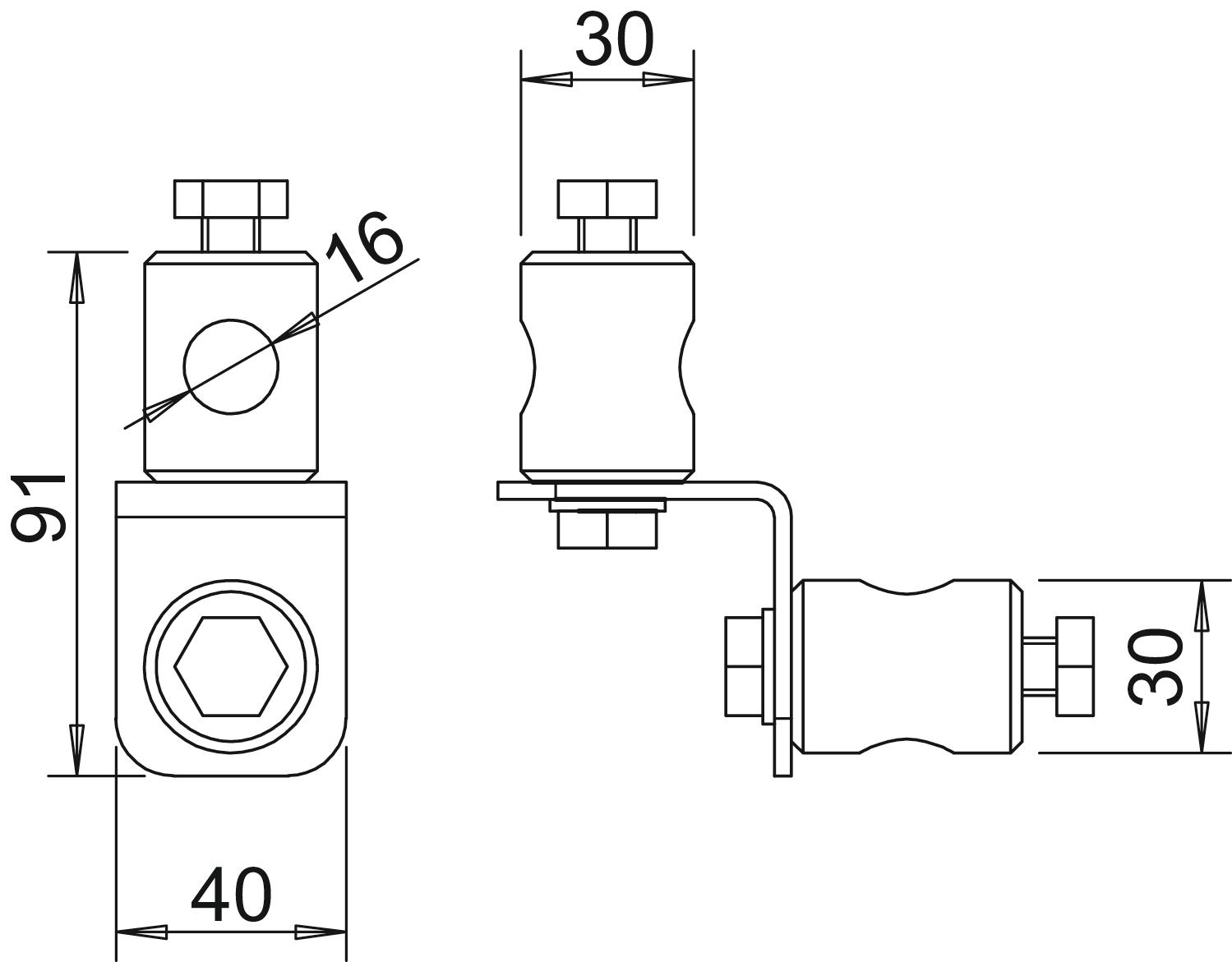

Scale drawing 101 MA-16 / 5408996, 67.10 kB, jpg

101 MA-16 / 5408996
