- Product description
-

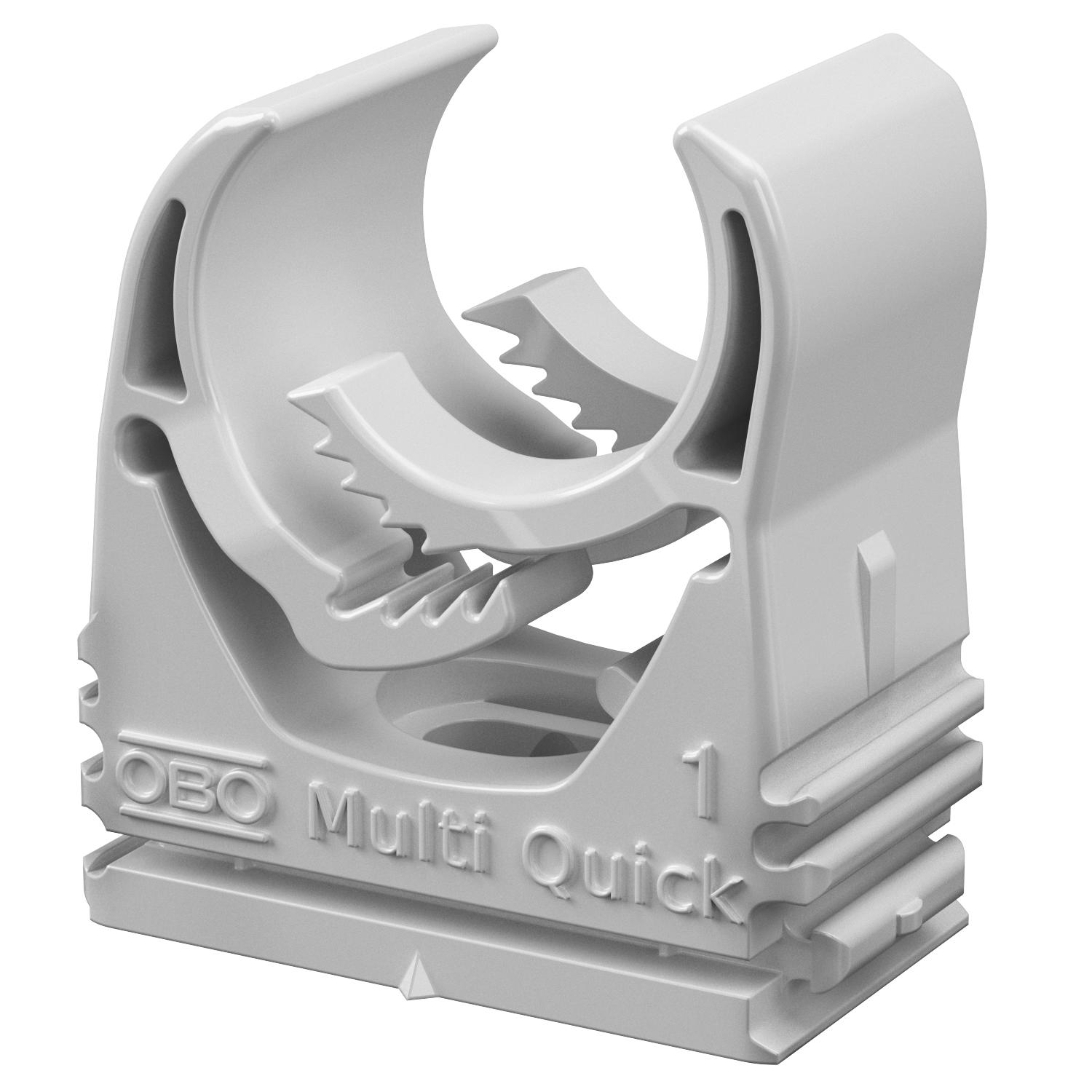

Product descriptionFlush-mounted clip to accept metric and PG pipes and Quick Pipe electrical installation pipes. Flexible clamping range of several millimetres. Universal fastening options on walls and ceilings and usable in a profile rail, both in indoor and protected outdoor areas. Toolless pipe mounting. Can also be arranged with OBO Quick clip or starQuick clip.
- Technical data
-
Technical data

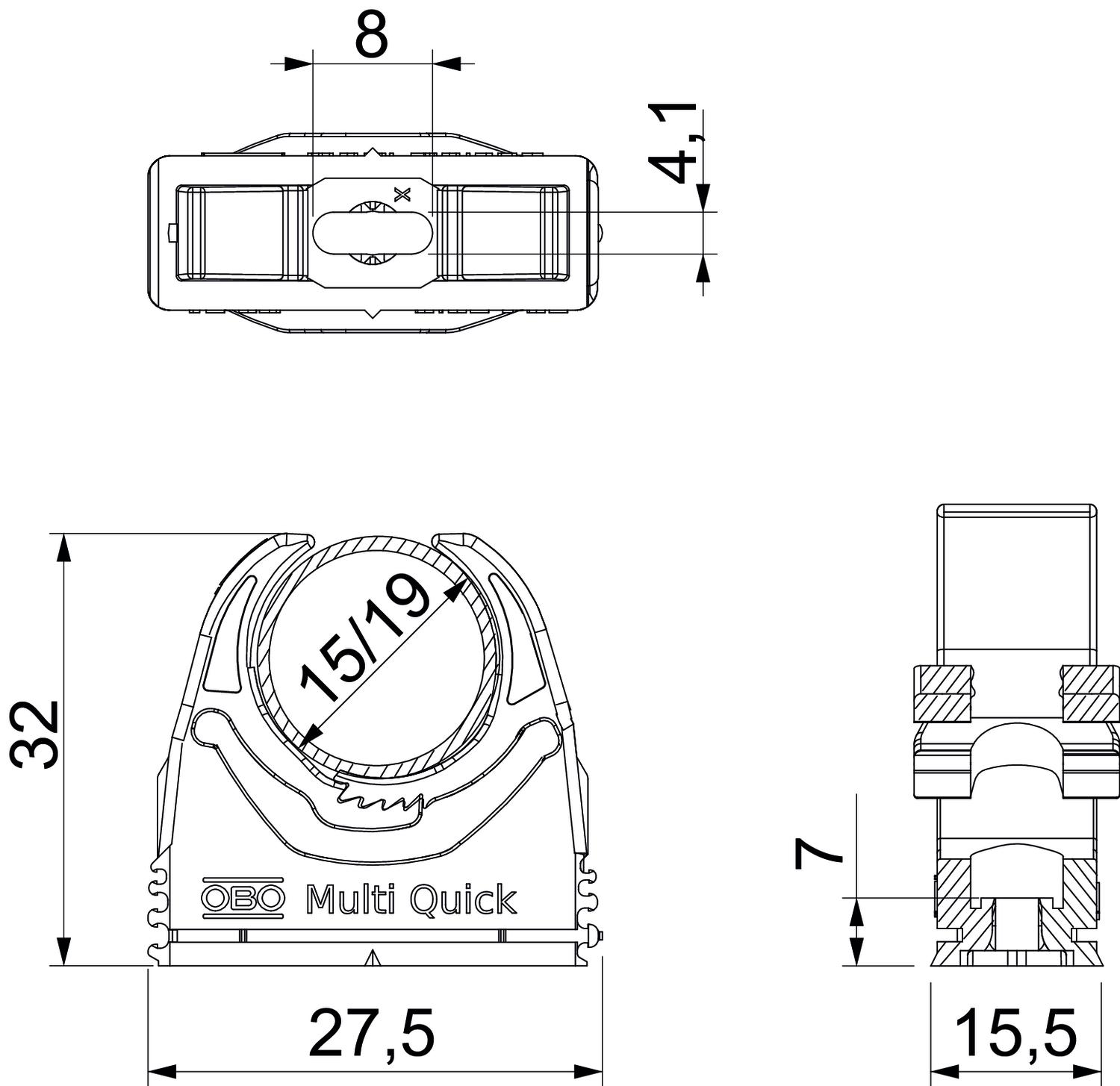

Clamping range D, max. 19 mm Clamping range D, min. 15 mm Closed no Colour Light grey; RAL 7035 Dimension 15-19mm Dimension A 27,5 mm Dimension B 15,5 mm Dimension E 8 mm Dimension F 4,1 mm Dimension H 32 mm Dimension h 7 mm Expandable yes Fastening type Screw hole Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Halogen-free yes Material Polyamide Number of cables/pipes 1 Pull-out value 40 N UV-resistant no With inlay no - All types
- Downloads
-
Data sheet M-Quick 15-19LGR / 2153106 , 0.22MB , pdfBrochure Quick Pipe , 1.41MB , pdfEU declaration of conformity M-Quick 15-19LGR / 2153106 , 0.13MB , pdfREACH Declaration of conformity M-Quick 15-19LGR / 2153106 , 0.12MB , pdfRoHS Declaration of conformity M-Quick 15-19LGR / 2153106 , 0.12MB , pdfLabel approval VDE symbol approval, Multi Quick , 0.43MB , pdf
