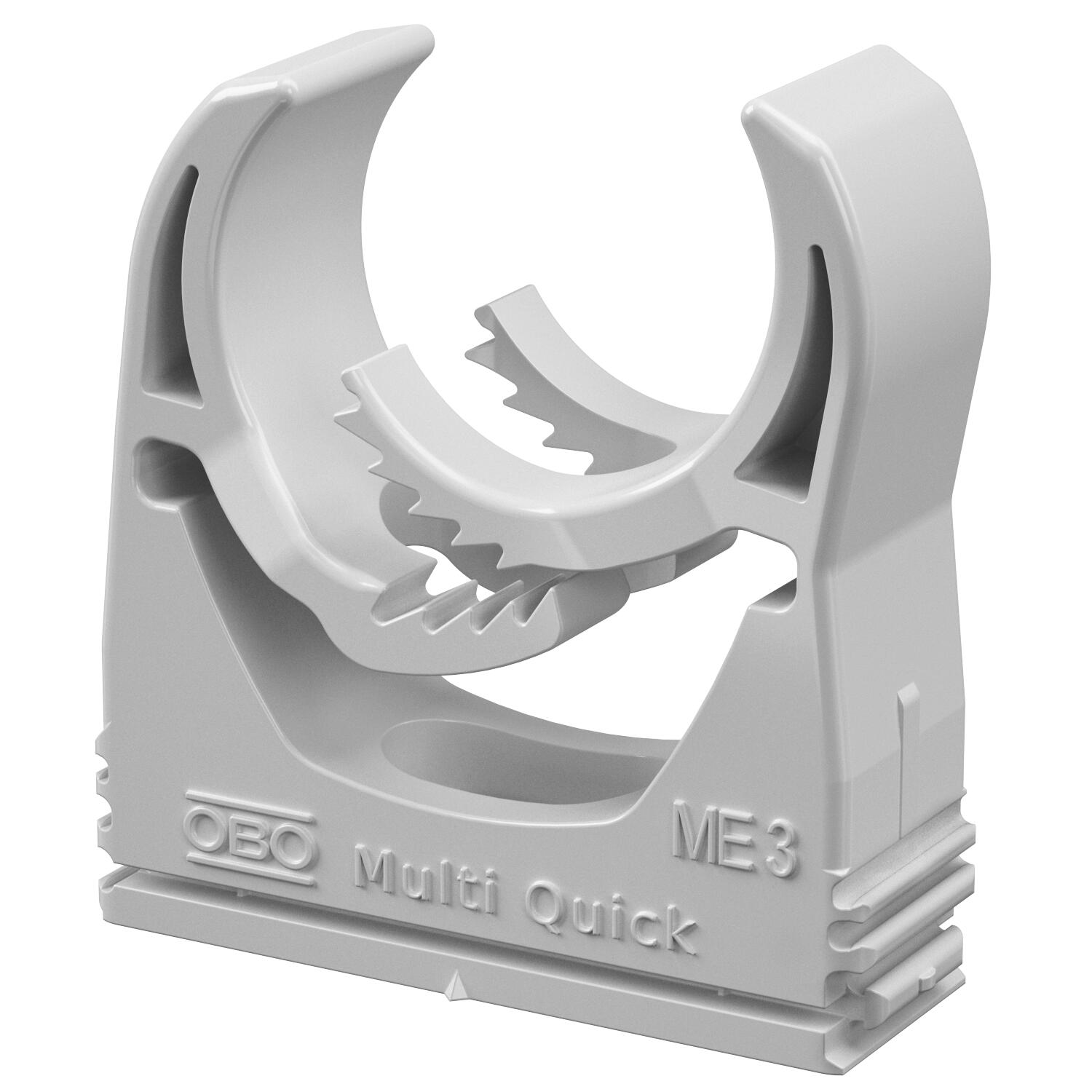

Multi-Quick clip, metric

Item no. 2153734 | EAN 4012195741671

Light grey; RAL 7035
Product description

Product description

Flush-mounted clip to accept metric pipes and Quick Pipe electrical installation pipes. Flexible clamping range of several millimetres. Universal fastening options on walls and ceilings, both indoors and outdoors. Toolless pipe mounting. Can also be arranged with OBO Quick or starQuick clip.
  • Indication of metric products
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Clamping range D, max. 32 mm
Clamping range D, min. 25 mm
Closed no
Colour Light grey; RAL 7035
Dimension 25-32mm

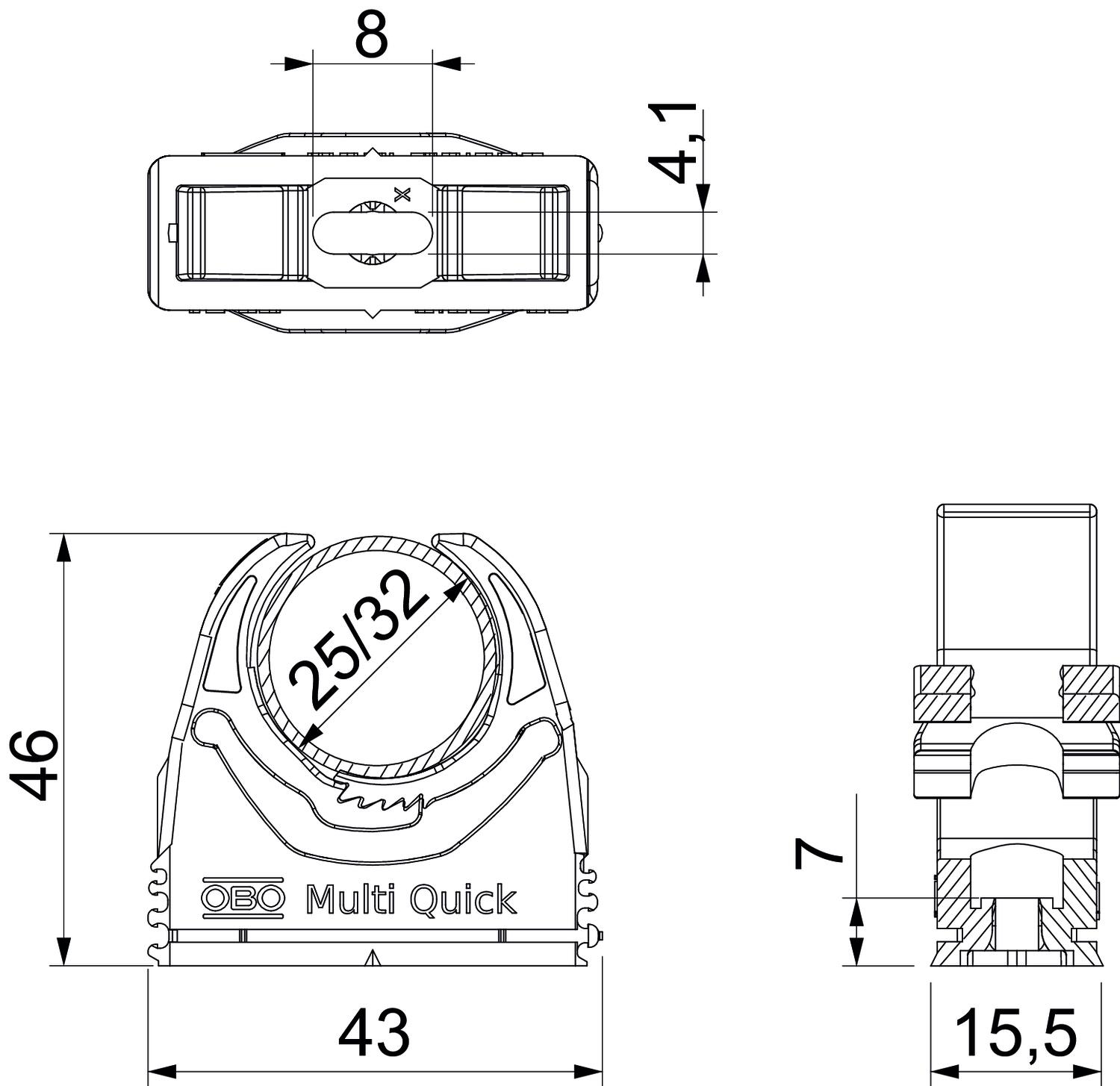

Dimension A 43 mm
Dimension B 15,5 mm
Dimension E 8 mm
Dimension F 4,1 mm
Dimension H 46 mm
Dimension h 7 mm
Expandable yes
Fastening type Screw hole
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Halogen-free yes
Material Polyamide
Number of cables/pipes 1
Pull-out value 60 N
UV-resistant no
With inlay no
All types

All types

Types Clamping range D, min. Clamping range D, max. Colour Item no. Quantity SSU
M-Quick M20 LGR 16 mm 20 mm Light grey; RAL 7035 2153718
100 piece
M-Quick M25 LGR 20 mm 25 mm Light grey; RAL 7035 2153726
50 piece
M-Quick M32 LGR 25 mm 32 mm Light grey; RAL 7035 2153734
50 piece
