Multi-way seal insert, metric

Item no. 2029672 | EAN 4012195035831

Product description

Product description

Use to insert multiple thin cables in the V-TEC VM cable glands, is replaced with the simple sealing ring of the cable gland.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Colour Black

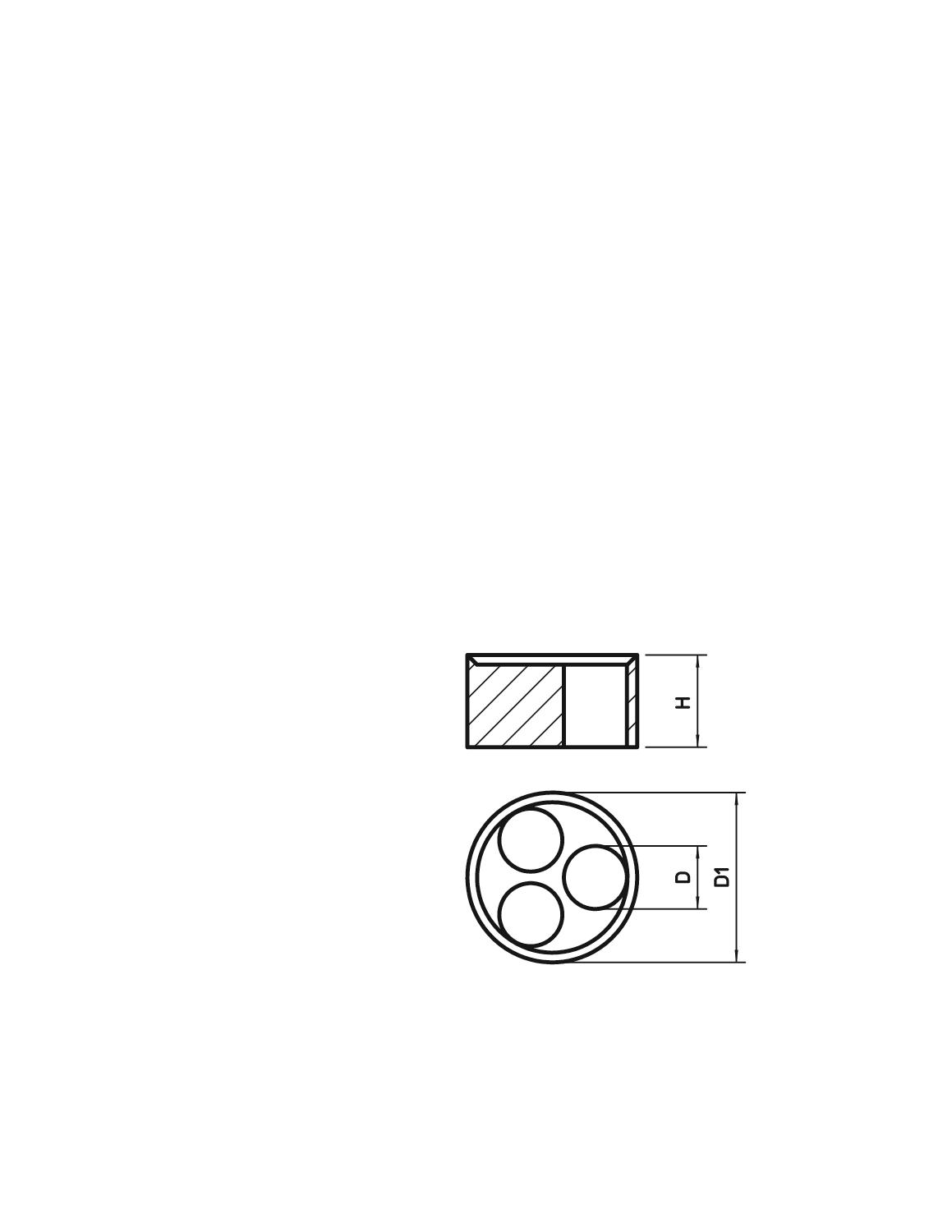

Dimension VM20,2X4
Dimension D 4 mm
Dimension D1 15,1 mm
Dimension H 8,1 mm
External diameter 15,1 mm
Hole diameter 4 mm
Inner diameter 4 mm
Material Rubber mixture
Number of drill holes 2
Suitable for metric thread dimension 20
Thickness 8,1 mm
Version for Miscellaneous
All types

All types

Types Number of drill holes Hole diameter Dimension D1 Item no. Quantity SSU
107 C VM 20 2x4 2 4 mm 15.1 mm 2029672
50 piece
107 C VM 20 4x5 4 5 mm 15.1 mm 2029675
50 piece
107 C VM 20 2x6 2 6 mm 15.1 mm 2029677
50 piece
107 C VM 25 5x4 5 4 mm 19.8 mm 2029679
50 piece
107 C VM 25 3x6 3 6 mm 19.8 mm 2029682
50 piece
107 C VM 25 2x6 2 6 mm 19.8 mm 2029685
50 piece
107 C VM 25 3x7 3 7 mm 19.8 mm 2029688
50 piece
107 C VM 25 2x8 2 8 mm 19.8 mm 2029690
50 piece
107 C VM 32 2x8 2 8 mm 25.1 mm 2029693
25 piece
107 C VM 32 4x8 4 8 mm 25.1 mm 2029696
25 piece
