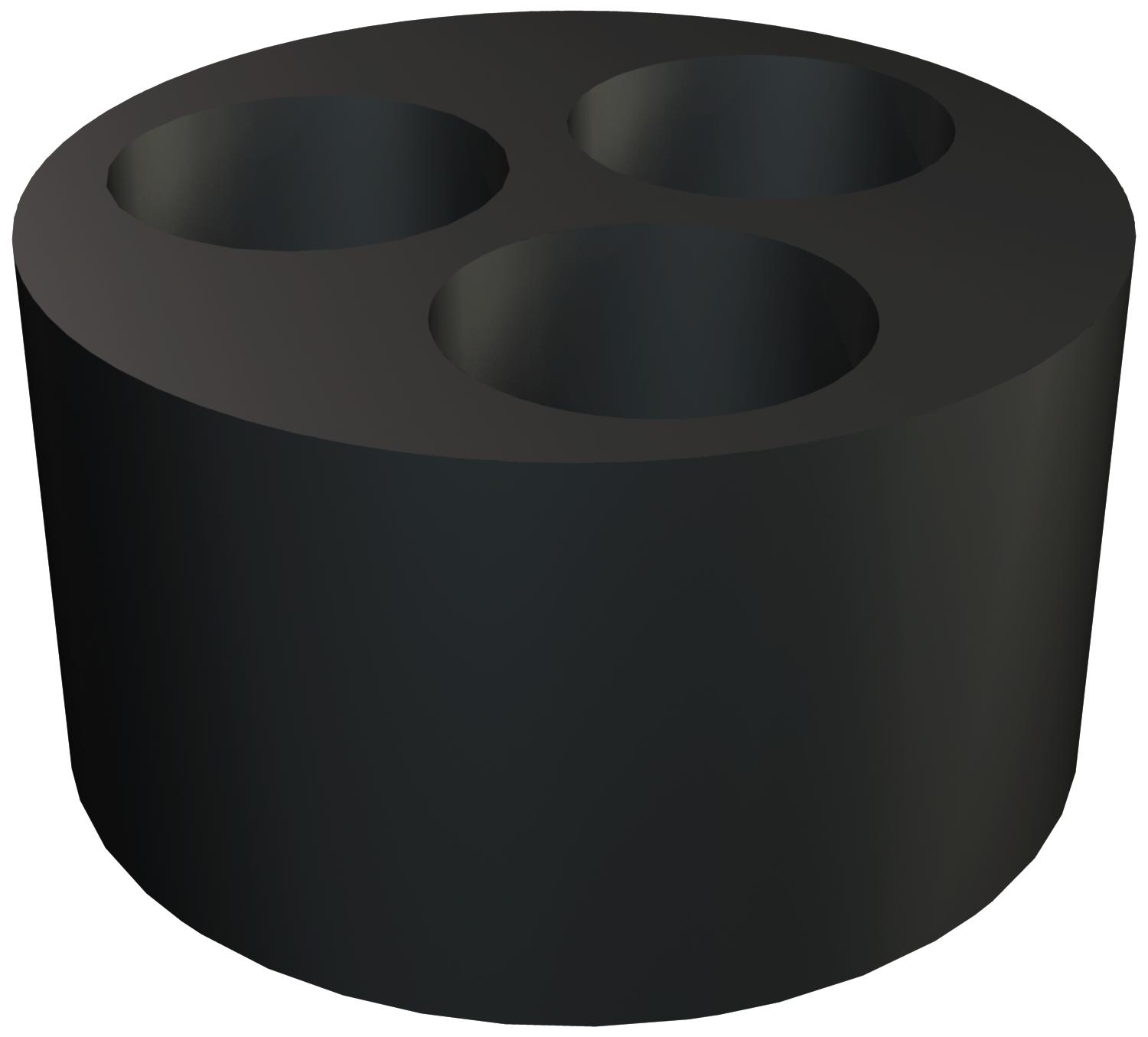

Multi-way seal insert, PG

Item no. / Types

Number of drill holes

Hole diameter

Dimension D1

Product description

Product description

Use to insert multiple thin cables in the V-TEC cable glands, is replaced with the simple sealing ring of the cable gland.

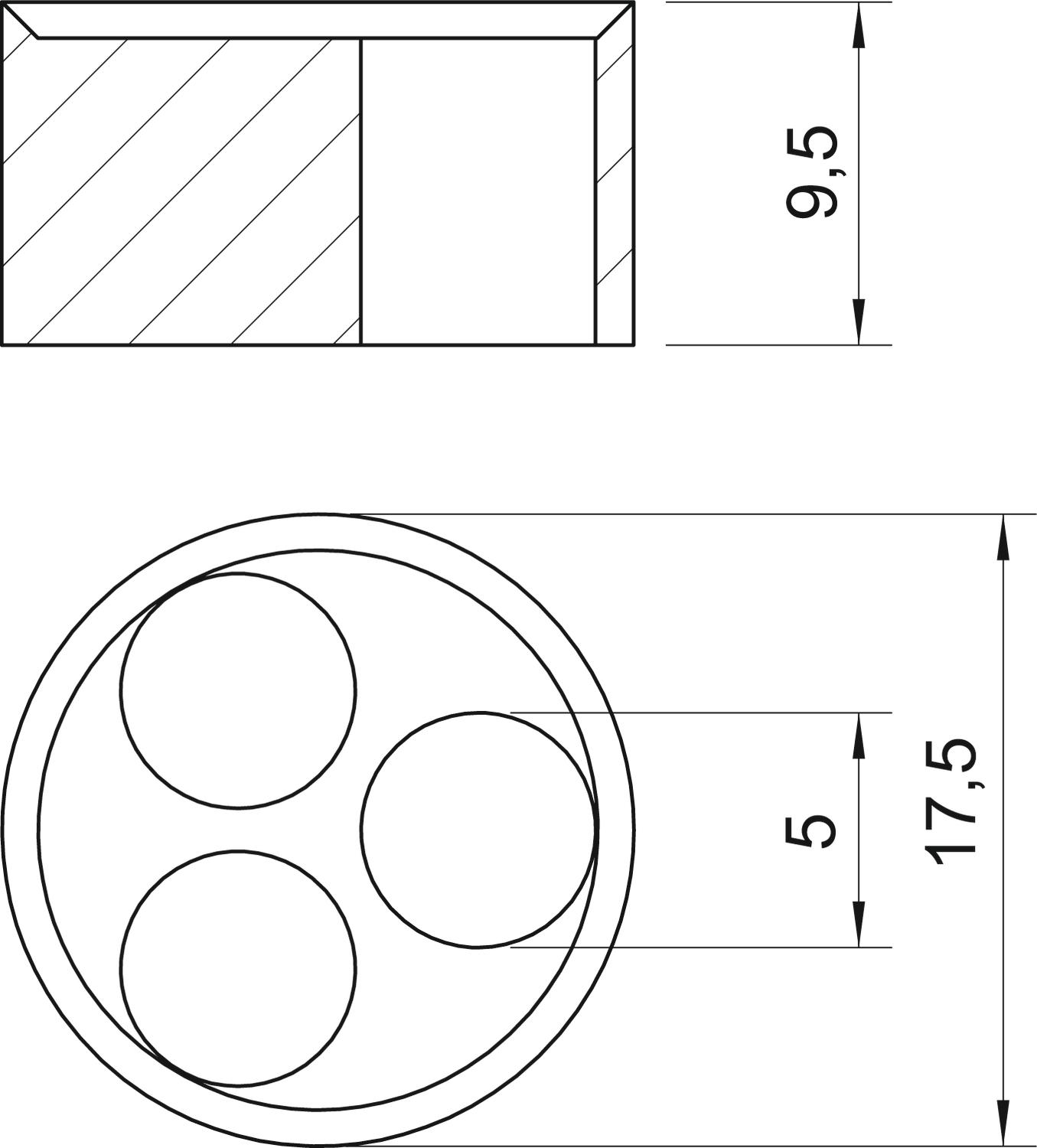

Technical data

Inner diameter	5 mm
Material	Rubber mixture
Number of drill holes	3
Screw for PG thread dimension	16
Thickness	9,5 mm
Version for	Miscellaneous

All types

All types

Types	Number of drill holes	Hole diameter	Dimension D1	Item no.	Quantity	SSU
107 C V 16 5x4	5	4 mm	17.5 mm	2029618	piece	50 piece
107 C V 16 3x5	3	5 mm	17.5 mm	2029626	piece	50 piece
107 C V 16 2x6	2	6 mm	17.5 mm	2029634	piece	50 piece
107 C V 16 3x6	3	6.5 mm	17.5 mm	2029642	piece	50 piece
107 C V 21 3x7	3	7 mm	23 mm	2029650	piece	25 piece
107 C V 21 2x8	2	8 mm	23 mm	2029669	piece	25 piece
