Multi-way seal insert, PG

Item no. 2029618 | EAN 4012195824596

Product description

Product description

Use to insert multiple thin cables in the V-TEC cable glands, is replaced with the simple sealing ring of the cable gland.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Black
Dimension PG16,5X4
Dimension D 4 mm
Dimension D1 17,5 mm
Dimension H 9,5 mm
External diameter 17,5 mm
Hole diameter 4 mm
Inner diameter 4 mm
Material Rubber mixture
Number of drill holes 5
Screw for PG thread dimension 16
Thickness 9,5 mm
Version for Miscellaneous
All types

All types

Types Number of drill holes Hole diameter Dimension D1 Item no. Quantity SSU
107 C V 16 5x4 5 4 mm 17.5 mm 2029618
50 piece
107 C V 16 3x5 3 5 mm 17.5 mm 2029626
50 piece
107 C V 16 2x6 2 6 mm 17.5 mm 2029634
50 piece

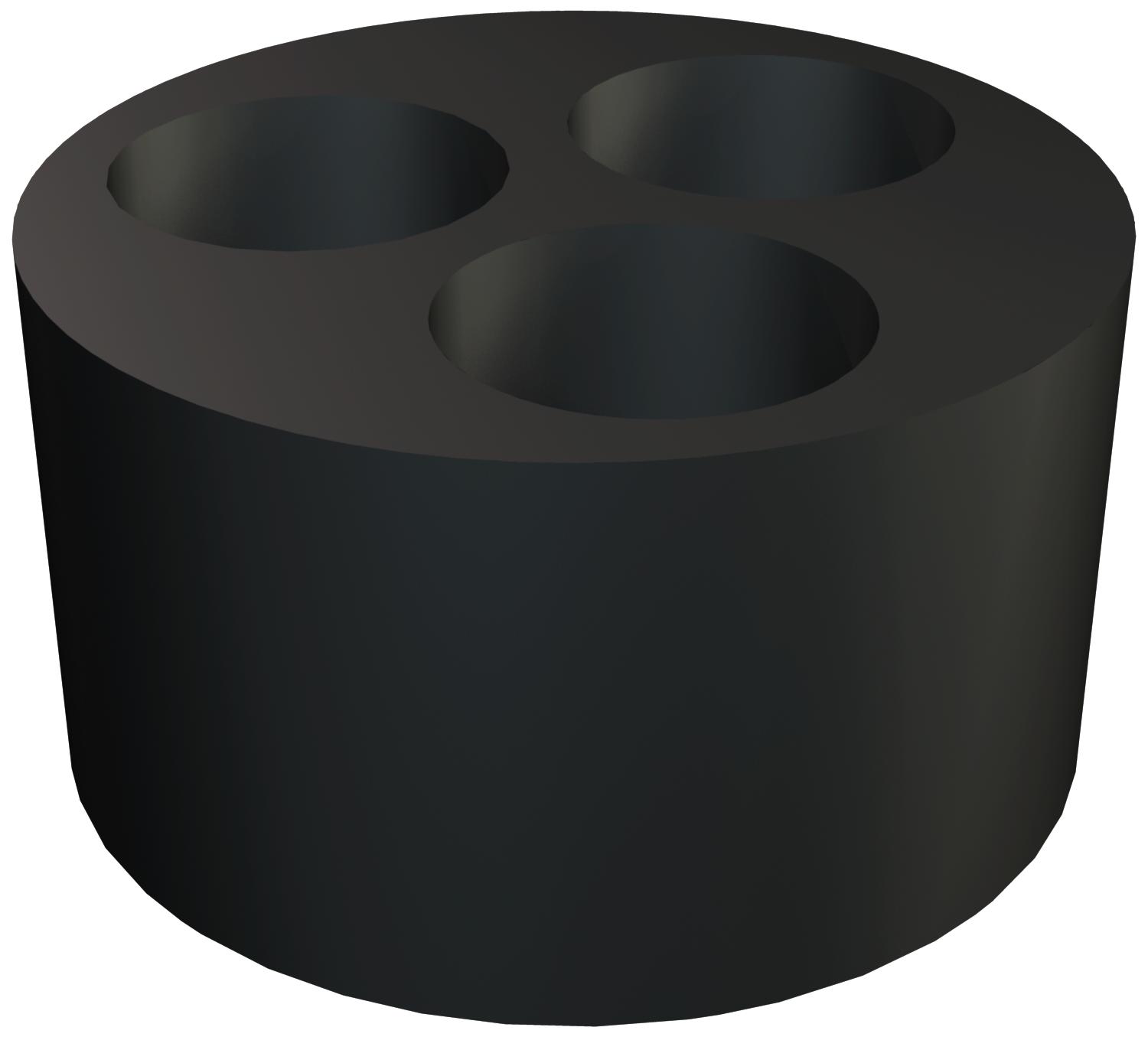

107 C V 16 3x6 3 6.5 mm 17.5 mm 2029642
50 piece
107 C V 21 3x7 3 7 mm 23 mm 2029650
25 piece
107 C V 21 2x8 2 8 mm 23 mm 2029669
25 piece
Downloads

Download

107 C V 16 5x4 / 2029618
Download
