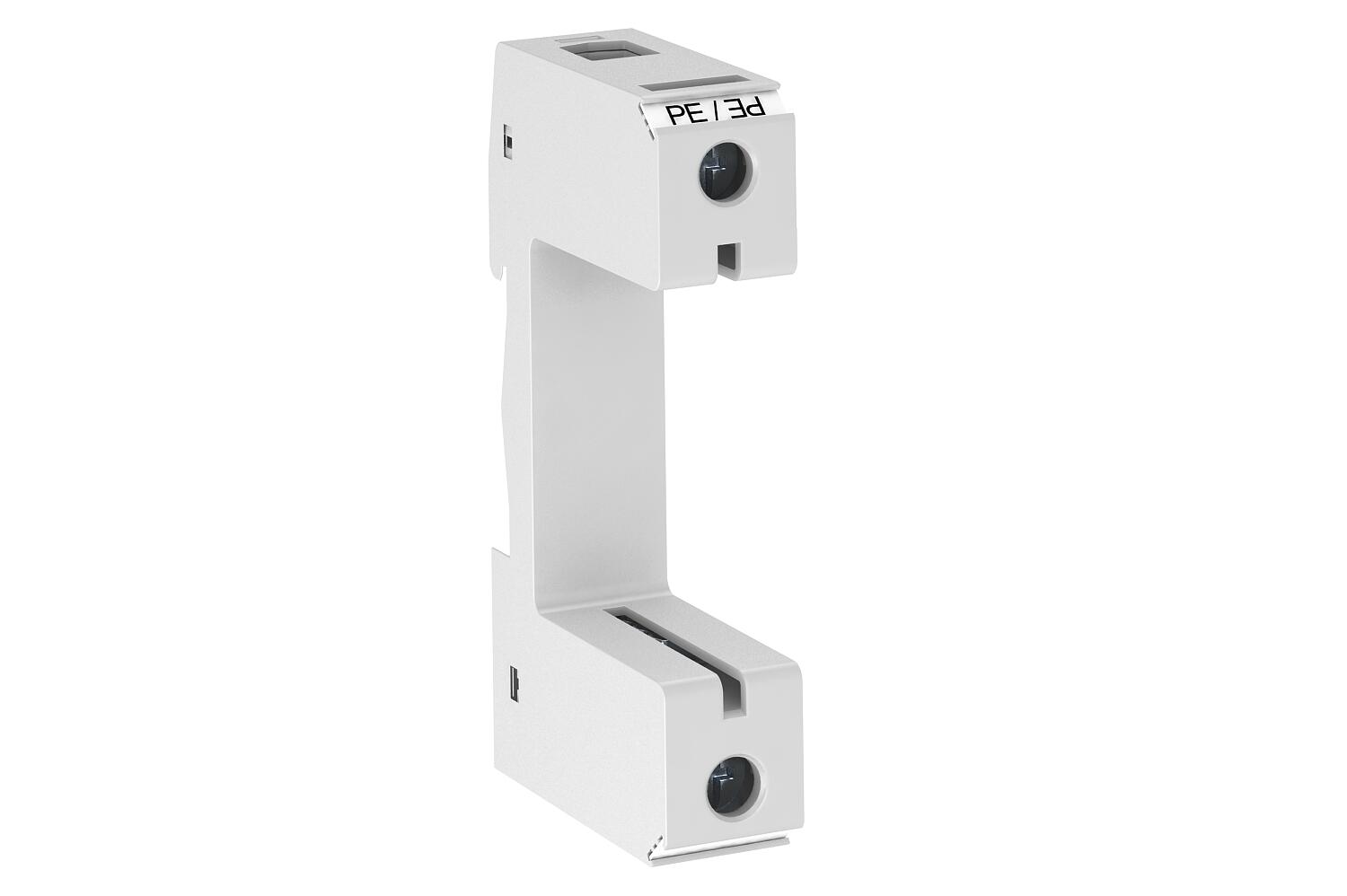

MultiBase base

Item no. 5096648 | EAN 4012195415732

Product description

Product description

• Suitable for V25-B+C, V20-C and V10-C

• Pre-mounted and ready for connection

• For TN systems

• Multifunction terminals for easy circuit of series-mounted devices

• Upper parts can be rotated through 180 degrees


  • Underwriters Laboratories Inc., USA
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
Technical data

Technical data

Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm²

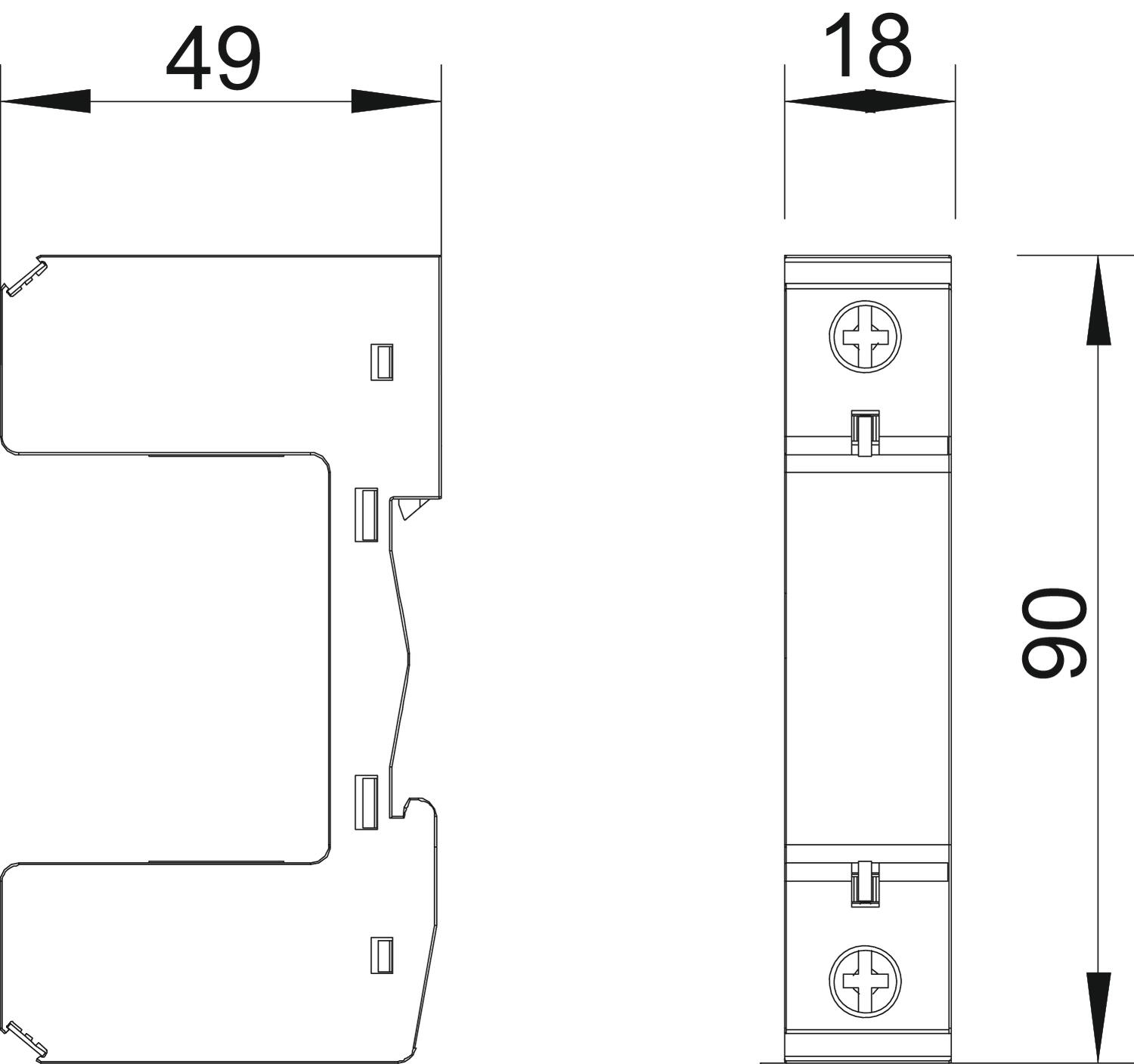

Dimension 1-polig
Installation type DIN rail 35 mm
Network form TN
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole version 1
Protection rating IP20
Signalling on device None
All types

All types

Types Item no. Quantity SSU
MB 1 5096648
1 piece
MB 2 5096653
1 piece
MB 3 5096665
1 piece
MB 4 5096680
1 piece
