MultiBase base
Item no. 5096665 | EAN 4012195067504
- Product description
-
Product description
• Suitable for V25-B+C, V20-C and V10-C
• Pre-mounted and ready for connection
• For TN systems
• Multifunction terminals for easy circuit of series-mounted devices
• Upper parts can be rotated through 180 degrees
-
- Technical data
-
Technical data

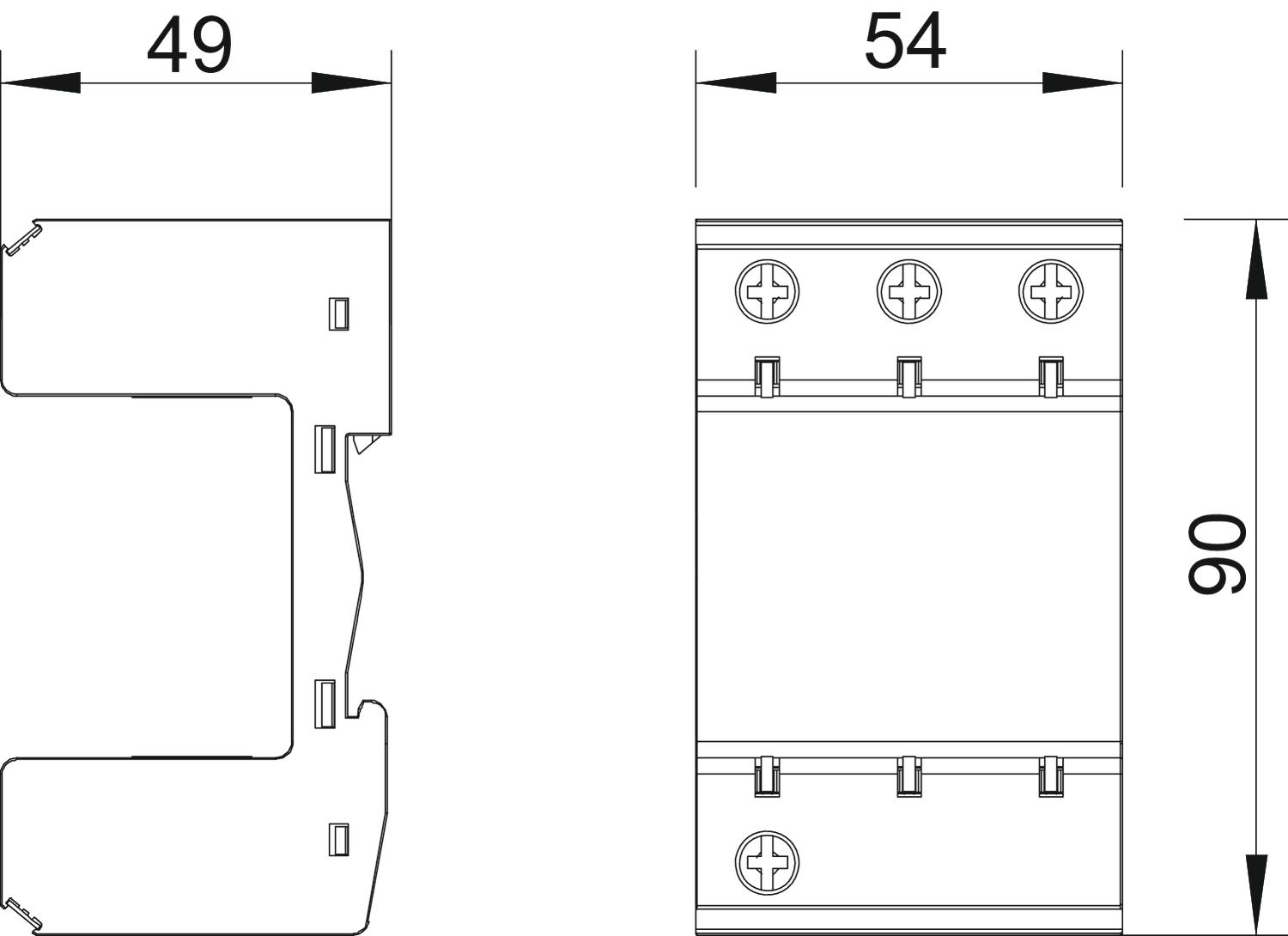

Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 3-polig Installation type DIN rail 35 mm Network form TN Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3 Protection rating IP20 Signalling on device None Version for 3-pole - All types
- Downloads
-
Data sheet MB 3 / 5096665 , 0.18MB , pdfTechnical information Technical information, MultiBase , 0.08MB , pdf
