MultiBase base + NPE
Item no. 5096669 | EAN 4012195067542
- Product description
-
Product description
• Suitable for V 25-B+C, V 20-C and V10-C
• Pre-mounted and ready for connection
• Multifunction terminals for easy connection to series-mounted devices
• Upper parts can be rotated through 180 degrees
• For TN-S and TT network systems
-
- Technical data
-
Technical data

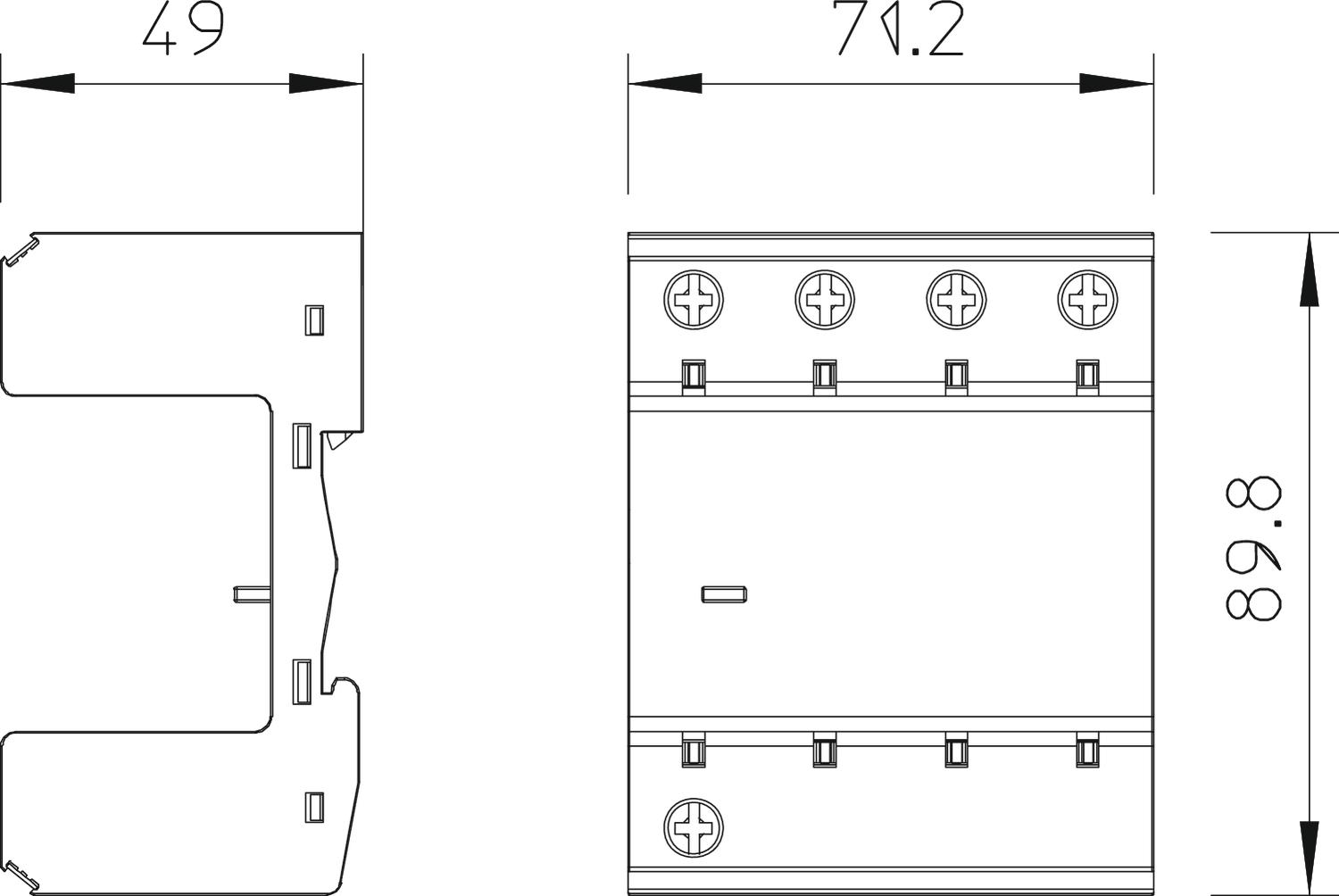

Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 3+NPE Installation type DIN rail 35 mm Network form Other Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3+N/PE Protection rating IP20 Version for 3+NPE - All types
- Downloads
-
Data sheet MB 3+NPE / 5096669 , 0.16MB , pdfREACH Declaration of conformity MB 3+NPE / 5096669 , 0.12MB , pdfRoHS Declaration of conformity MB 3+NPE / 5096669 , 0.12MB , pdfTechnical information Technical information, MultiBase , 0.08MB , pdf
