Multimedia support for DVI plug connector, 1 module, slanting outlet Miscellaneous | Pure white; RAL 9010

Multimedia support for DVI plug connector, 1 module, slanting outlet

Item no. 6104790 | EAN 4012195898849

Item no. / Types

Use	Miscellaneous

Colour

Product description

Product description

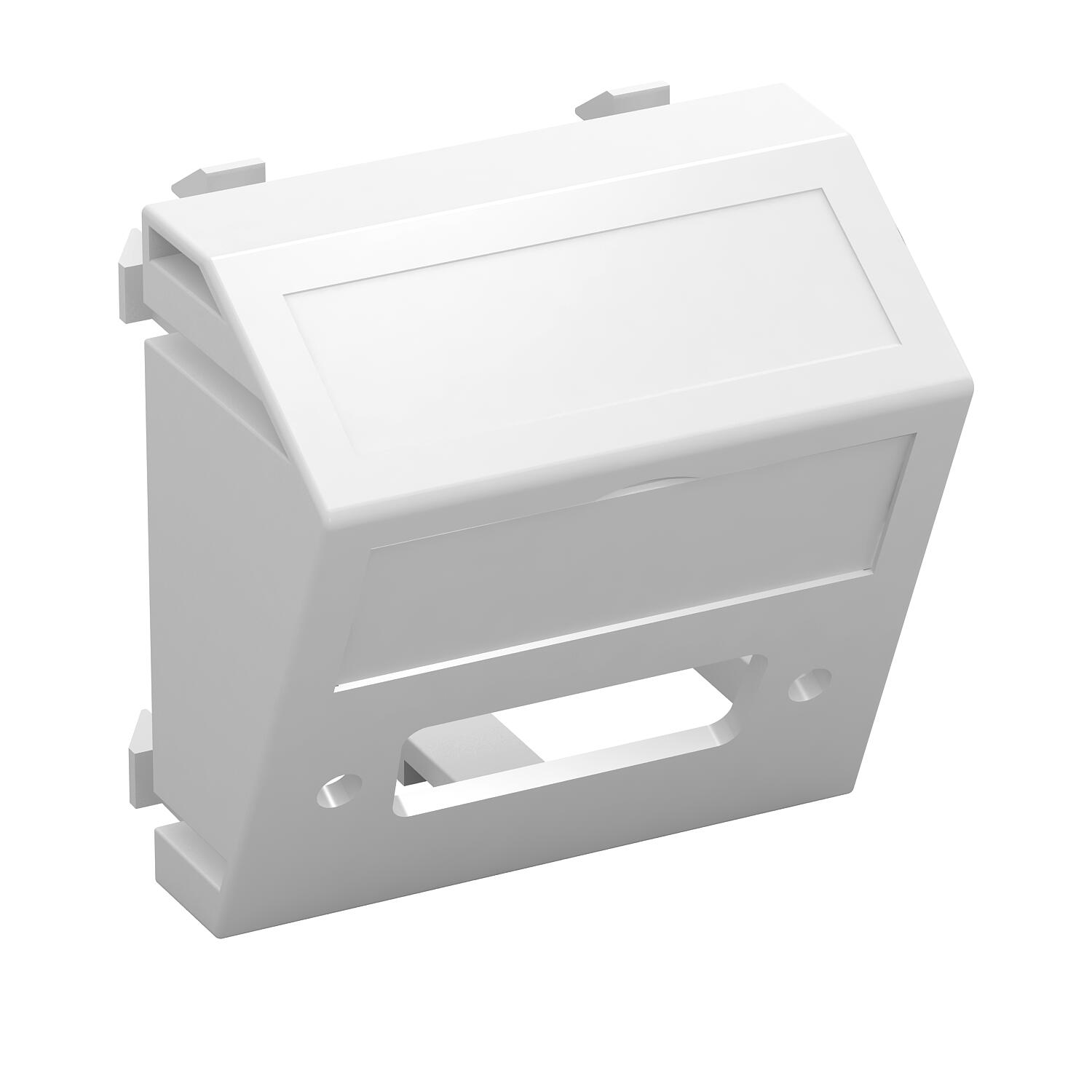

Multimedia support for a DVI plug connector, slanting cable outlet, with labelling panel, without plug connector. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Technical data

Technical data

Colour	Pure white; RAL 9010
Combination	Basic element with central cover plate

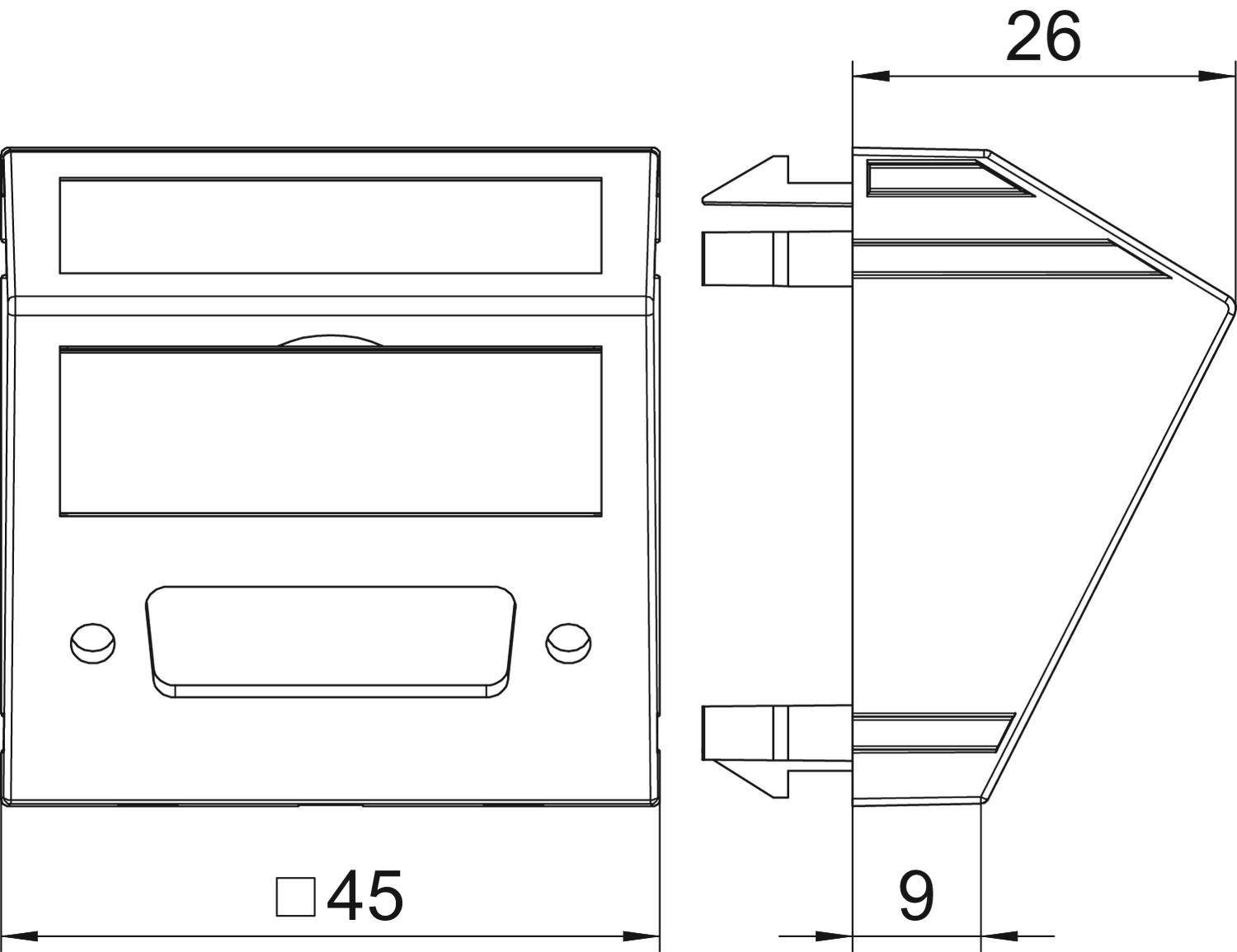

Depth	26 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	With labelling panel
Lamp-wire connector	no
Material	Polycarbonate

Number of units	1
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	Miscellaneous
Width	45 mm
With dust protection	no
With printed label	no

All types

All types

Types	Use	Colour	Item no.	Quantity	SSU
MTS-DV O RW1	Miscellaneous	Pure white; RAL 9010	6104790	piece	10 piece
MTS-DV O SWGR1	Miscellaneous	Black-grey; RAL 7021	6104793	piece	10 piece
MTS-DV O AL1	Miscellaneous	Aluminium painted	6104796	piece	10 piece
