Multimedia support for VGA/D-Sub9 plug connector, 1 module, slanting outlet VGA | Pure white; RAL 9010

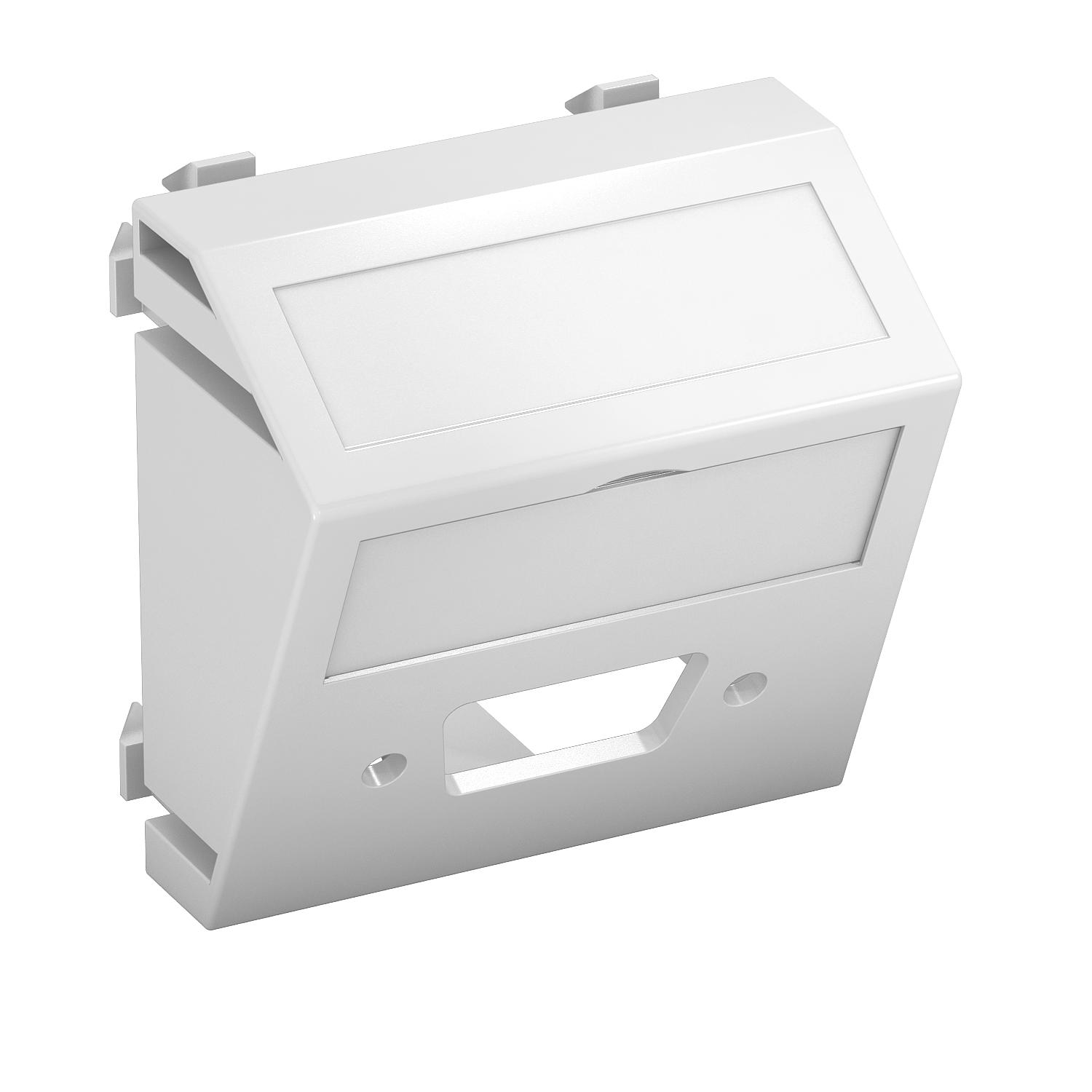

Multimedia support for VGA/D-Sub9 plug connector, 1 module, slanting outlet

Item no. 6104718 | EAN 4012195898627

Item no. / Types

Use	VGA

Colour

Product description

Product description

Multimedia support for a VGA/D-Sub9 plug connector, slanting cable outlet, with labelling panel, without plug connector. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Technical data

Technical data

Colour	Pure white; RAL 9010
Combination	Basic element with central cover plate

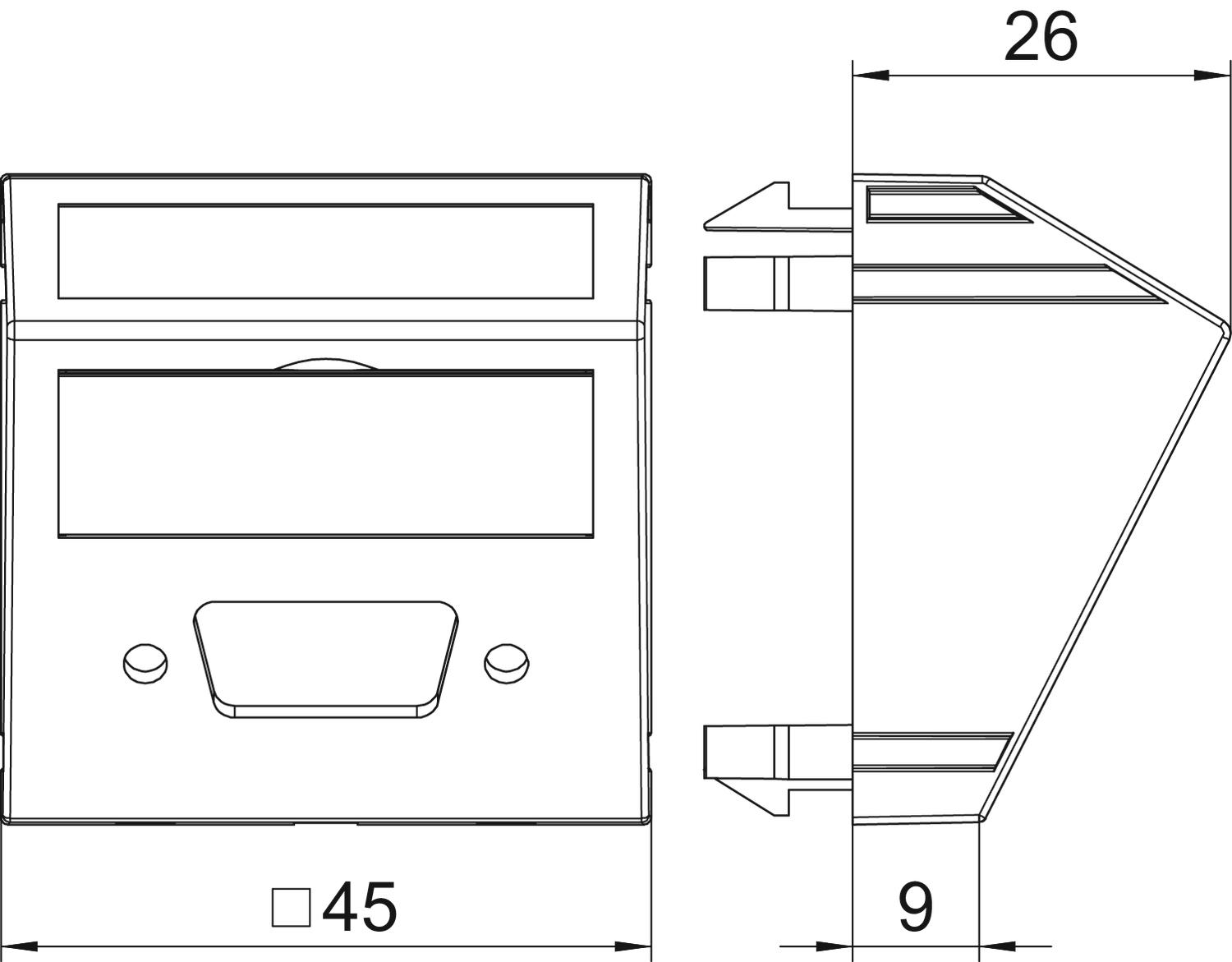

Depth	26 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	With labelling panel
Lamp-wire connector	no
Material	Polycarbonate

Number of units	1
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	VGA
Width	45 mm
With dust protection	no
With printed label	no

All types

All types

Types	Use	Colour	Item no.	Quantity	SSU
MTS-DB O RW1	VGA	Pure white; RAL 9010	6104718	piece	10 piece
MTS-DB O SWGR1	VGA	Black-grey; RAL 7021	6104721	piece	10 piece
MTS-DB O AL1	VGA	Aluminium painted	6104724	piece	10 piece
