Multiple sealing insert, metric

Item no. / Types

Number of drill holes

Hole diameter

Dimension D1

Product description

Product description

Use to insert multiple thin cables in the V-TEC VM cable glands, is replaced with the simple sealing ring of the cable gland.

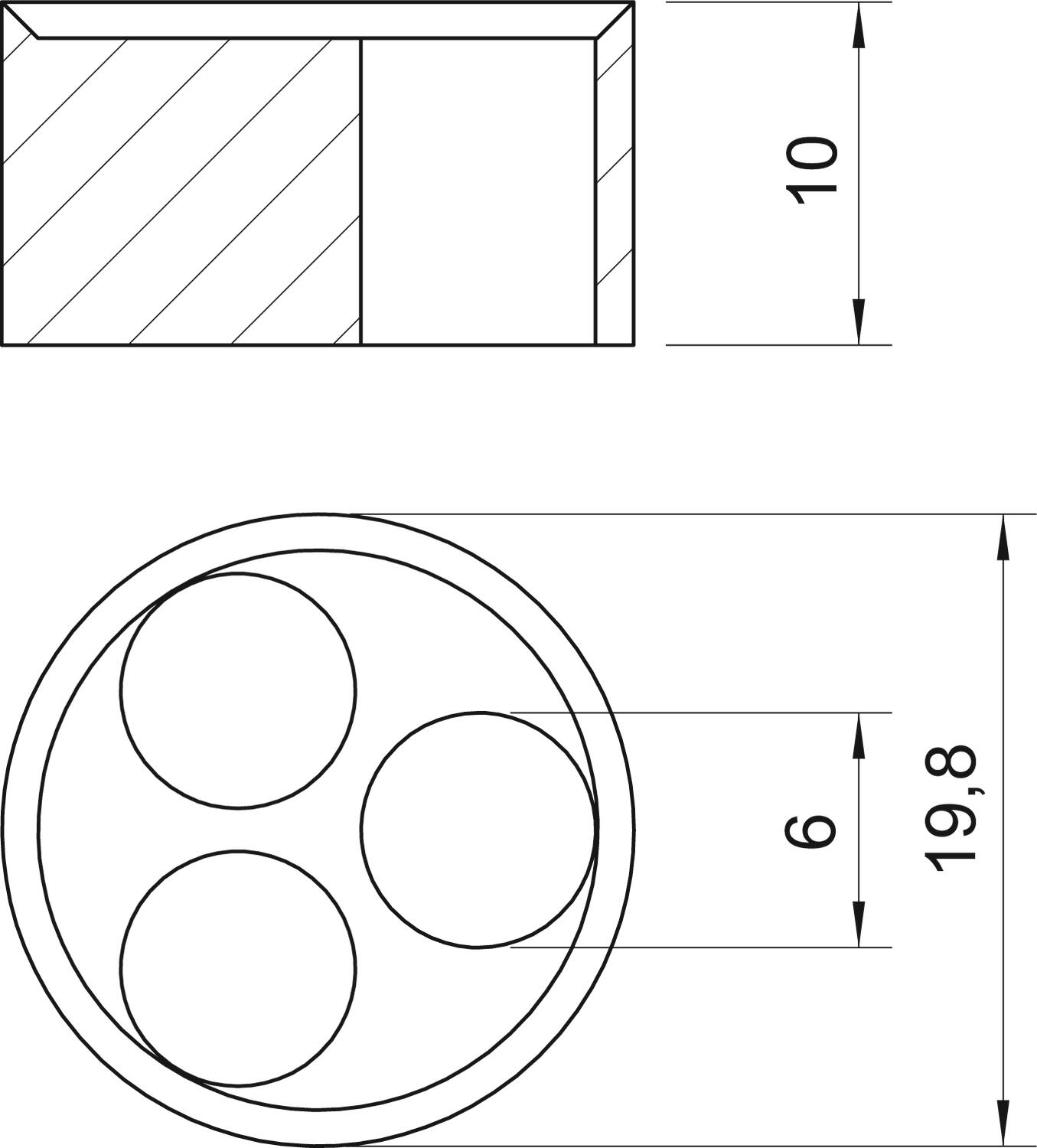

Technical data

Inner diameter	6 mm
Material	Rubber mixture
Number of drill holes	3
Suitable for metric thread dimension	25
Thickness	10 mm
Version for	Miscellaneous

All types

Types	Number of drill holes	Hole diameter	Dimension D1	Item no.	Quantity	SSU
107 C VM 20 2x4	2	4 mm	15.1 mm	2029672	piece	50 piece
107 C VM 20 4x5	4	5 mm	15.1 mm	2029675	piece	50 piece
107 C VM 20 2x6	2	6 mm	15.1 mm	2029677	piece	50 piece
107 C VM 25 5x4	5	4 mm	19.8 mm	2029679	piece	50 piece
107 C VM 25 3x6	3	6 mm	19.8 mm	2029682	piece	50 piece
107 C VM 25 2x6	2	6 mm	19.8 mm	2029685	piece	50 piece
107 C VM 25 3x7	3	7 mm	19.8 mm	2029688	piece	50 piece
107 C VM 25 2x8	2	8 mm	19.8 mm	2029690	piece	50 piece
107 C VM 32 2x8	2	8 mm	25.1 mm	2029693	piece	25 piece
107 C VM 32 4x8	4	8 mm	25.1 mm	2029696	piece	25 piece
