- Product description
-
Product description

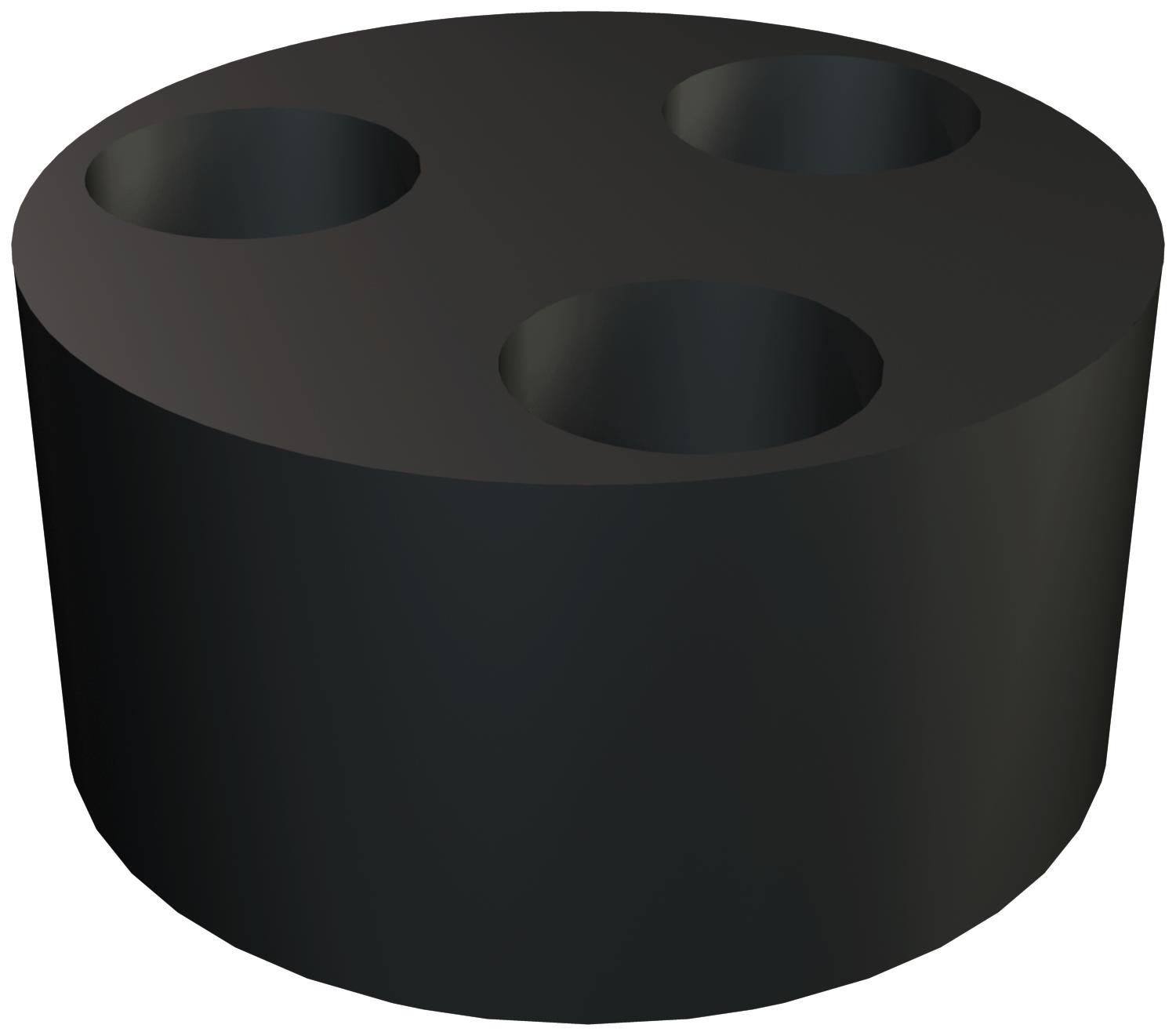

Use to insert multiple thin cables in the V-TEC VM cable glands, is replaced with the simple sealing ring of the cable gland.
- Technical data
-
Technical data

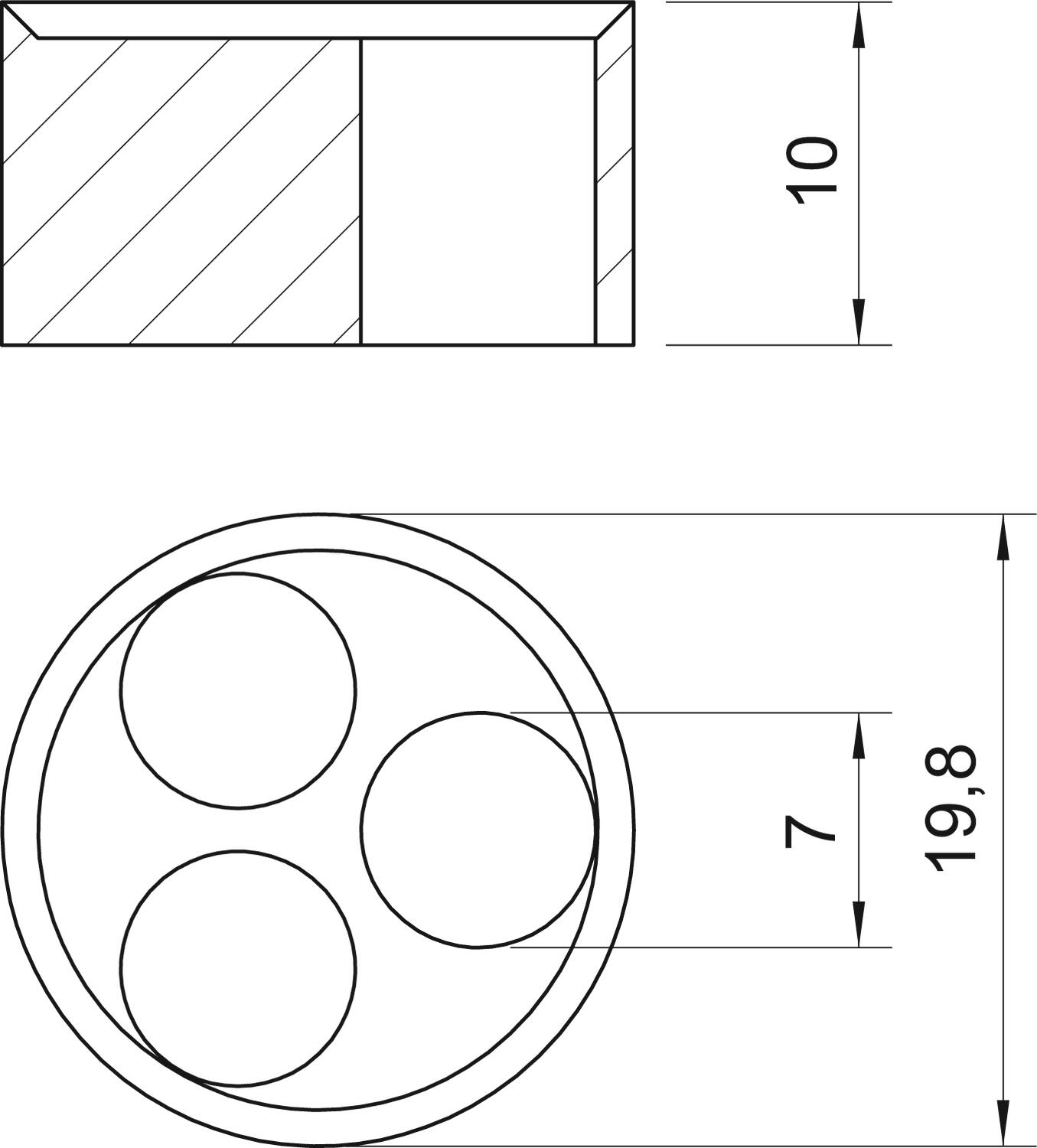

Colour Black Dimension VM25,3X7 Dimension D 7 mm Dimension D1 19,8 mm Dimension H 10 mm External diameter 19,8 mm Hole diameter 7 mm Inner diameter 7 mm Material Rubber mixture Number of drill holes 3 Suitable for metric thread dimension 25 Thickness 10 mm Version for Miscellaneous - All types
-
All types
- Downloads
-
Data sheet 107 C VM 25 3x7 / 2029688 , 0.21MB , pdfDeclaration of conformity 107 C VM 25 3x7 / 2029688 , 0.06MB , pdfREACH Declaration of conformity 107 C VM 25 3x7 / 2029688 , 0.12MB , pdfRoHS Declaration of conformity 107 C VM 25 3x7 / 2029688 , 0.12MB , pdfMounting instructions Mounting instructions, V-TEC VM.. ..x.. , 2.00MB , pdf
