Multiple sealing insert, PG

Item no. 2029650 | EAN 4012195824831

Product description
Product description
Use to insert multiple thin cables in the V-TEC cable glands, is replaced with the simple sealing ring of the cable gland.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Black

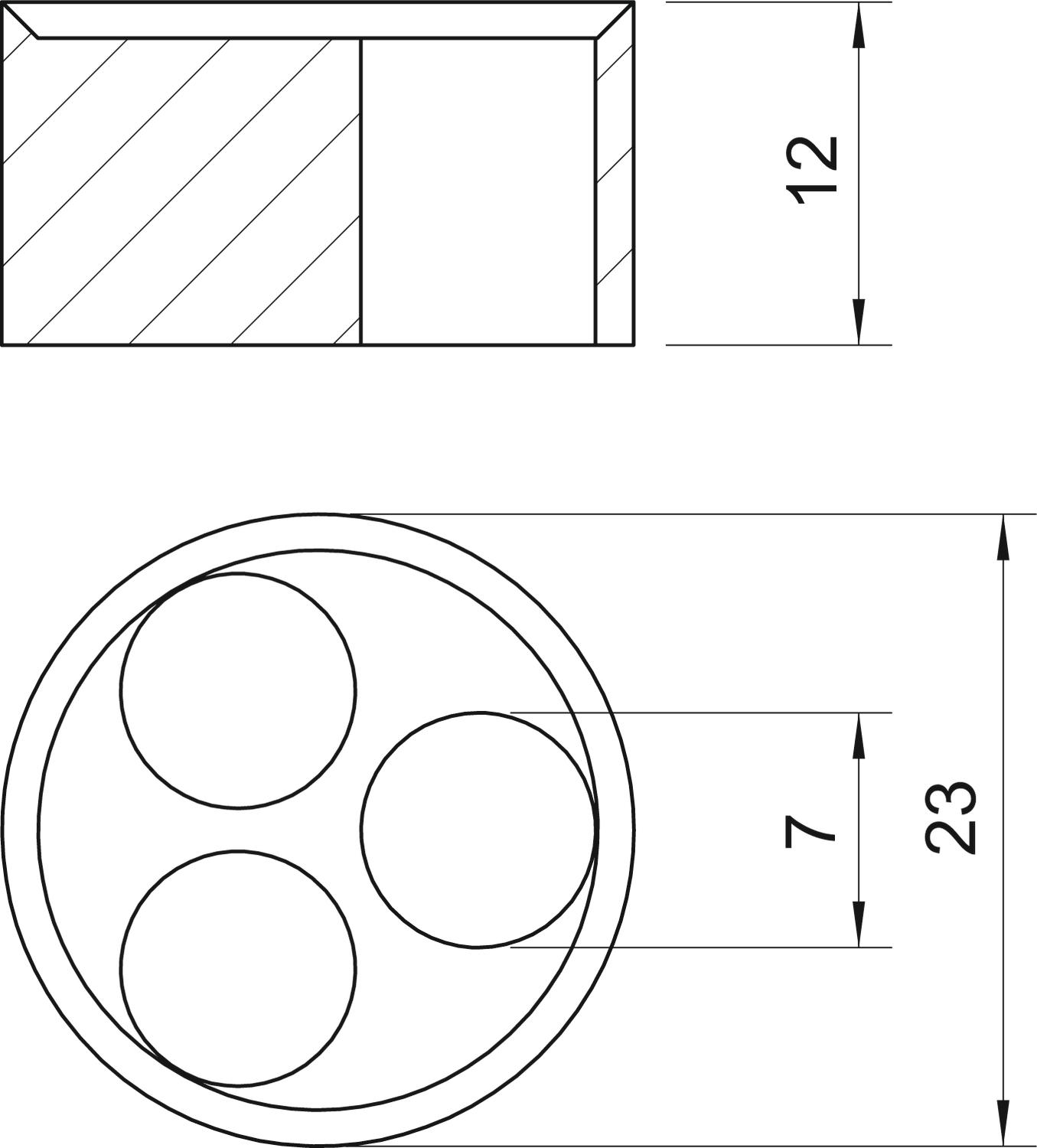

Dimension PG21,3X7
Dimension D 7 mm
Dimension D1 23 mm
Dimension H 12 mm
External diameter 23 mm
Hole diameter 7 mm
Inner diameter 7 mm
Material Rubber mixture
Number of drill holes 3
Screw for PG thread dimension 21
Thickness 12 mm
Version for Miscellaneous
All types

All types

Types Number of drill holes Hole diameter Dimension D1 Item no. Quantity SSU
107 C V 16 5x4 5 4 mm 17.5 mm 2029618
50 piece
107 C V 16 3x5 3 5 mm 17.5 mm 2029626
50 piece
107 C V 16 2x6 2 6 mm 17.5 mm 2029634
50 piece
107 C V 16 3x6 3 6.5 mm 17.5 mm 2029642
50 piece
107 C V 21 3x7 3 7 mm 23 mm 2029650
25 piece
107 C V 21 2x8 2 8 mm 23 mm 2029669
25 piece
