- Product description
-

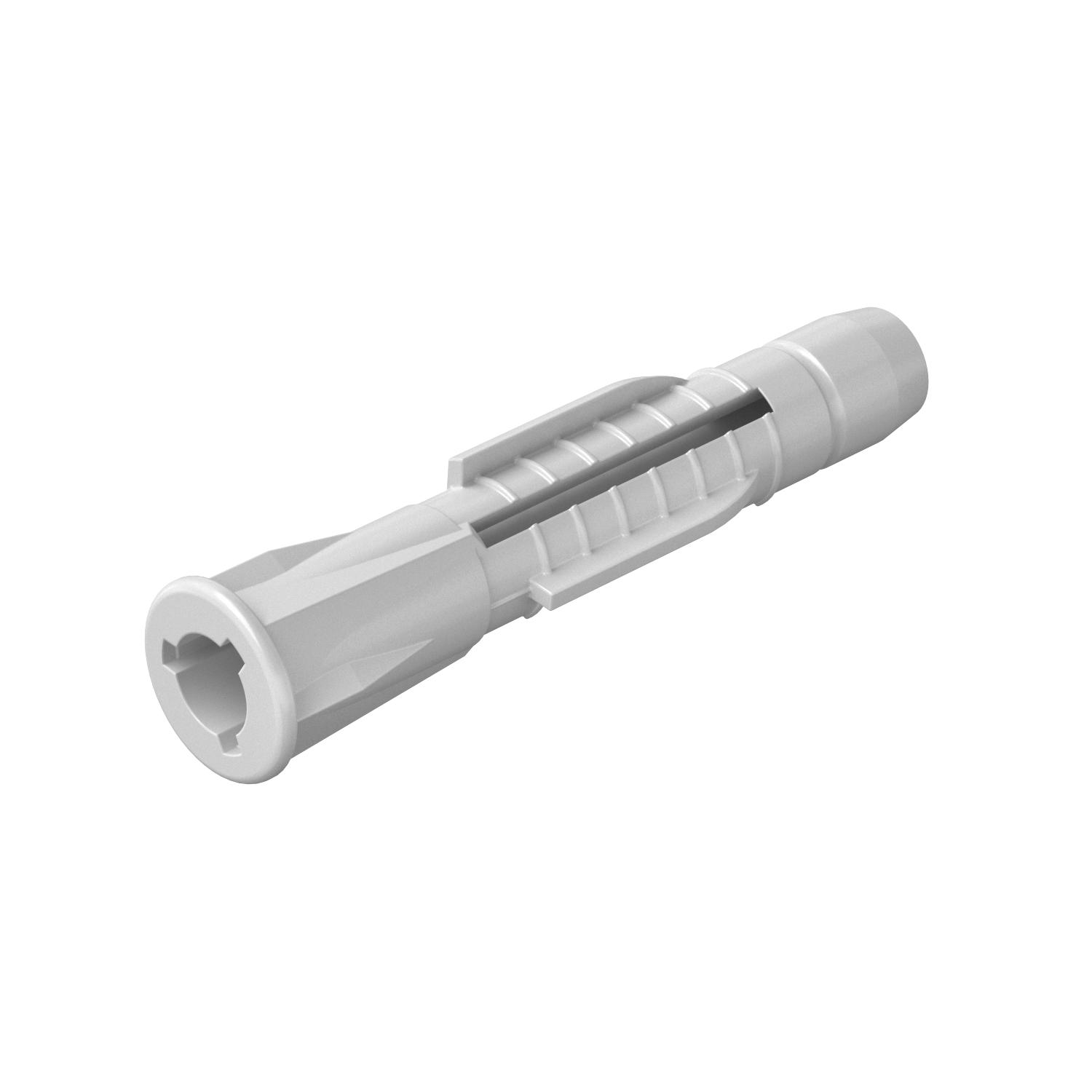

Product description
Also suitable as a cavity anchor, with collar to prevent slipping. 3 tabs take up the torque.
Required minimum screw length = anchor length + component thickness + 1 x screw Ø.
Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.
Our safety value recommendation: 5x
- Technical data
-
Technical data

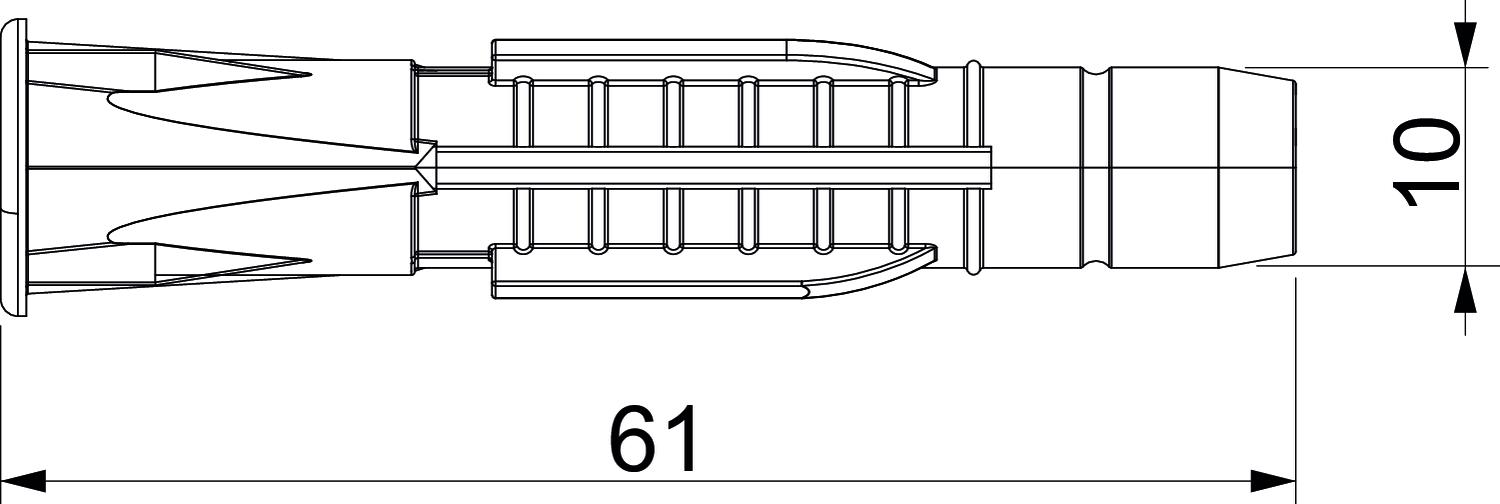

Colour Light grey Diameter 10 mm Dimension 10x61 Dimension D 10 mm Dimension L 61 mm Drill hole diameter, min. 10 mm Material Polyamide Suitable for fastening with cable ties no Suitable for hexagonal wood screw yes Version for Universal anchor With bolts no Wood screws 7-8 - All types
- Downloads
-
Data sheet 910 AZK 10x61 / 2348126 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdf
