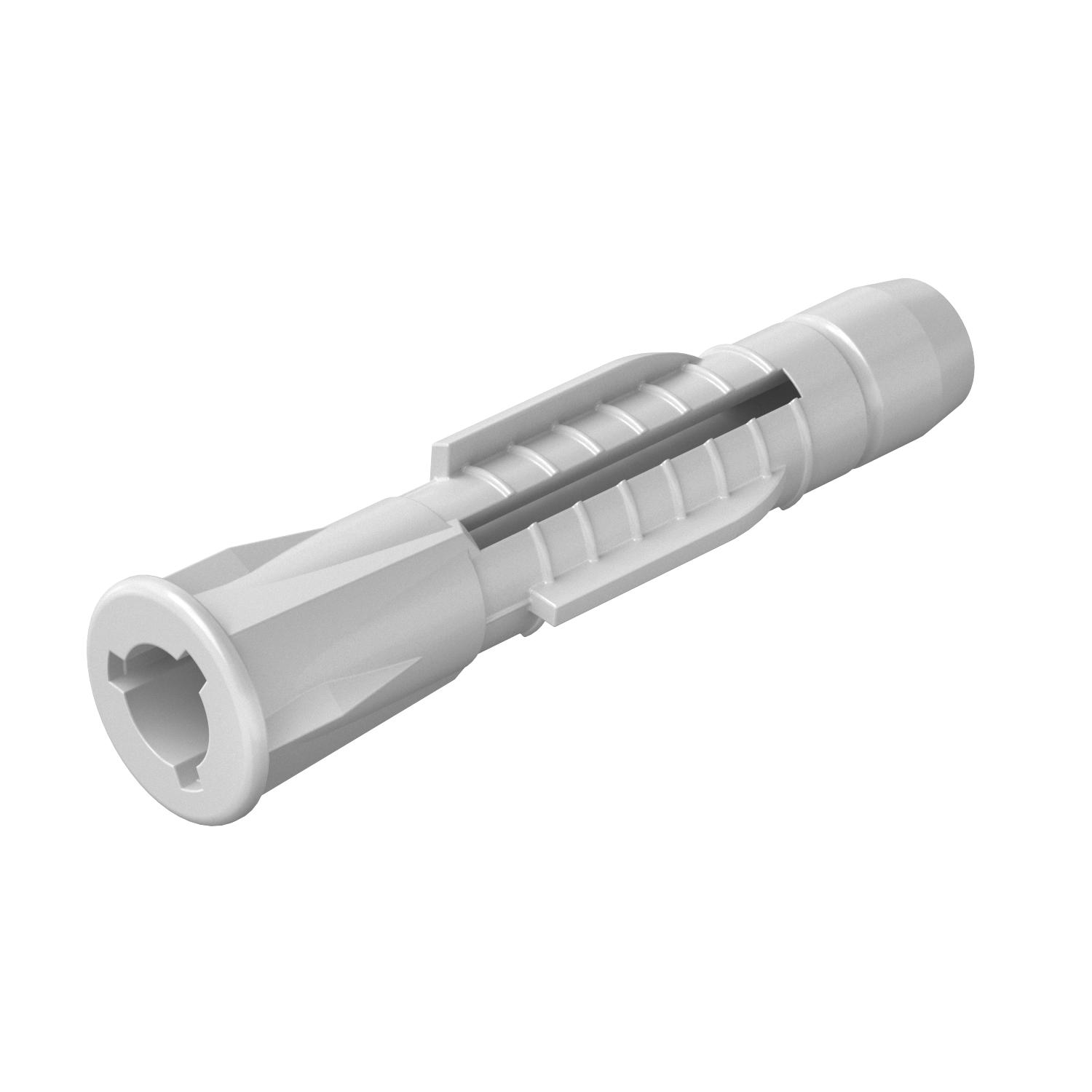

Multipurpose anchor

Item no. 2348128 | EAN 4012196788712

Product description
Product description
Also suitable as a cavity anchor, with collar to prevent slipping. 3 tabs take up the torque.

Required minimum screw length = anchor length + component thickness + 1 x screw Ø.

Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.

Our safety value recommendation: 5x
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey
Diameter 12 mm

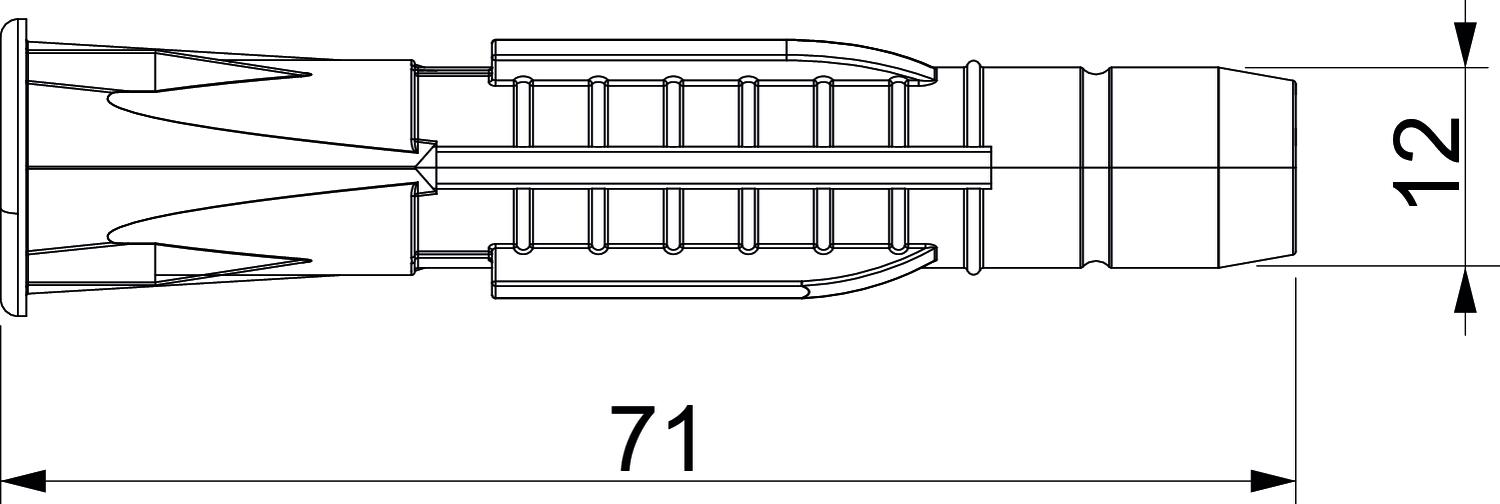

Dimension 12x71
Dimension D 12 mm
Dimension L 71 mm
Drill hole diameter, min. 12 mm
Material Polyamide
Suitable for fastening with cable ties no
Suitable for hexagonal wood screw yes
Version for Universal anchor
With bolts no
Wood screws 8-10
All types

All types

Types Length Diameter Drill hole diameter, min. Item no. Quantity SSU
910 AZK 5x31 30 mm 5 mm 5 mm 2348120
100 piece
910 AZK 6x38 - 6 mm 6 mm 2348122
100 piece
910 AZK 8x51 - 8 mm 8 mm 2348124
100 piece
910 AZK 10x61 - 10 mm 10 mm 2348126
50 piece
910 AZK 12x71 - 12 mm 12 mm 2348128
25 piece
