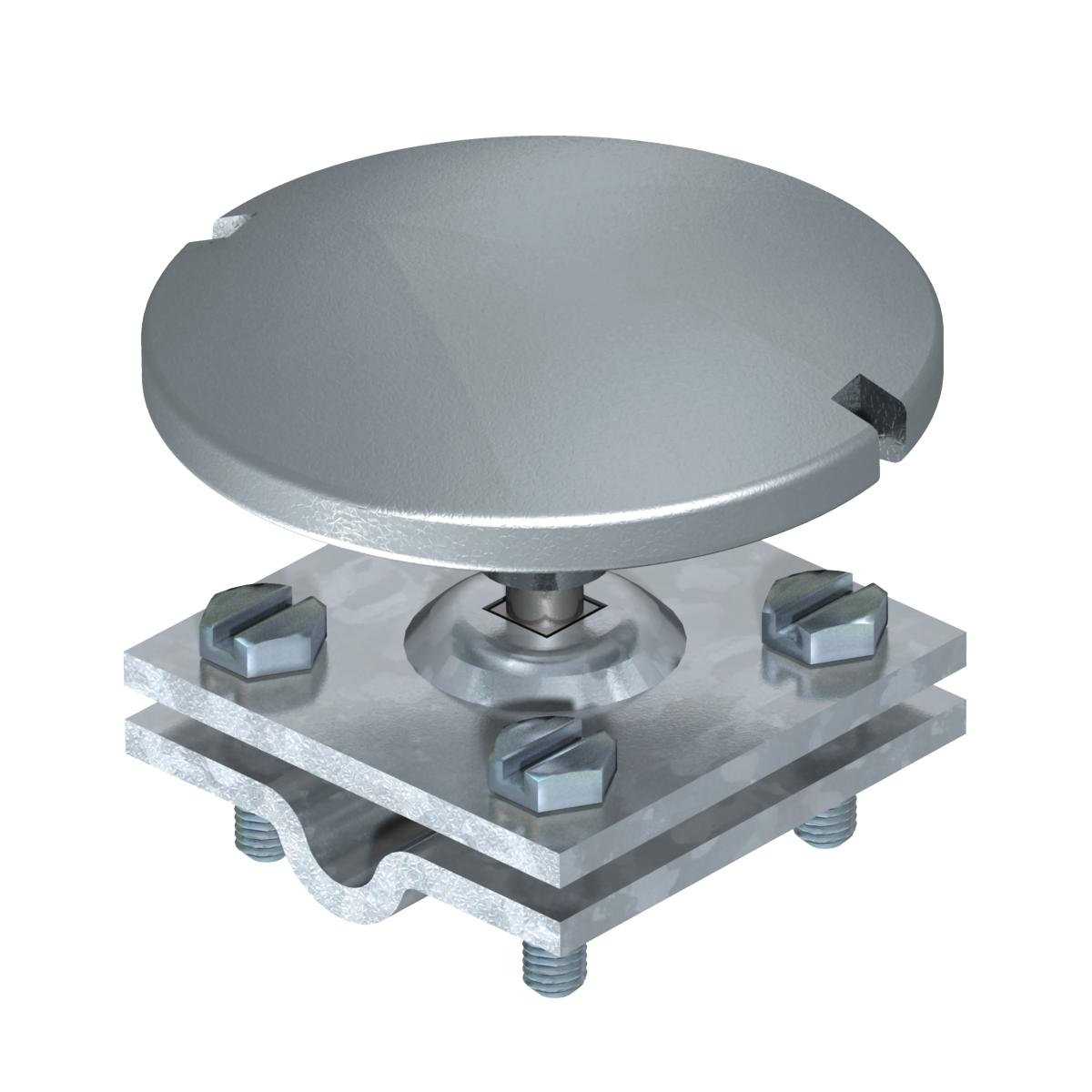

Mushroom-shaped air-termination with connectors

Item no. 5405769 | EAN 4012195428718

Product description

Product description

• Mushroom-shaped air-termination from aluminium

• With pre-mounted cross-piece and hexagonal bolt M8 x 25, hot-dip galvanised steel

• For round conductor Rd 8-10 and flat conductor FL 30
Technical data

Technical data

Connection Round conductor

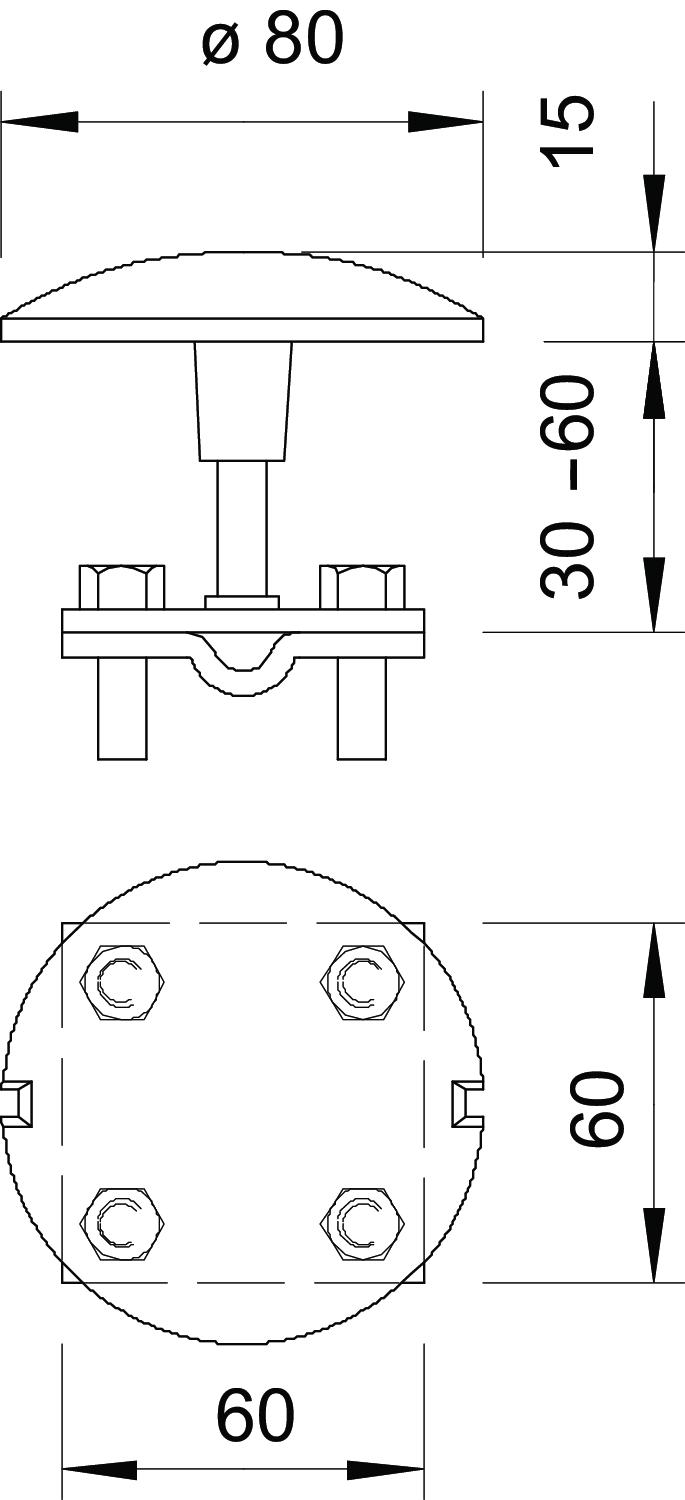

Dimension 50-60mm
Dimension d min. 80 mm
Fit Rd 8-10/ FL30 mm
Material Steel
Surface Hot-dip galvanised
Version for Mushroom-shaped interceptor
All types

All types

Types Item no. Quantity SSU
128 F 5405769
5 piece
