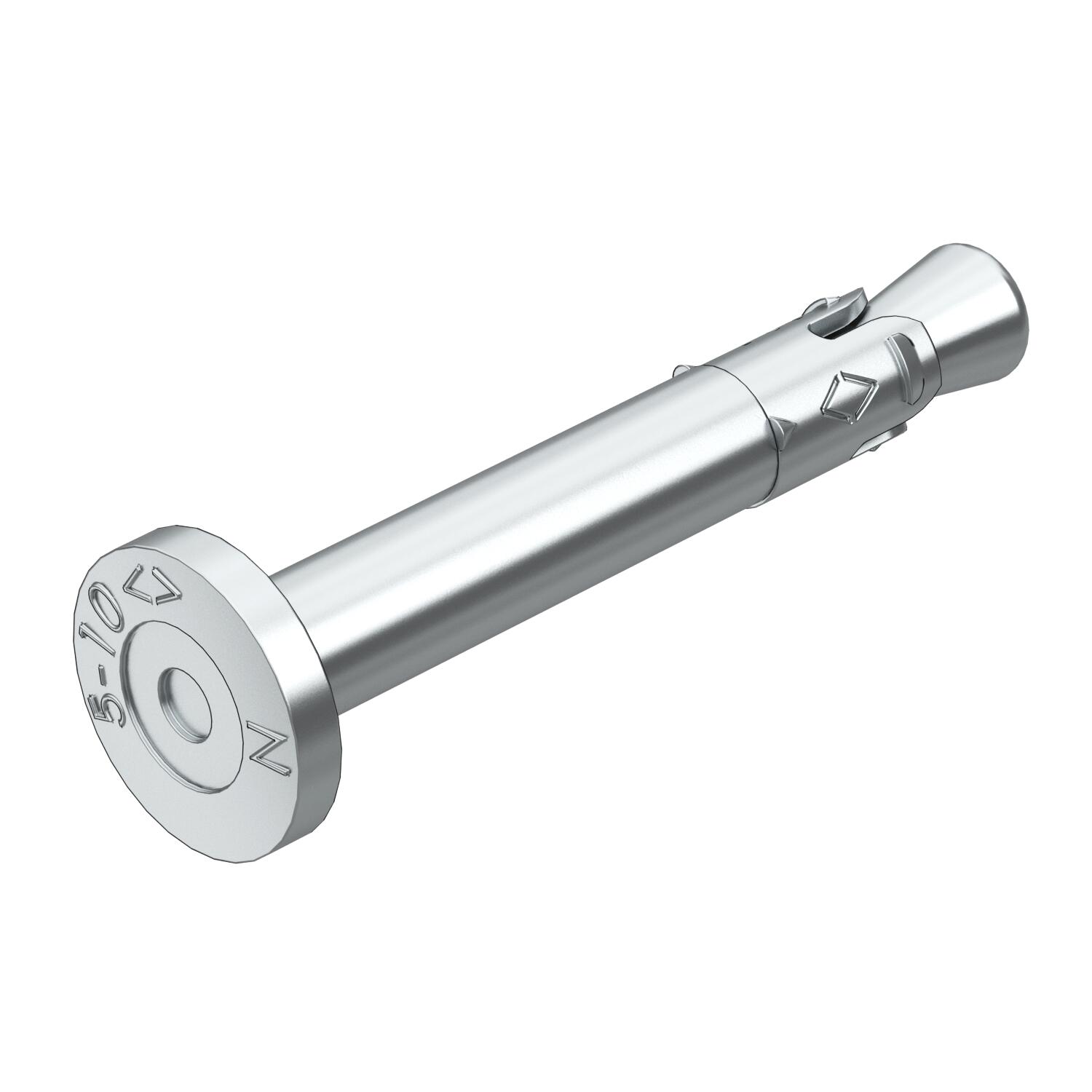

Nail anchor N-K with nail head
Item no. 3498390 | EAN 4012196411924
- Product description
-
Product description
The nail anchor N-K can be used for multiple fastenings of non-load-bearing systems and in cracked and non-cracked concrete, thereby combining the benefits of a bolt tie with even easier mounting. The nail anchor only needs to be hammered into the drill hole. When the load occurs, the nail anchor spreads itself and bolts itself in the drill hole.
-
- Technical data
-
Technical data

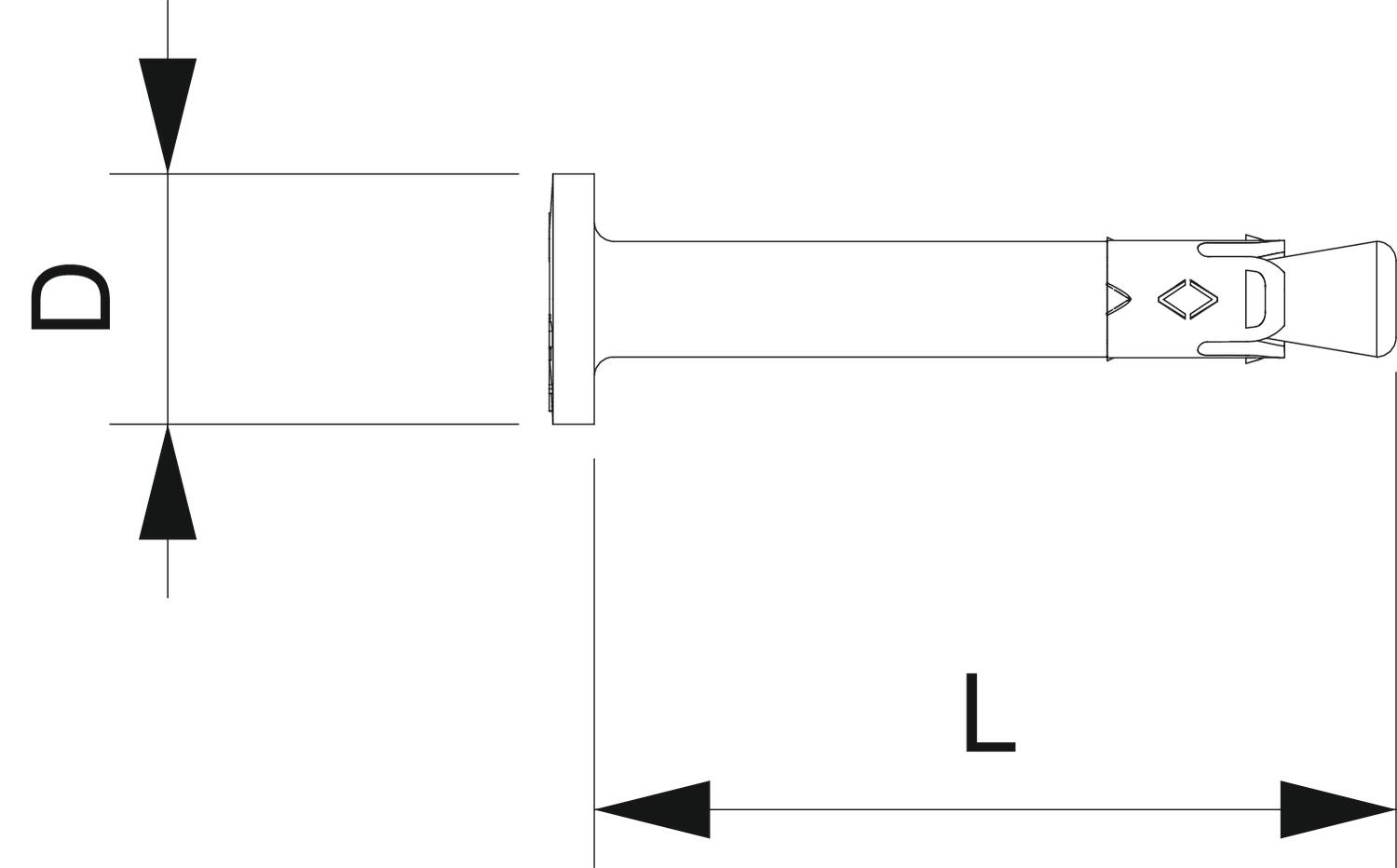

Approvals available yes Clamping range, max. 10 mm Clamping range, min. 5 mm Clamping strength 5 mm Dimension 6x44mm Dimension d min. 13 mm Dimension L 44 mm Drill hole depth 40 mm Drill hole diameter, min. 6 mm Fastening unit Miscellaneous Length 44 mm Material Steel Mounting type, anchor, tie Push-through mounting Self-drilling no Suitable for material Concrete Surface Electrogalvanized Version for Lightning strike - All types
- Downloads
-
Data sheet N-K 6-5-10/44 / 3498390 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity N-K 6-5-10/44 / 3498390 , 0.25MB , pdfREACH Declaration of conformity N-K 6-5-10/44 / 3498390 , 0.12MB , pdfRoHS Declaration of conformity N-K 6-5-10/44 / 3498390 , 0.12MB , pdfApproval certificate European Technical Approval, MKT nail tie N , 0.09MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, nail tie N; N-K , 0.98MB , pdf
