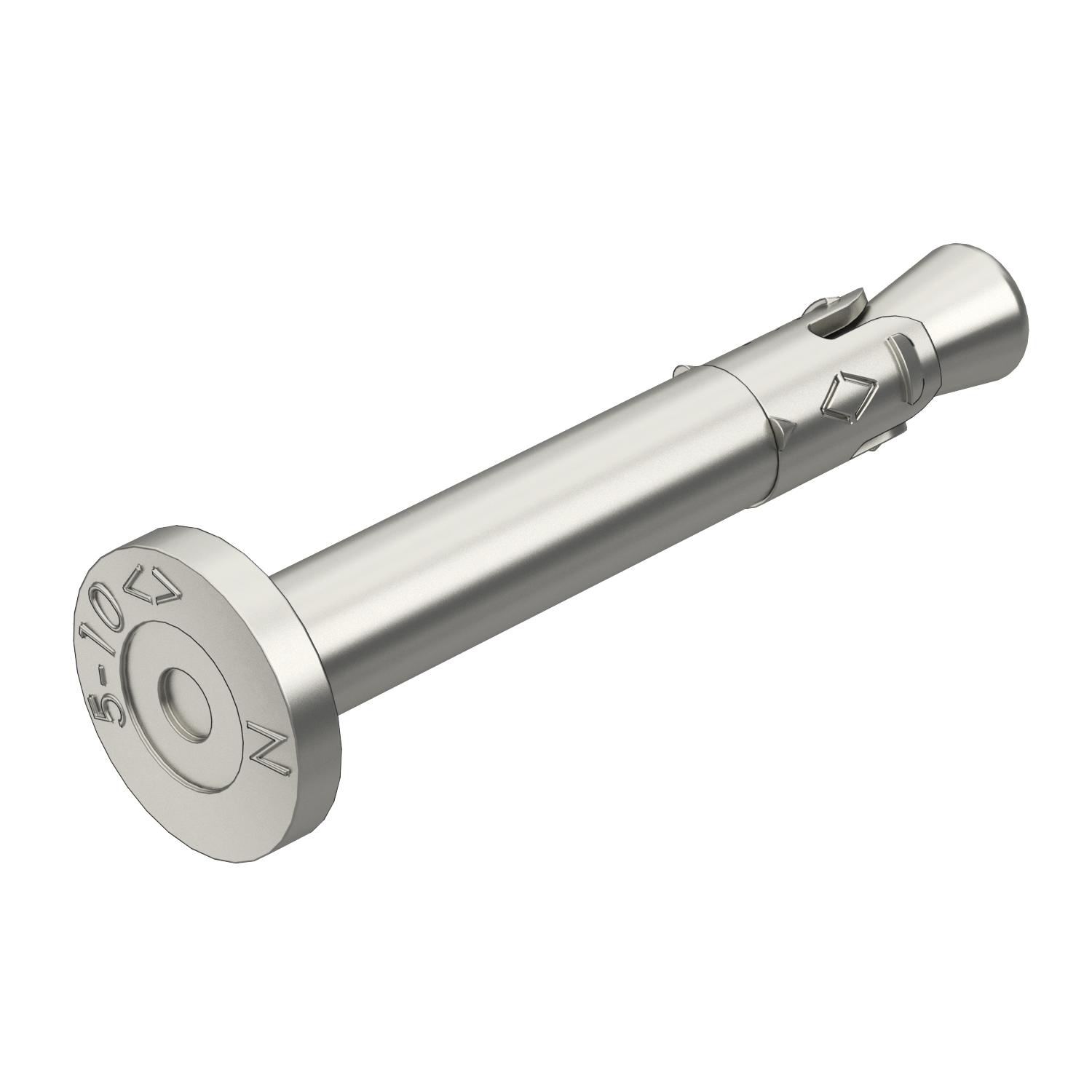

Nail anchor N-K with nail head, V4A
Item no. 3498393 | EAN 4012196429578
- Product description
-
Product description
The nail anchor N can be used for multiple fastenings of non-load-bearing systems, indoors and outdoors, in cracked and non-cracked concrete, thereby combining the benefits of a bolt tie with even easier mounting. The nail anchor only needs to be hammered into the drill hole. When the load occurs, the nail anchor spreads itself and bolts itself in the drill hole.
-
- Technical data
-
Technical data

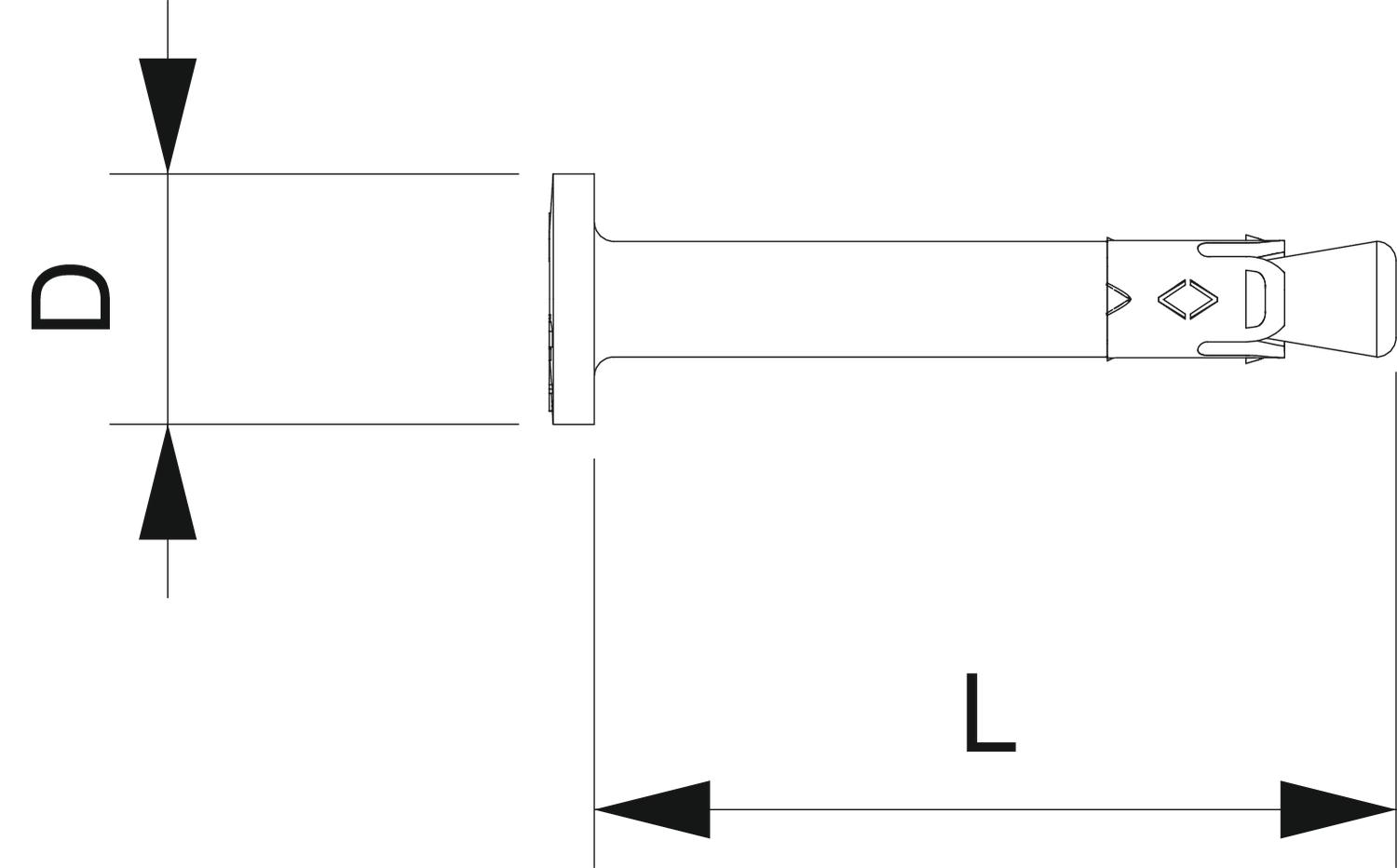

Approvals available yes Clamping strength 5 mm Dimension 6x44mm Dimension d min. 13 mm Dimension L 44 mm Drill hole depth 40 mm Drill hole diameter, min. 6 mm Fastening unit Miscellaneous Length 44 mm Material Stainless steel Mounting type, anchor, tie Push-through mounting Self-drilling no Suitable for material Concrete Surface Bright, treated Version for Lightning strike - All types
