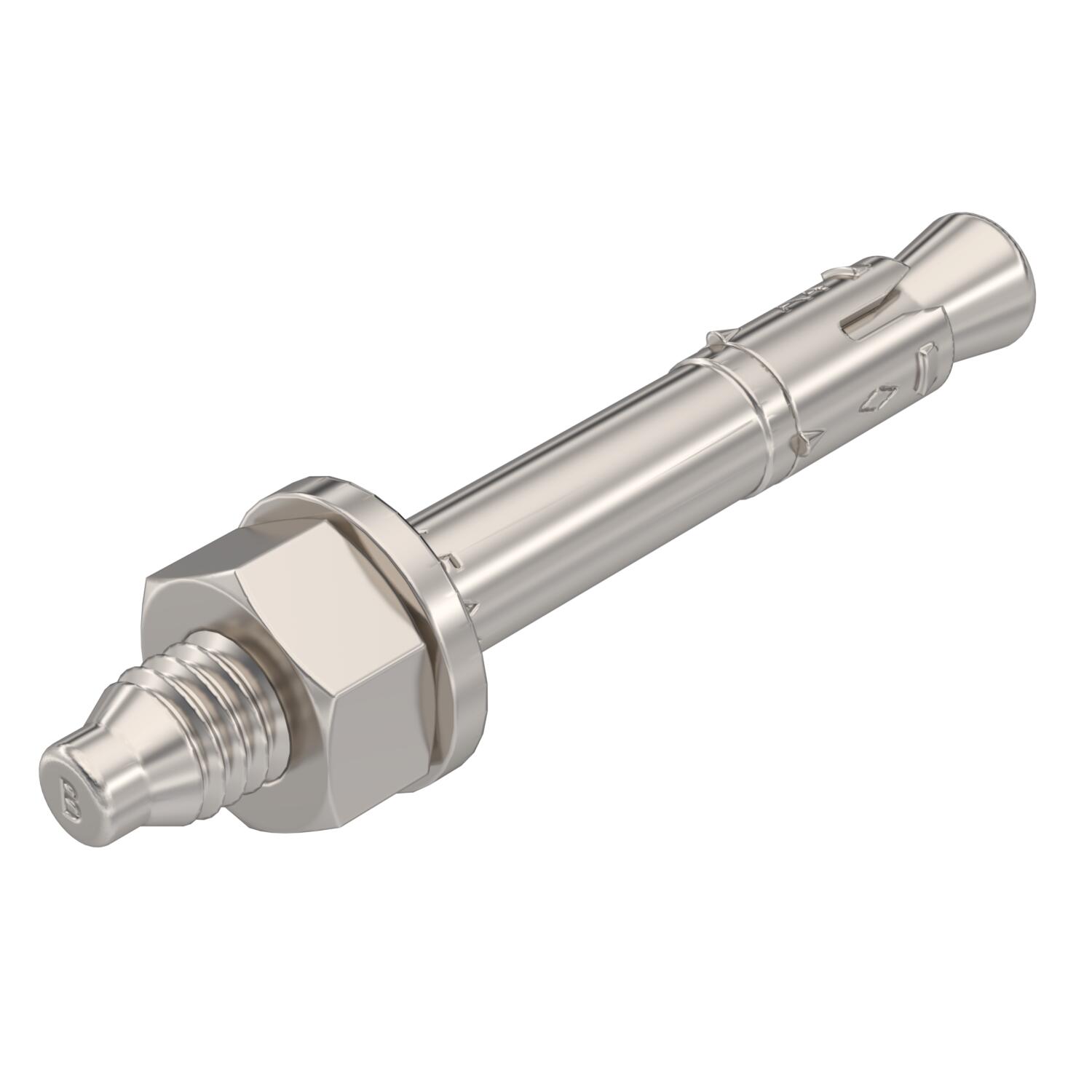

Nail anchor N with thread, V4A
Item no. 3498399 | EAN 4012196429585
- Product description
-
Product description
The nail anchor N can be used for multiple fastenings of non-load-bearing systems, indoors and outdoors, in cracked and non-cracked concrete, thereby combining the benefits of a bolt tie with even easier mounting. The nail anchor only needs to be hammered into the drill hole. It is not necessary to apply torque subsequently. When the load occurs, the nail anchor spreads itself and bolts itself in the drill hole.
-
- Technical data
-
Technical data
Approvals available yes Clamping strength 5 mm Dimension 6x49mm Dimension L 49 mm Drill hole depth 40 mm Drill hole diameter, min. 6 mm Fastening unit Miscellaneous Length 49 mm Material Stainless steel Mounting type, anchor, tie Push-through mounting Self-drilling no Suitable for material Concrete Surface Bright, treated Thread M6 Thread metric 6 Version for Lightning strike WAF 10 - All types
- Downloads
-
Data sheet N 6-5/49 A4 / 3498399 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity N 6-5/49 A4 / 3498399 , 0.10MB , pdfApproval certificate European Technical Approval, MKT nail tie N , 0.09MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, nail tie N; N-K , 0.98MB , pdf
