Nail-Fix, with nail

Item no. 2222841 | EAN 4012195705734

Item no. / Types

Nail length

For nail diameter

Product description

Product description

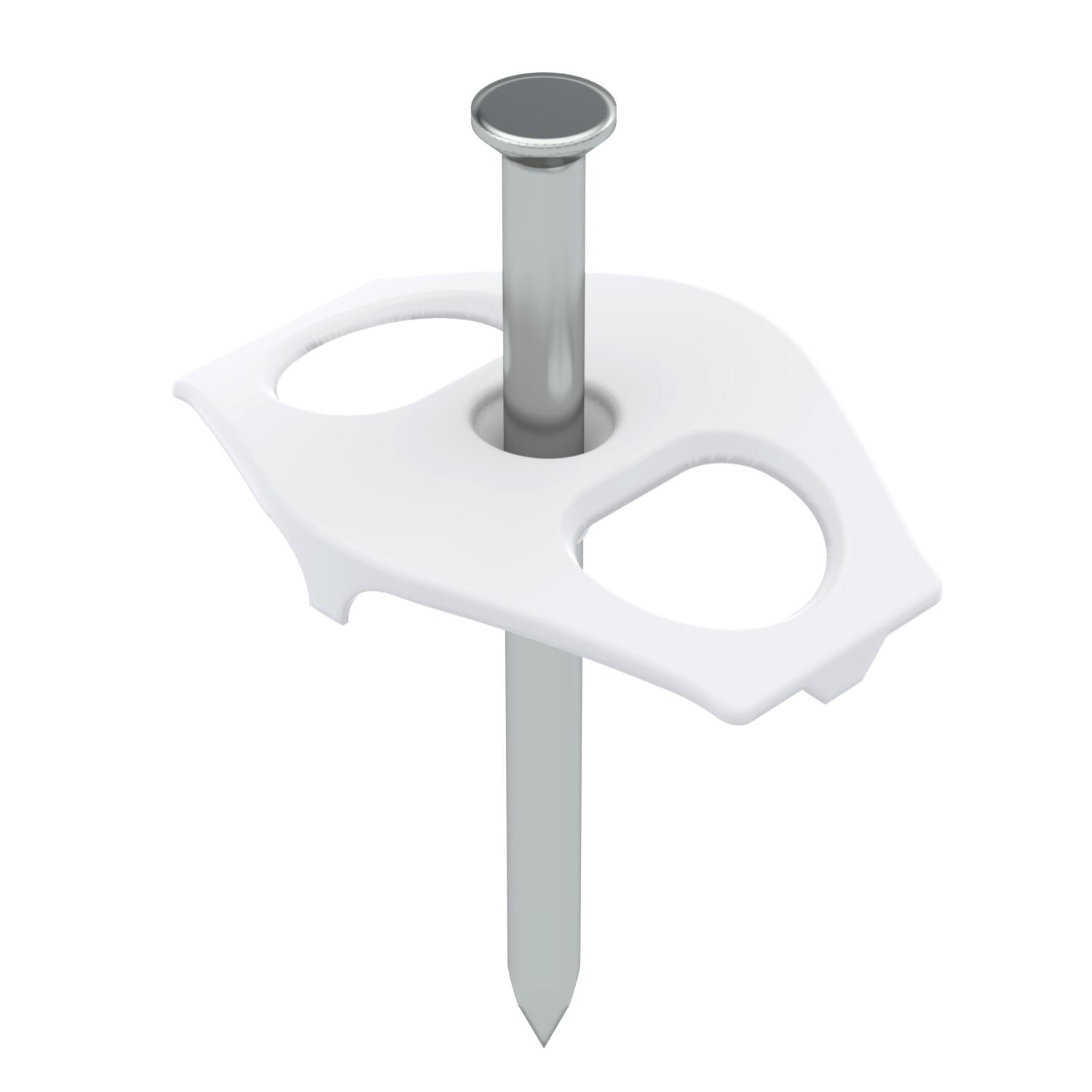

With pre-mounted, galvanised steel nail Ø 3 mm or 3.5 mm to fix cables in masonry slots and on masonry for one or two cables NYM 3 x 1.5/2.5 mm² or one or two cables NYM 5 x 1.5/2.5 mm².

Technical data

Technical data

Colour	Transparent

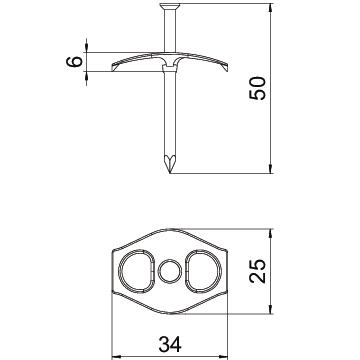

Dimension	3,5x50mm
Double clip	yes
For nail diameter	3,5 x 50
Halogen-free	yes
Hardened	no

Impact-resistant	no
Material	Polypropylene
Nail length	50 mm
Shape	Rectangular (for flat conductor)
With nail	yes

All types

All types

Types	Nail length	For nail diameter	Item no.	Quantity	SSU
1996 40	40 mm	3 x 40	2222833	piece	100 piece
1996 50	50 mm	3,5 x 50	2222841	piece	100 piece
1996 60	60 mm	3,5 x 60	2222868	piece	100 piece
1996 70	70 mm	3,5 x 70	2222876	piece	100 piece
