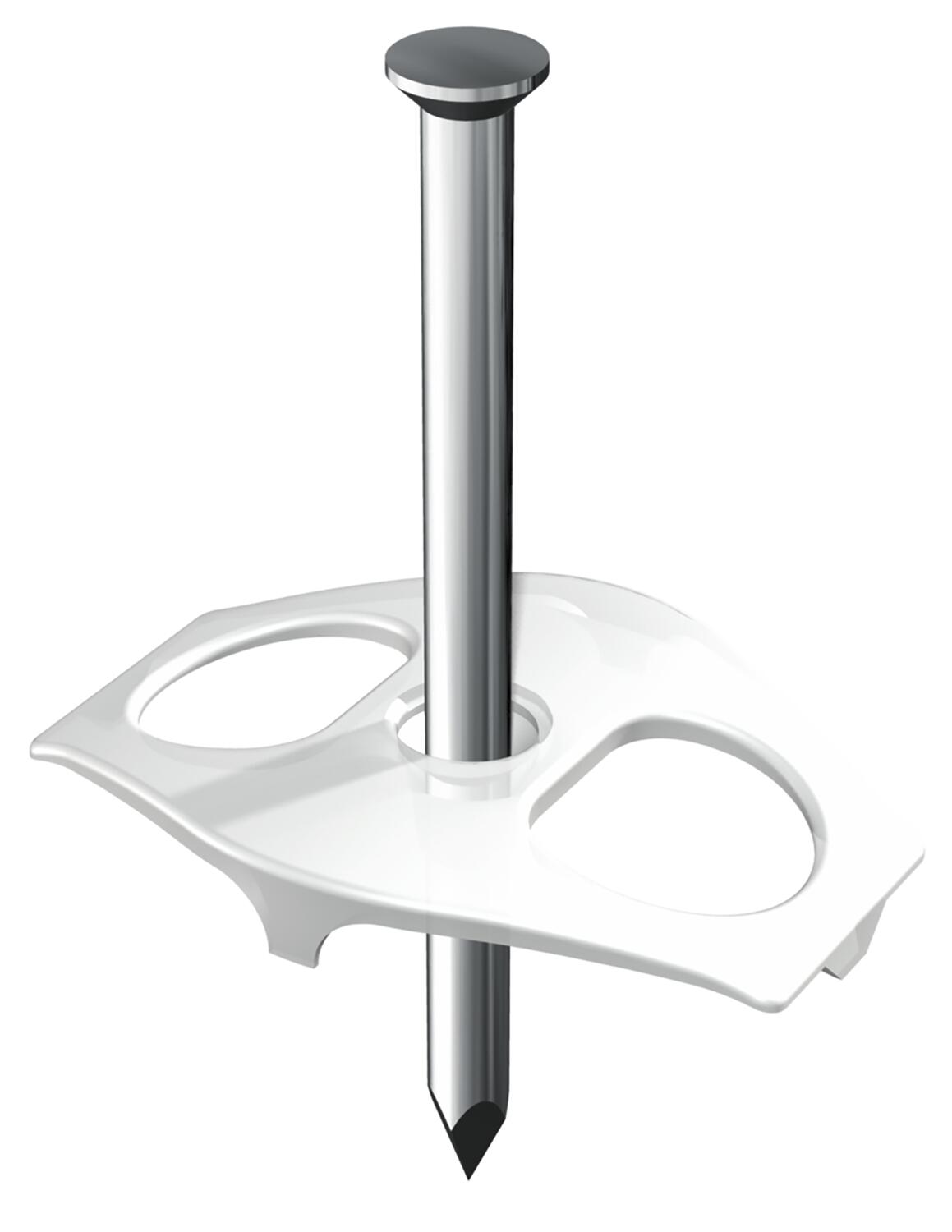

Nail-Fix, with nail

Item no. 2222876 | EAN 4012195509837

Product description

Product description

With pre-mounted, galvanised steel nail Ø 3 mm or 3.5 mm to fix cables in masonry slots and on masonry for one or two cables NYM 3 x 1.5/2.5 mm² or one or two cables NYM 5 x 1.5/2.5 mm².
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Transparent

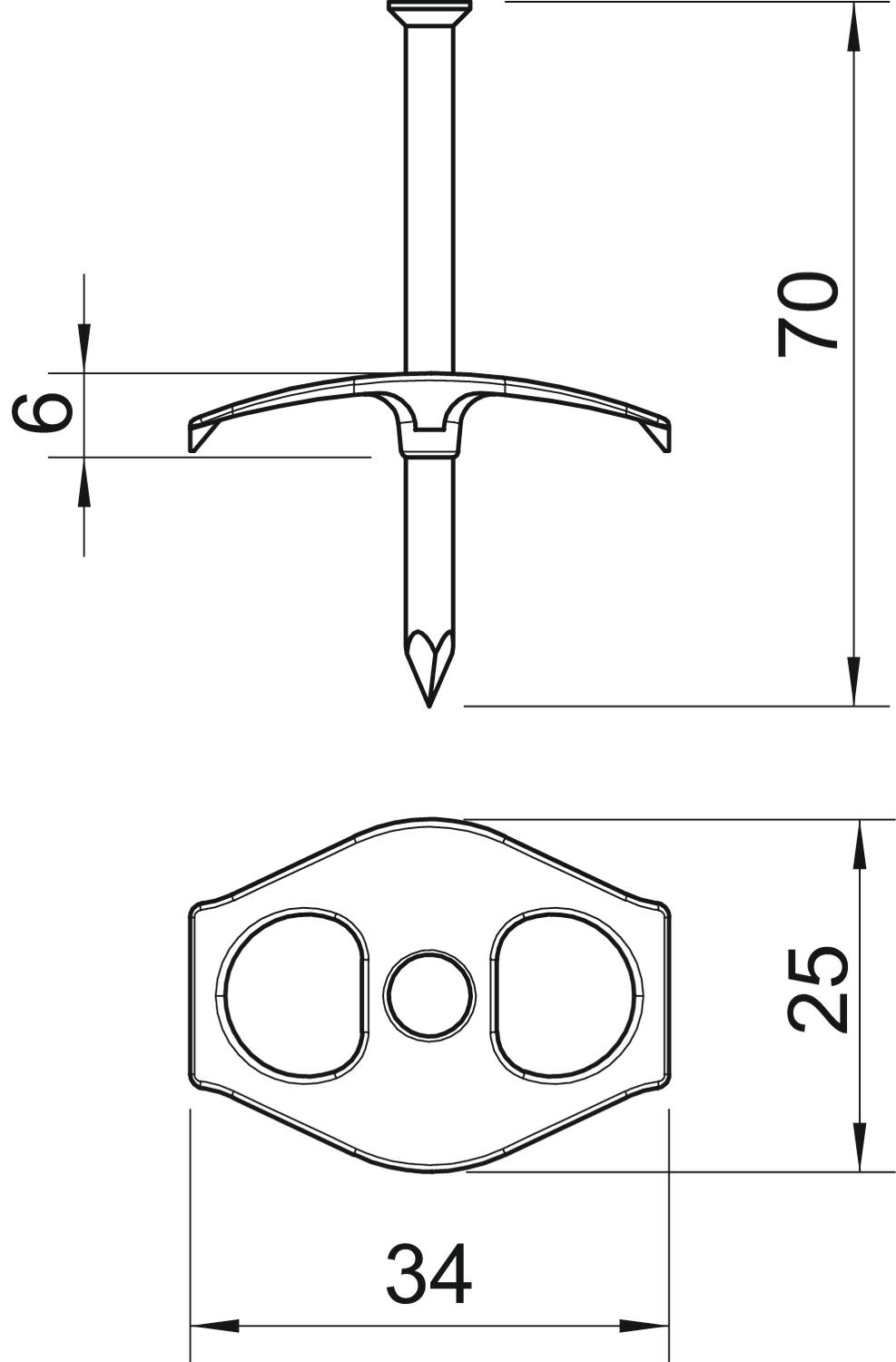

Dimension 3,5x70mm
Double clip yes
For nail diameter 3,5 x 70
Halogen-free yes
Hardened no
Impact-resistant no
Material Polypropylene
Nail length 70 mm
Shape Rectangular (for flat conductor)
With nail yes
All types

All types

Types Nail length For nail diameter Item no. Quantity SSU
1996 40 40 mm 3 x 40 2222833
100 piece
1996 50 50 mm 3,5 x 50 2222841
100 piece
1996 60 60 mm 3,5 x 60 2222868
100 piece
1996 70 70 mm 3,5 x 70 2222876
100 piece
