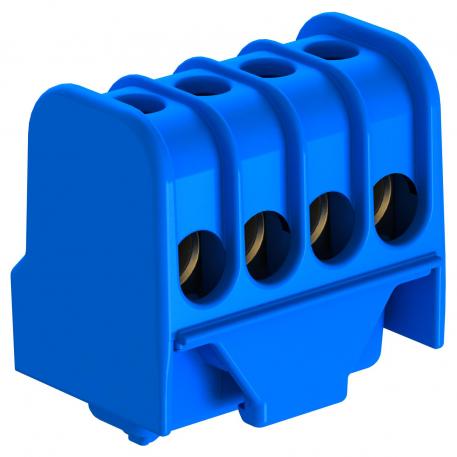

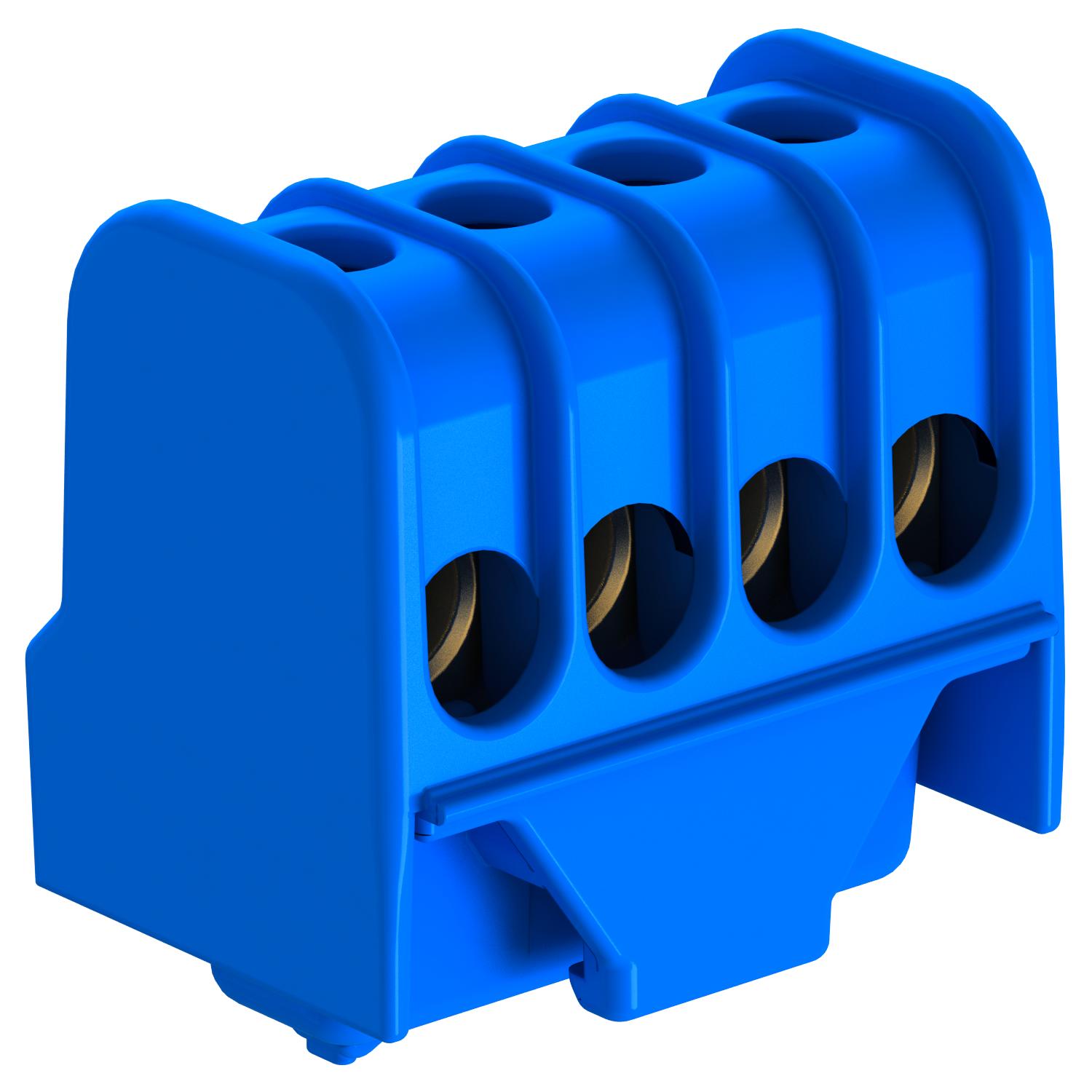

Neutral conductor terminal, with screw contacts, 4 terminals | 6 | 16

Neutral conductor terminal, with screw contacts, 4 terminals

Item no. 2016255 | EAN 4012196474226

Item no. / Types	2016255 / KL-DBN4x16BL

Nominal cross-section, min.	6 mm²

Nominal cross-section, max.	16 mm²

Product description

Product description

Neutral conductor connection terminal, brass, steel screws, electrogalvanised and transparently passivated, nominal cross-section 6 ÷ 16 mm², nominal voltage 400 V, 1-pole, with terminal sockets, max. connectable conductors per terminal 4 x 16 mm², 4 x 10 mm², 8 x 6 mm² or 12 x 4 mm².

Technical data

Technical data

Closing plate required	no
Colour	Blue
Connectable conductor cross-section, single-wire, max.	16 mm²
Connectable conductor cross-section, single-wire, min.	4 mm²
Connection position	Side
Cross-section	max. connectable conductors per terminal max. 4 x 16 mm², 4 x 10 mm², 8x6 mm² or 12 x 4 mm² mm²
Dimension	4x16mm²
Insulation material	Thermoplast

Material	Polyamide
Nominal cross-section, max.	16 mm²
Nominal cross-section, min.	6 mm²
Nominal current	76 A
Nominal voltage	400 V
Number of screwless terminals per pole	1
Pole number	1
Version of electrical connection 1	Screw connection
