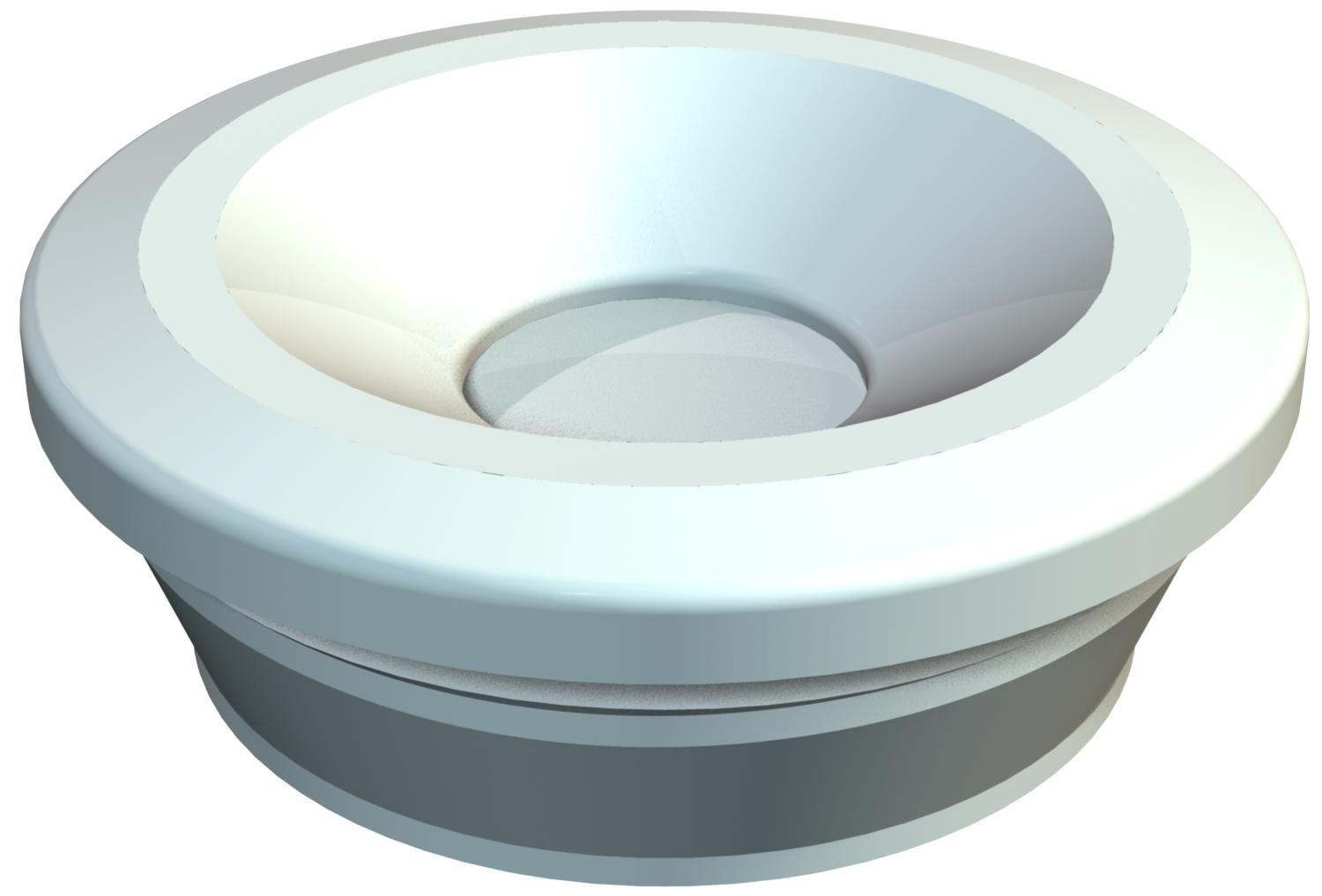

Nipple 89, light grey

Item no. 2012030 | EAN 4012195156079

7 mm
13 mm
PG 11
Product description

Product description

Closed entry nipple with perforation membrane for cable diameters 7‒13 mm. Ideal for simple cable routing in housings or through thin sheet metal.
Required hole diameter 18.5‒19 mm, wall thickness max. 1.8 mm.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54

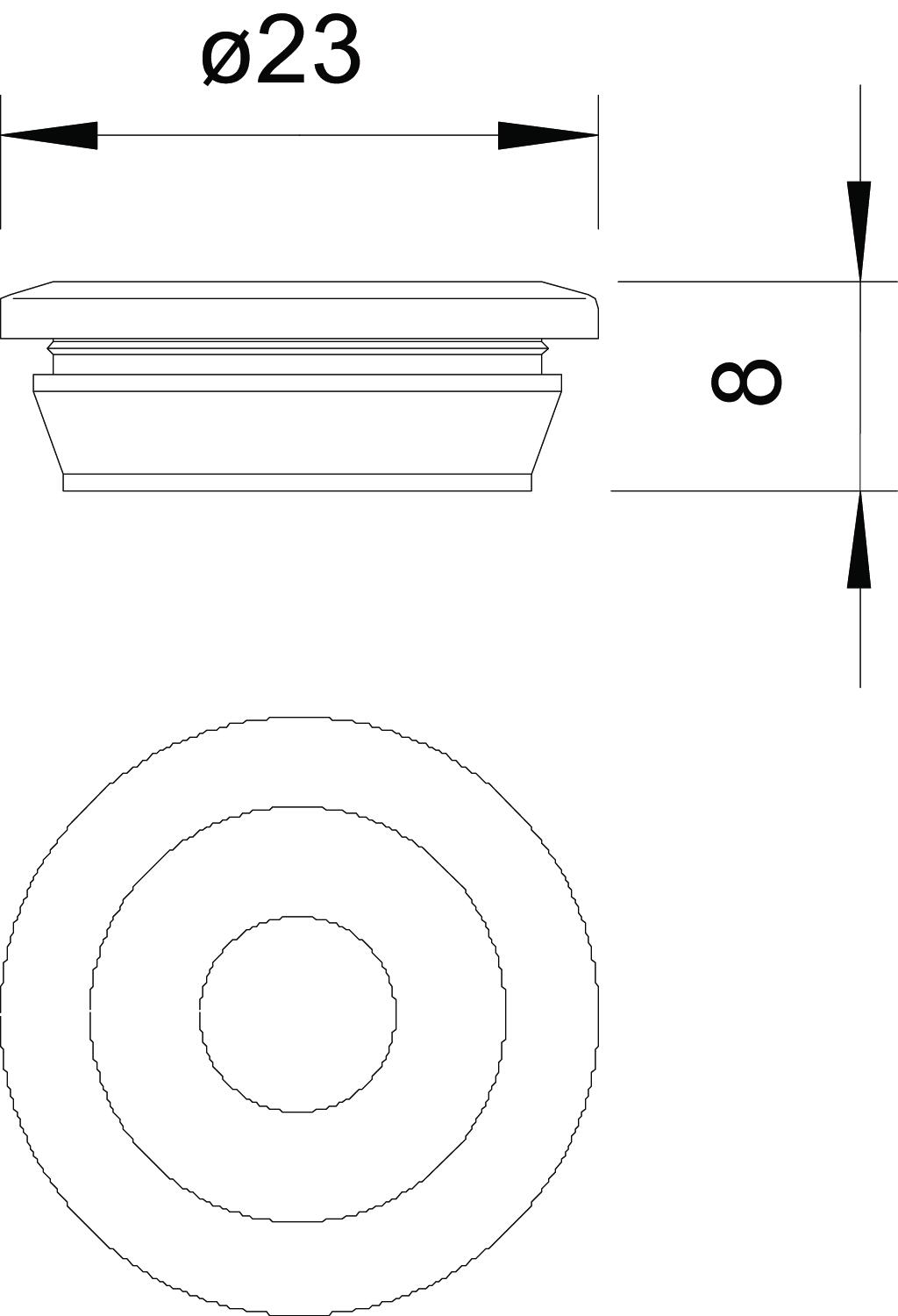

Technical data

Technical data

Colour Light grey; RAL 7035
Dimension Ø7-13mm
Dimension t 1,8 mm
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
for diameter, max. 13 mm
for diameter, min. 7 mm
for wall thickness, max. 1,8
for wall thickness, min. 1,8
Halogen-free yes
Material Ethylene vinyl acetate
Nominal size PG 11
Size PG 11
Version for Closed
All types

All types

Types for diameter, min. for diameter, max. Size Item no. Quantity SSU
89 7 mm 13 mm PG 11 2012030
100 piece
89 LoG 7 mm 13 mm PG 11 2012065
5000 piece
89 3MM NUT 7 mm 13 mm PG 11 2012081
2000 piece
89 RW 7 mm 13 mm PG 11 2012103
100 piece
89 SW 7 mm 13 mm PG 11 2012146
100 piece
