Noise limit barrier 7LSB

Item no. 6288650 | EAN 4012195148791

6288650 / 7LSB
300 mm
Product description
Product description

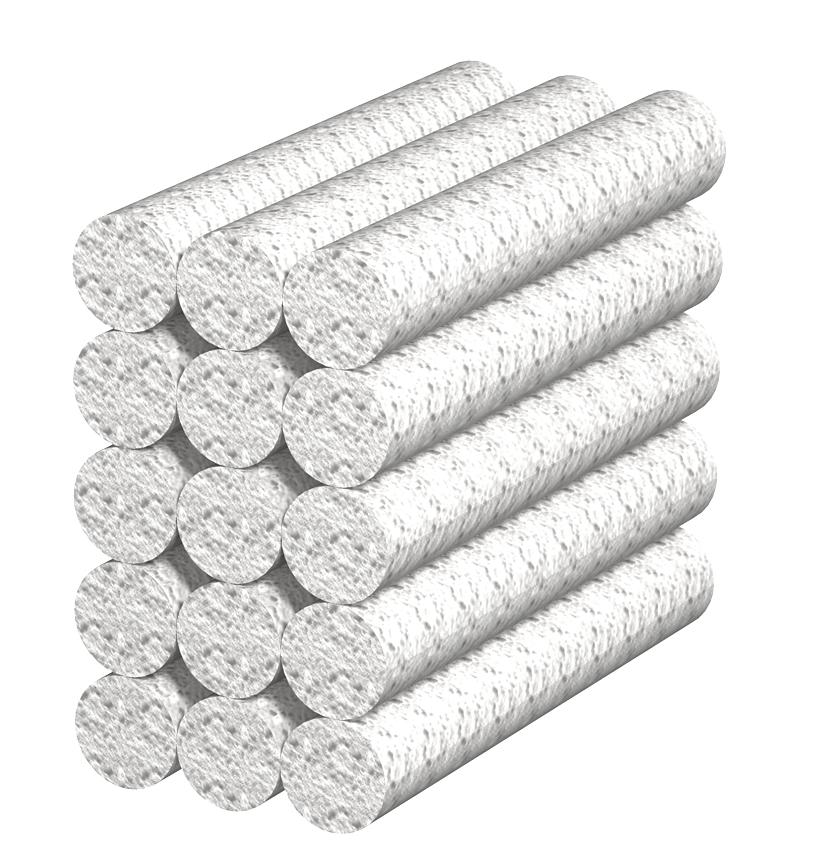

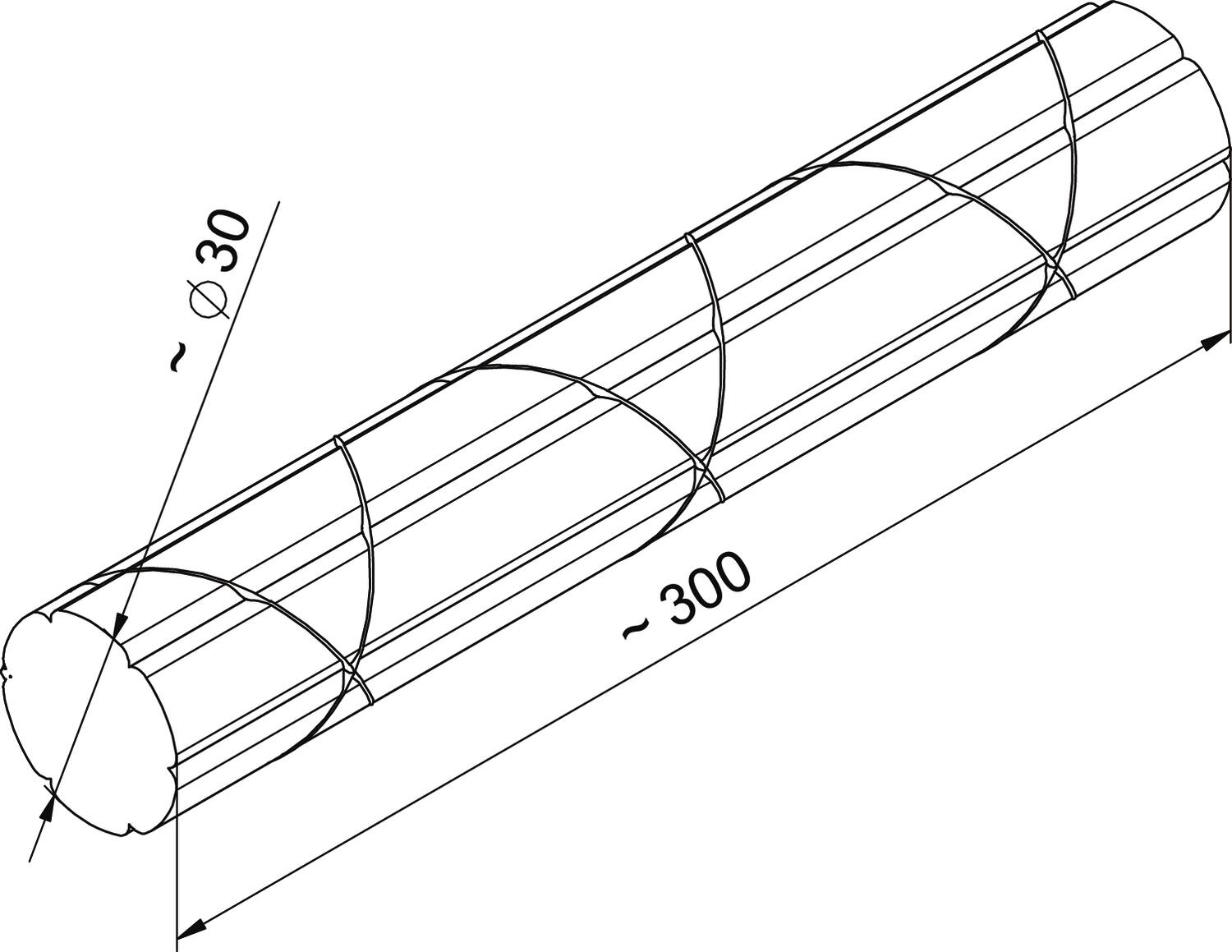

The noise limit barrier is used to reduce the transmission of airborne noise, e.g. when the trunking system is run through a wall between two offices. The noise limit barrier is made of glass wool, which, when delivered, has a diameter of approx. 30 mm and a length of approx. 300 mm. The material need not be greatly compressed during mounting.
The attenuation is approx. 40 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour White
Diameter 30 mm
Dimension 30x300mm
Halogen-free yes
Height 30 mm
Length 300 mm
Material Mineral fibres
Width 30 mm
All types

All types

Types Length Item no. Quantity SSU
7LSB 300 mm 6288650
15 piece
Downloads

Download

EU declaration of conformity 7LSB / 6288650 , 0.13MB , pdf
Download
UK Declaration of Conformity 7LSB / 6288650 , 0.14MB , pdf
REACH Declaration of conformity 7LSB / 6288650 , 0.27MB , pdf
RoHS Declaration of conformity 7LSB / 6288650 , 0.28MB , pdf

No invitation to tender text is available for this product.
