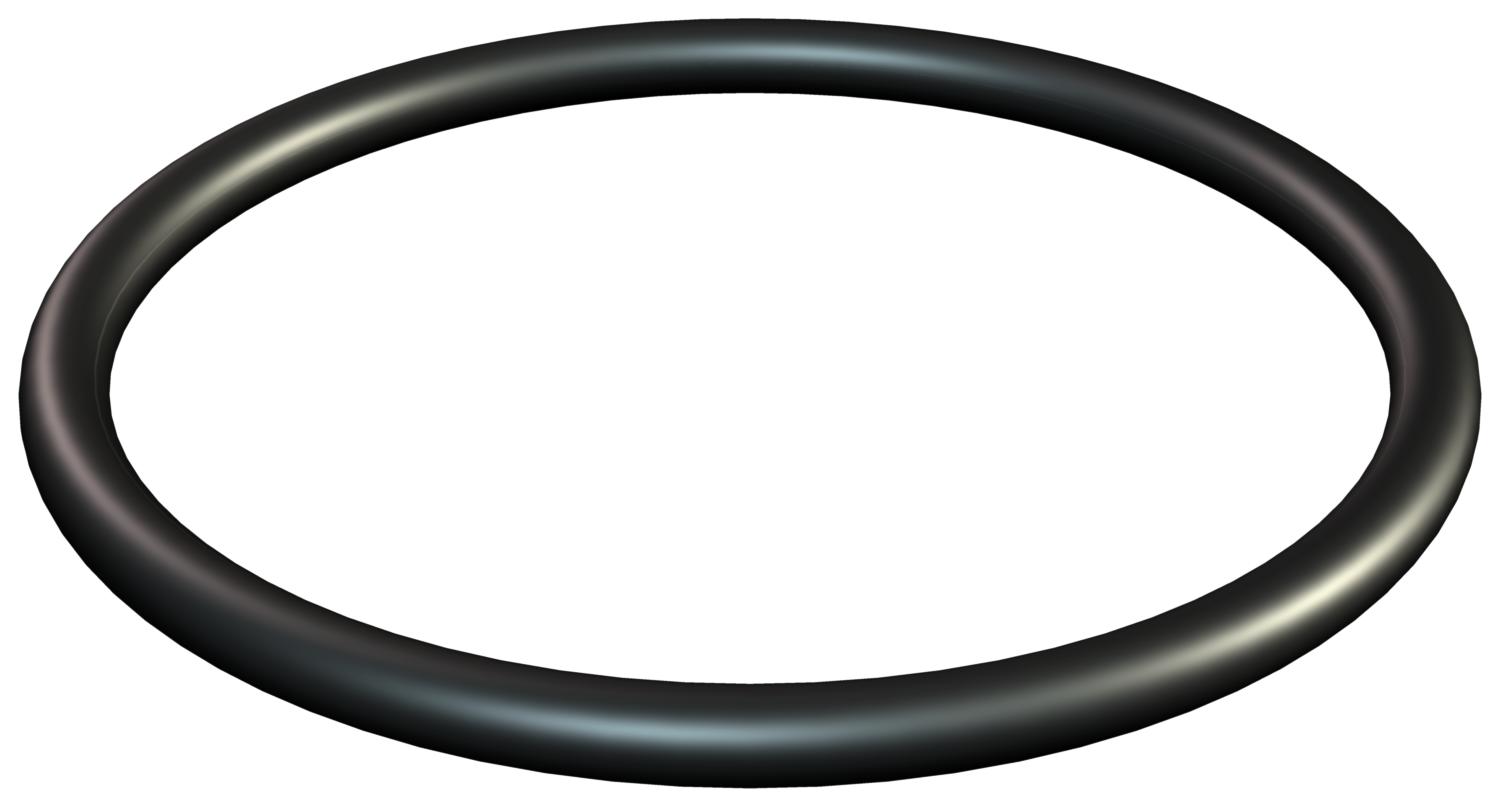

O sealing ring for metric connection thread
Item no. 2088738 | EAN 4012195471257
- Product description
-
Product descriptionO sealing rings, suitable as connection thread sealing rings for all plastic and brass cable glands with metric connection thread to DIN EN 60423 or ISO 68. The rings can be captively pre-mounted.
-
- Technical data
-
Technical data

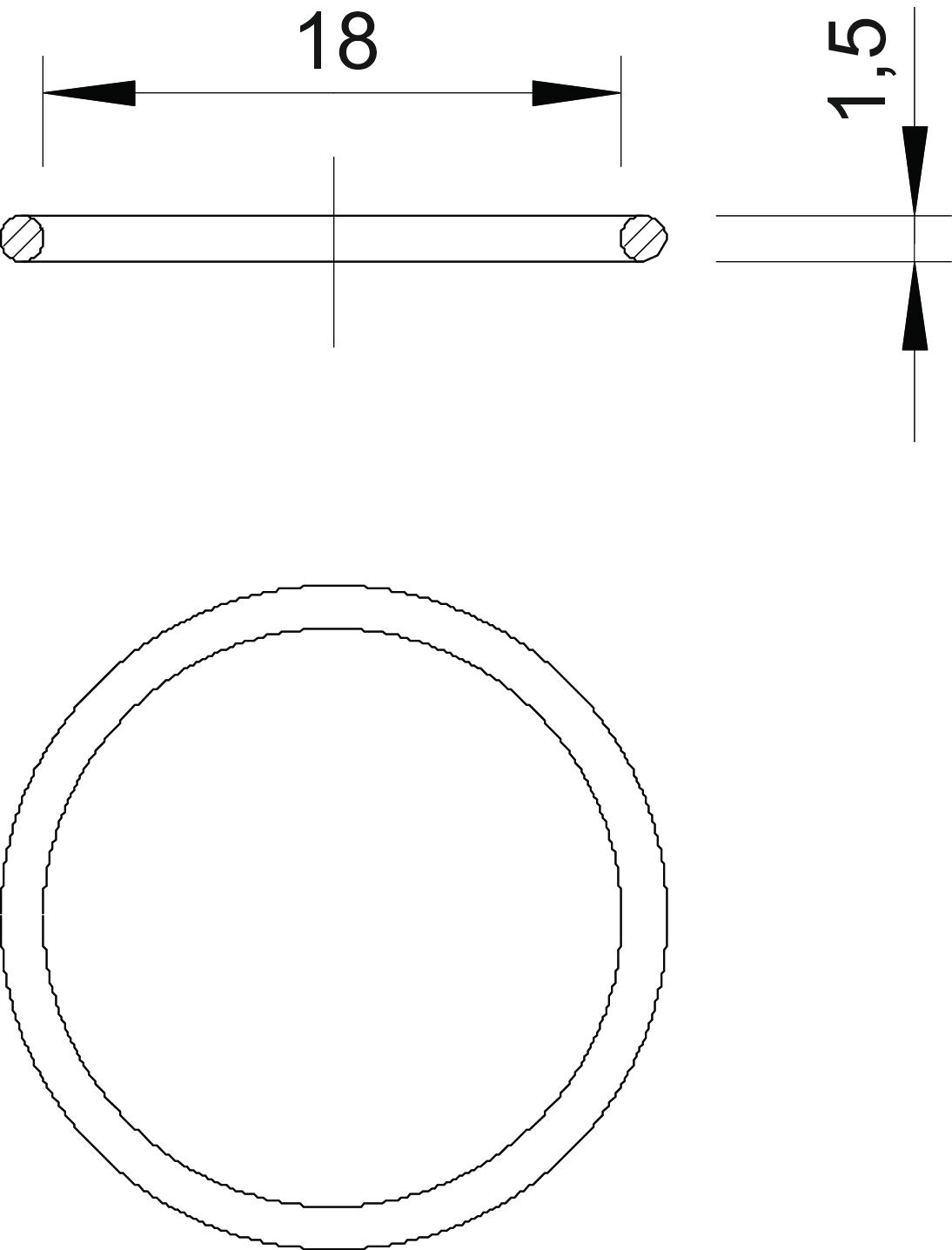

Dimension M20 Dimension D 18 mm Dimension S 1,5 mm External diameter 19,5 mm Inner diameter 18 mm Material Nitrile rubber Suitable for metric thread dimension 20 Thickness 1,5 mm Version for O-ring - All types
- Downloads
-
Data sheet 171 M20 / 2088738 , 0.17MB , pdfEU declaration of conformity EU declaration of conformity ,EU declaration of conformity EU declaration of conformity ,REACH Declaration of conformity 171 M20 / 2088738 , 0.12MB , pdfRoHS Declaration of conformity 171 M20 / 2088738 , 0.12MB , pdf
