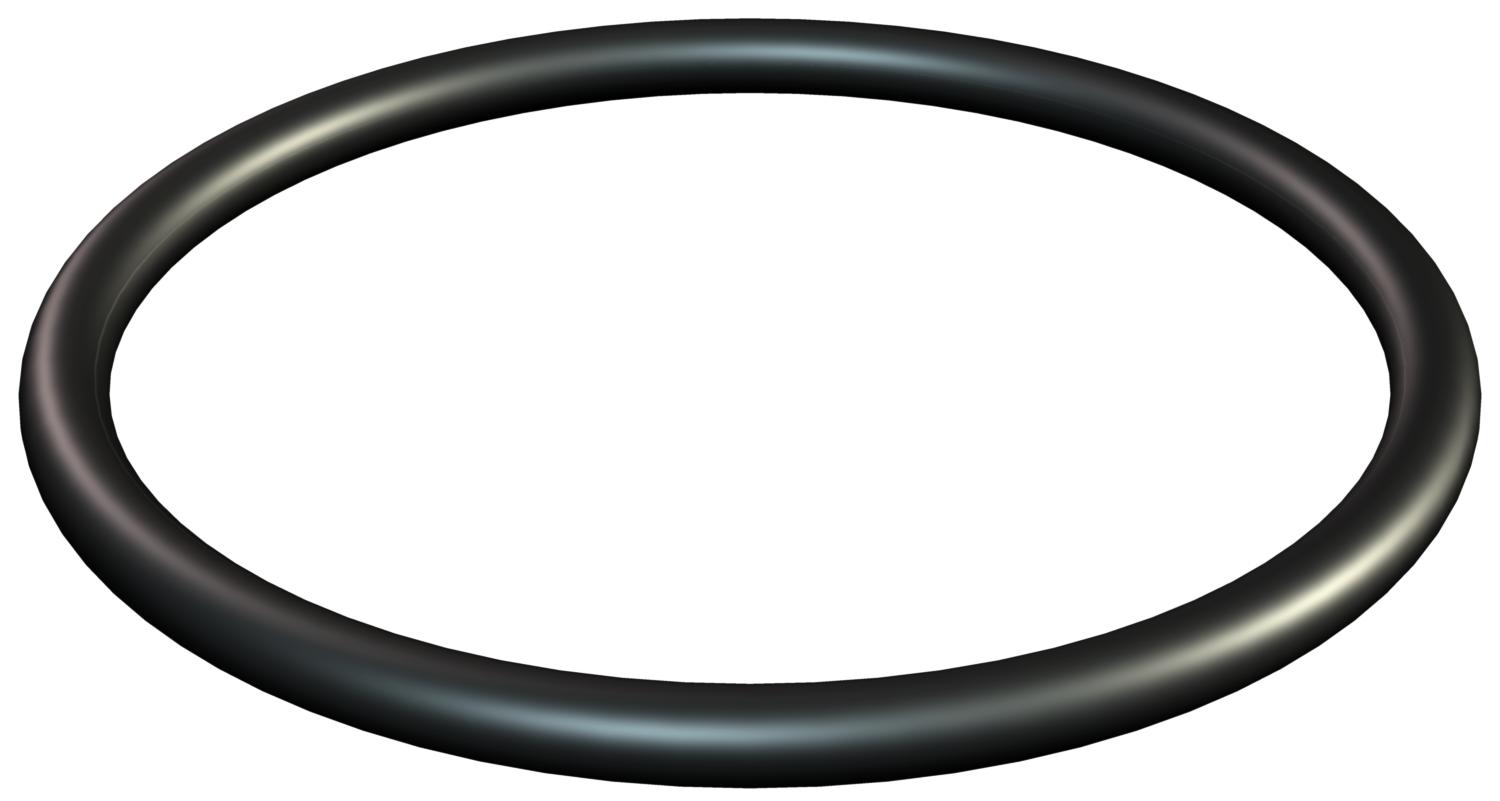

O sealing ring for metric connection thread

Item no. 2088762 | EAN 4012195471554

Product description
Product description
O sealing rings, suitable as connection thread sealing rings for all plastic and brass cable glands with metric connection thread to DIN EN 60423 or ISO 68. The rings can be captively pre-mounted.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

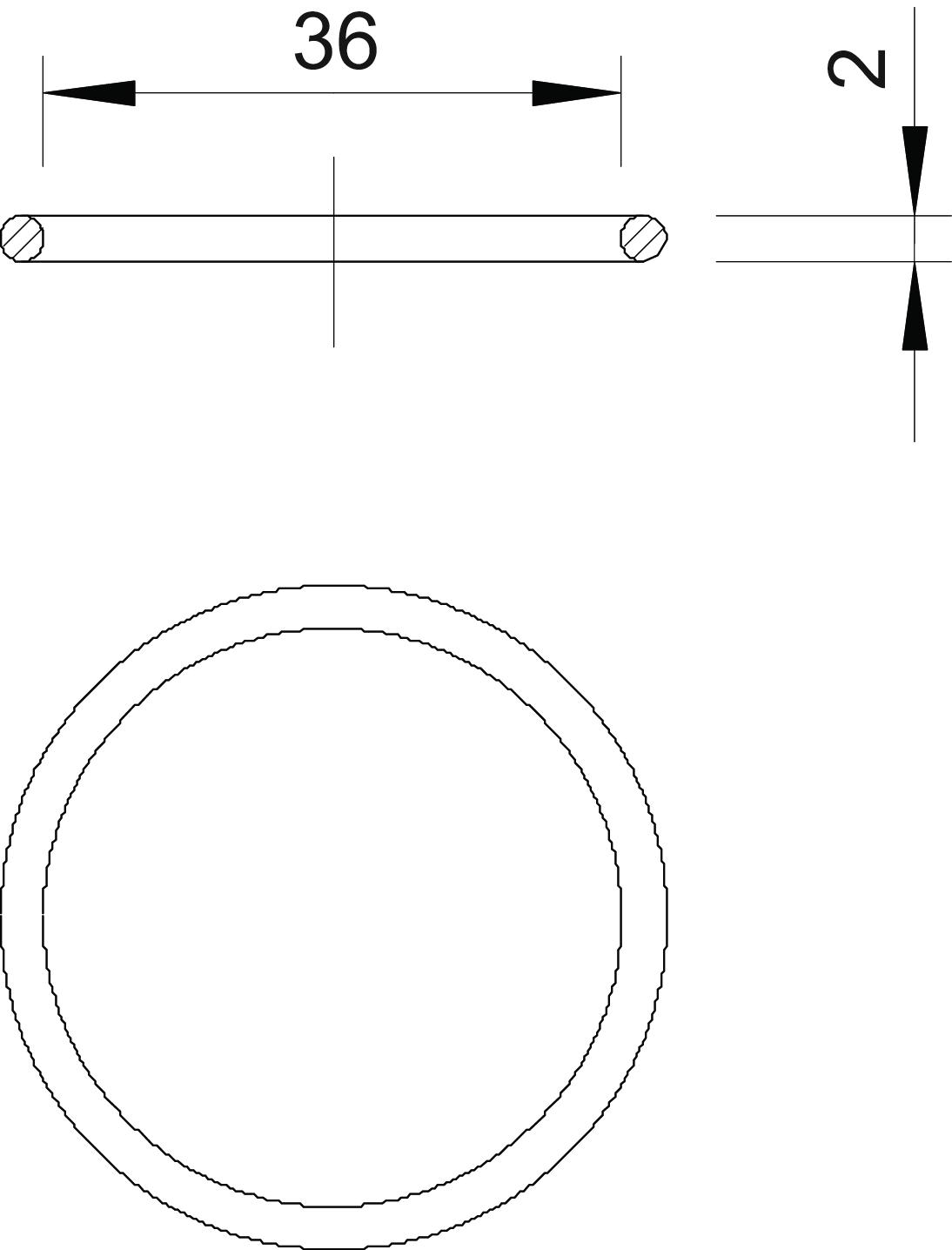

Dimension M40
Dimension D 36 mm
Dimension S 2 mm
External diameter 38 mm
Inner diameter 36 mm
Material Nitrile rubber
Suitable for metric thread dimension 40
Thickness 2 mm
Version for O-ring
All types

All types

Types Suitable for metric thread dimension Item no. Quantity SSU
171 M12 12 2088703
1000 piece
171 M16 16 2088711
1000 piece
171 M20 20 2088738
1000 piece
171 M25 25 2088746
1000 piece
171 M32 32 2088754
1000 piece
171 M40 40 2088762
50 piece
171 M50 50 2088770
50 piece
171 M63 63 2088789
25 piece
