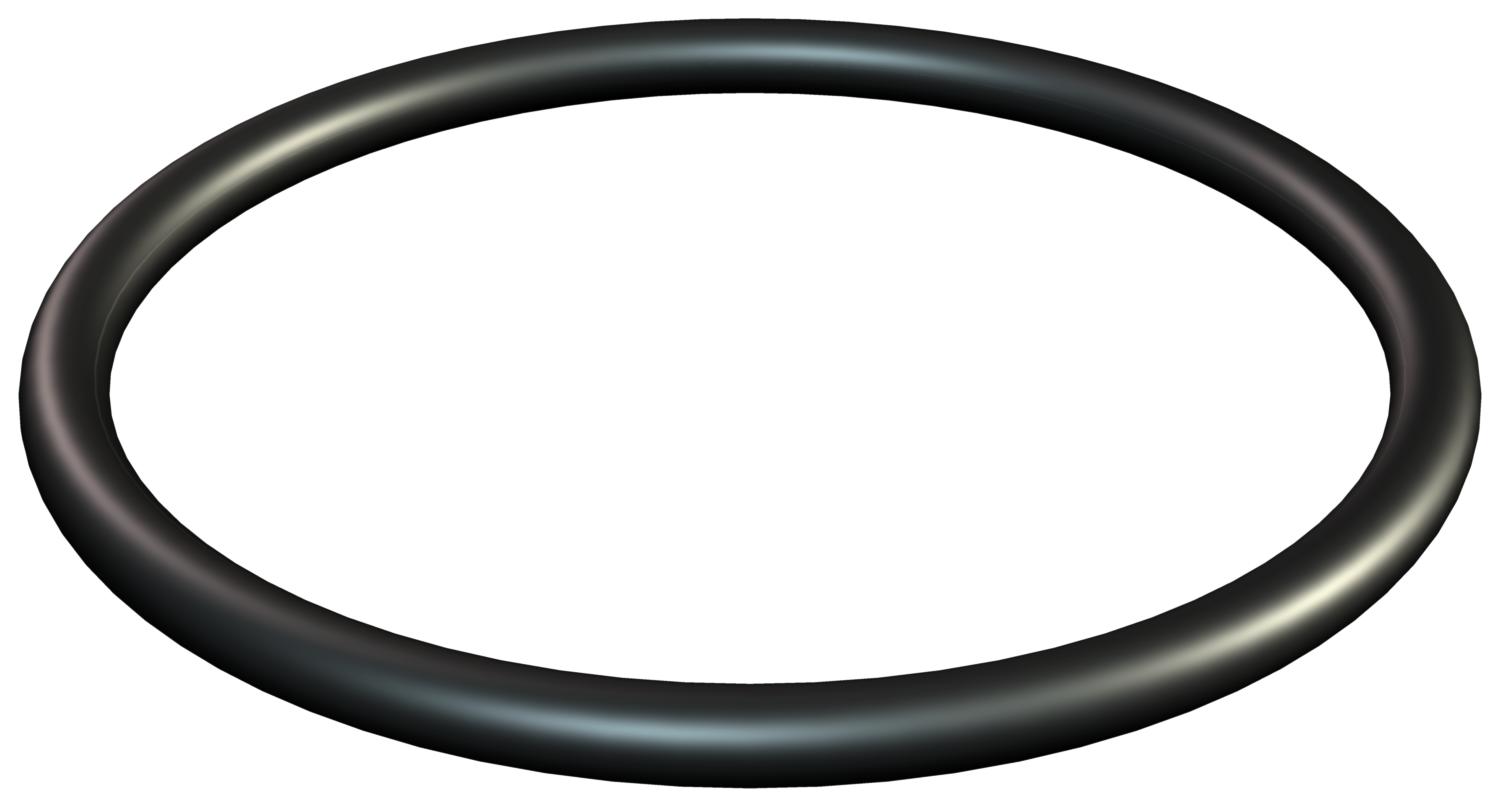

O sealing ring for metric connection thread
Item no. 2088770 | EAN 4012195471615
- Product description
-
Product description
O sealing rings, suitable as connection thread sealing rings for all plastic and brass cable glands with metric connection thread to DIN EN 60423 or ISO 68. The rings can be captively pre-mounted.
-
- Technical data
-
Technical data

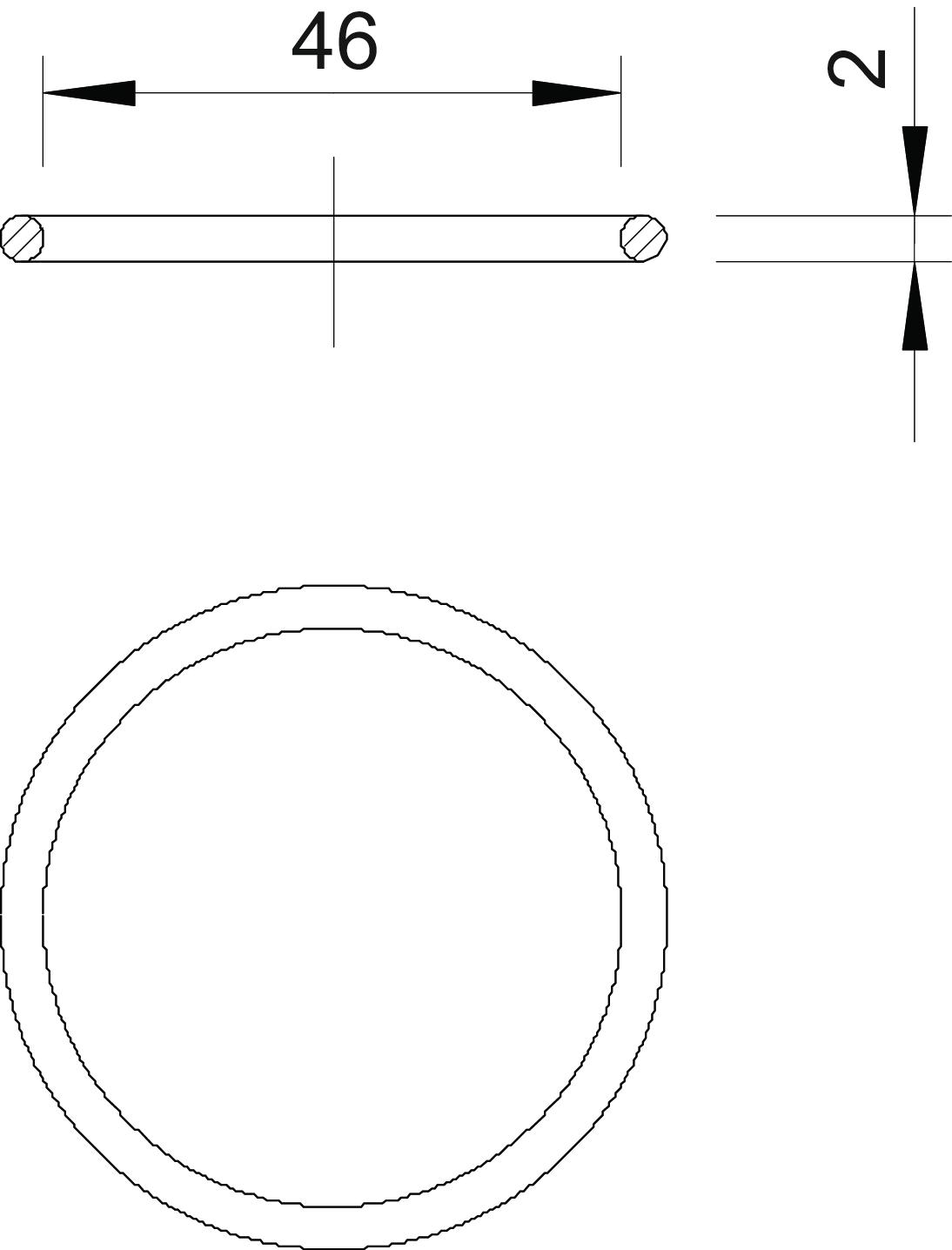

Dimension M50 Dimension D 46 mm Dimension S 2 mm External diameter 48 mm Inner diameter 46 mm Material Nitrile rubber Suitable for metric thread dimension 50 Thickness 2 mm Version for O-ring - All types
- Downloads
-
Data sheet 171 M50 / 2088770 , 0.17MB , pdfDeclaration of conformity 171 M50 / 2088770 , 0.58MB , pdfREACH Declaration of conformity 171 M50 / 2088770 , 0.12MB , pdfRoHS Declaration of conformity 171 M50 / 2088770 , 0.12MB , pdf
