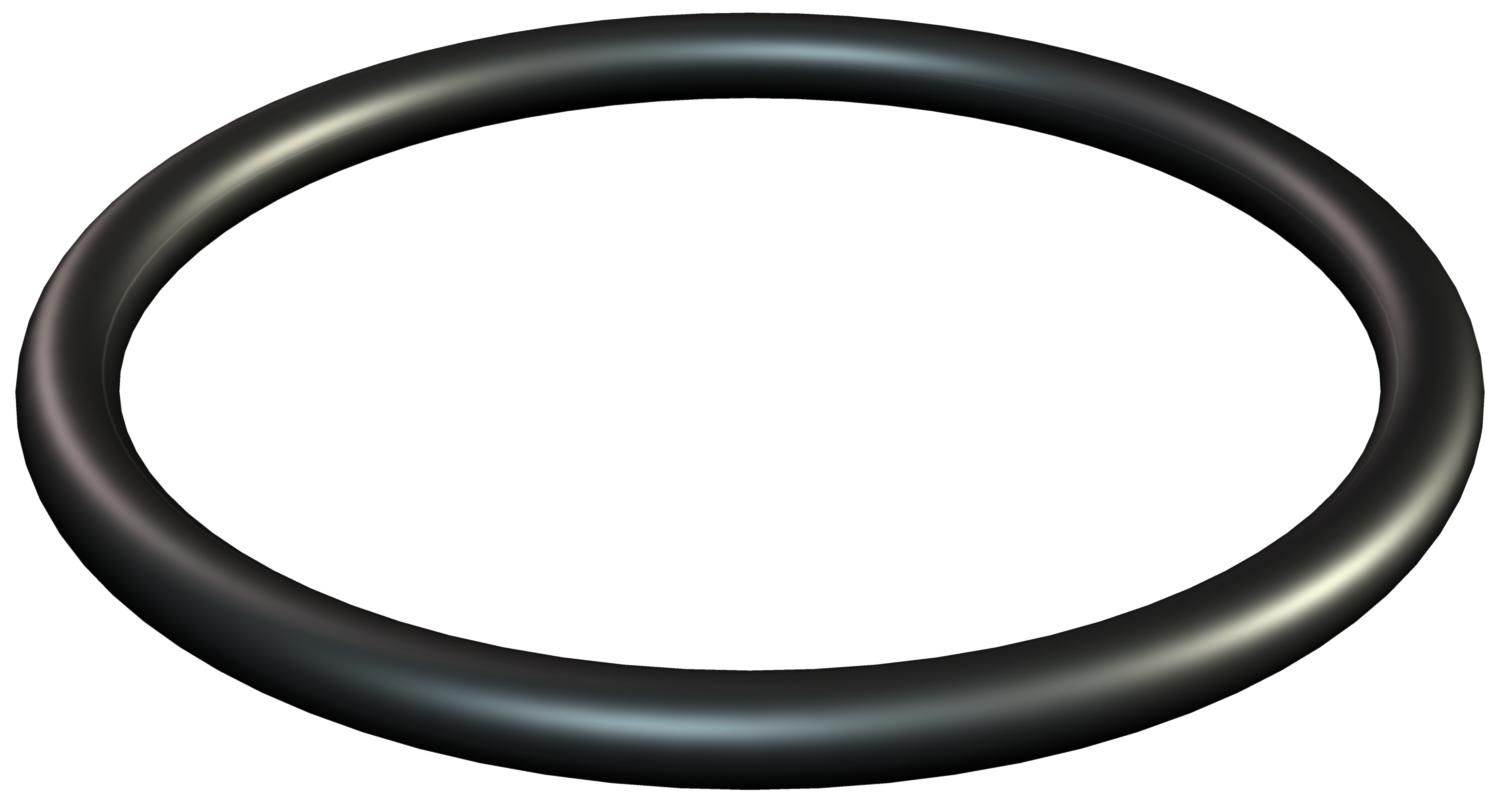

O sealing ring for PG connection thread

Item no. 2088819 | EAN 4012195192190

Product description

Product description

O sealing rings, suitable as connection thread sealing rings for all plastic and brass cable glands with Pg connection thread to DIN EN 60423 or ISO 68. The rings can be captively pre-mounted.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

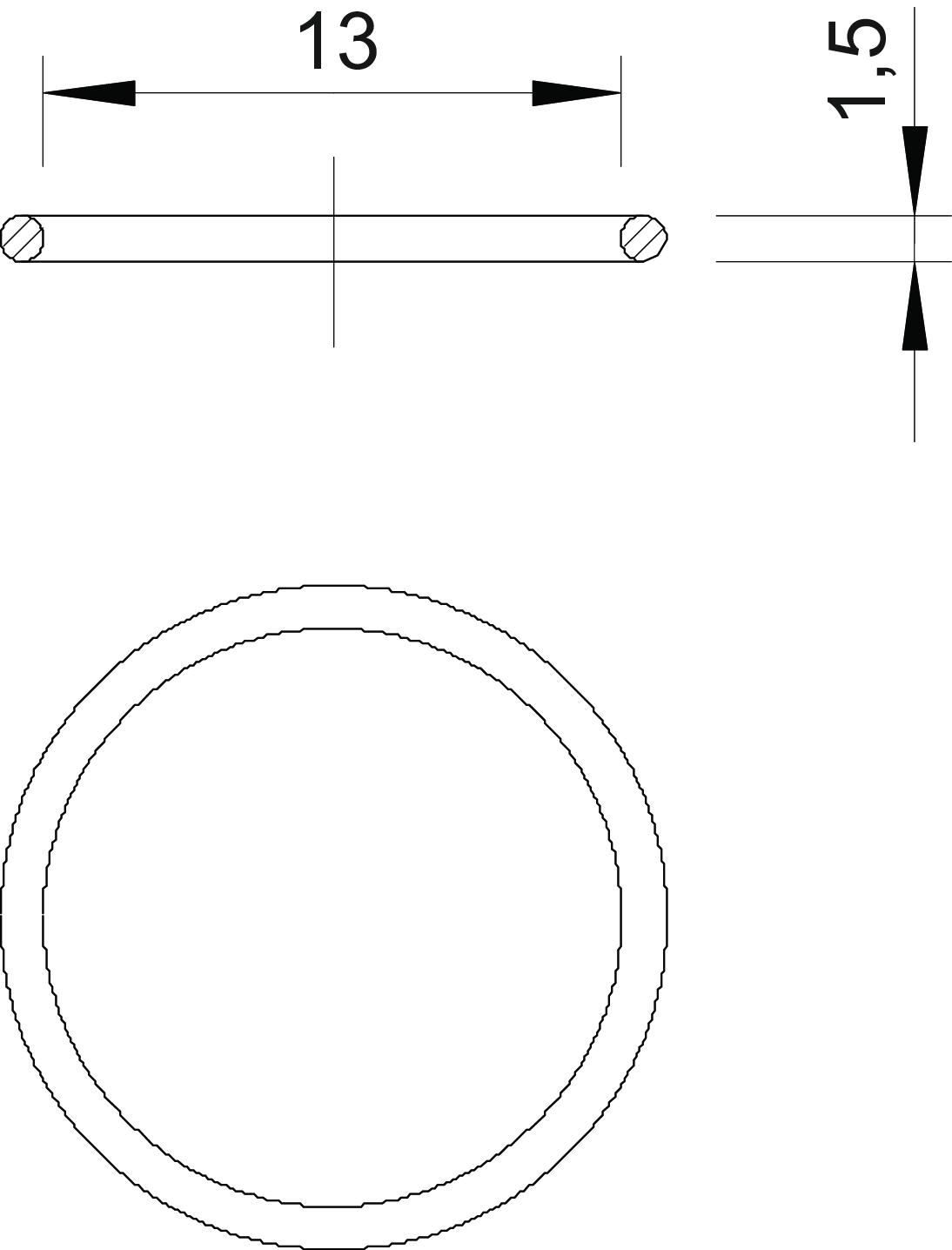

Dimension PG9
Dimension D 13 mm
Dimension S 1,5 mm
External diameter 14,5 mm
Inner diameter 13 mm
Material Nitrile rubber
Screw for PG thread dimension 9
Thickness 1,5 mm
Version for O-ring
All types

All types

Types Size Suitable for metric thread dimension Item no. Quantity SSU
171 PG 9 2088819
1000 piece
171 PG11 2088827
1000 piece
171 PG13.5 2088835
1000 piece
171 PG16 2088843
1000 piece
171 PG21 2088851
1000 piece
171 PG29 2088878
1000 piece
171 PG36 2088886
50 piece
171 PG42 2088894
50 piece
