- Product description
-

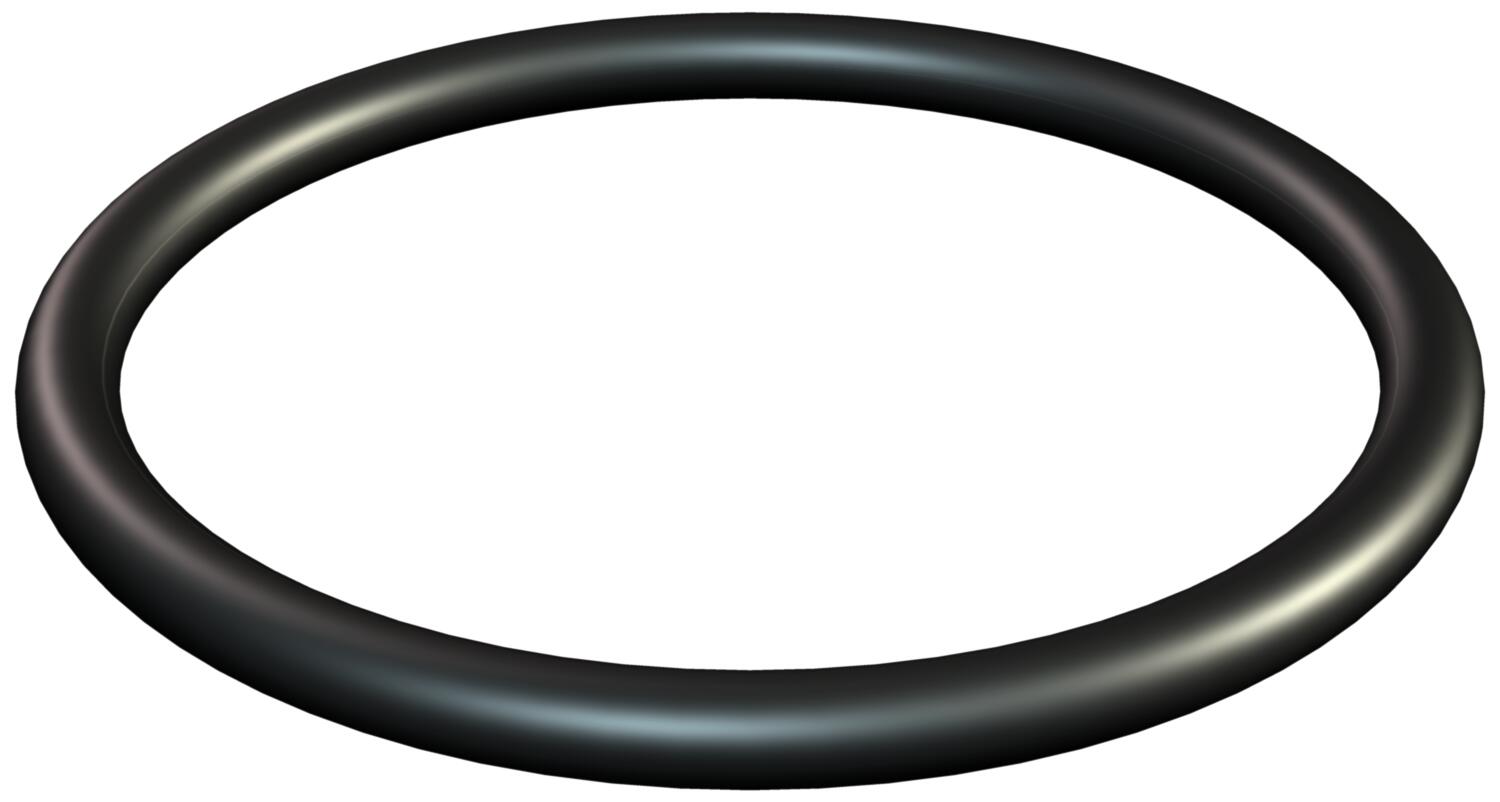

Product descriptionO sealing rings, suitable as connection thread sealing rings for all plastic and brass cable glands with Pg connection thread to DIN EN 60423 or ISO 68. The rings can be captively pre-mounted.
- Technical data
-
Technical data

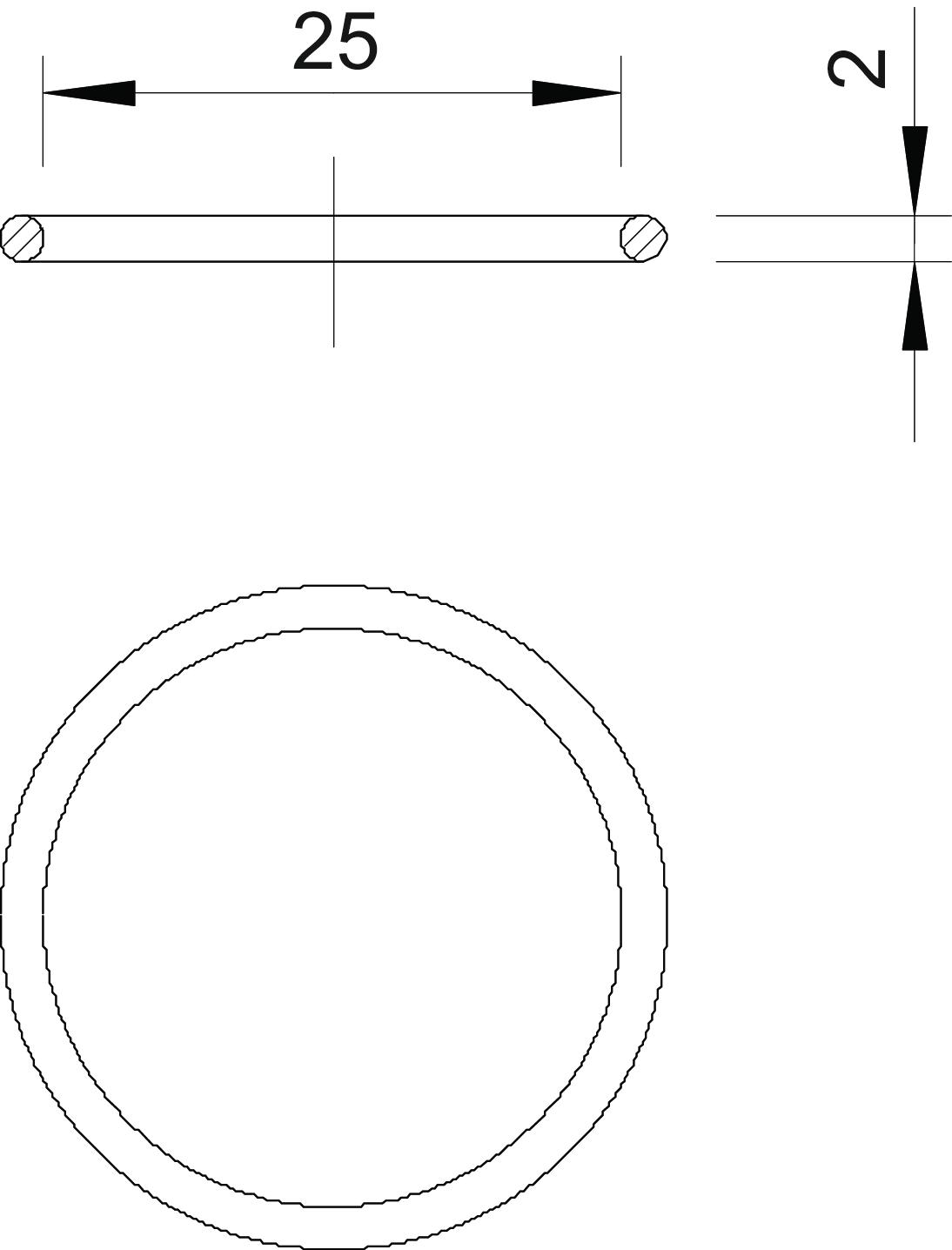

Dimension PG21 Dimension D 25 mm Dimension S 2 mm External diameter 27 mm Inner diameter 25 mm Material Nitrile rubber Screw for PG thread dimension 21 Thickness 2 mm Version for O-ring - All types
- Downloads
-
Data sheet 171 PG21 / 2088851 , 0.15MB , pdfEU declaration of conformity 171 PG21 / 2088851 , 0.58MB , pdfREACH Declaration of conformity 171 PG21 / 2088851 , 0.12MB , pdfRoHS Declaration of conformity 171 PG21 / 2088851 , 0.12MB , pdf
