- Product description
-
Product description

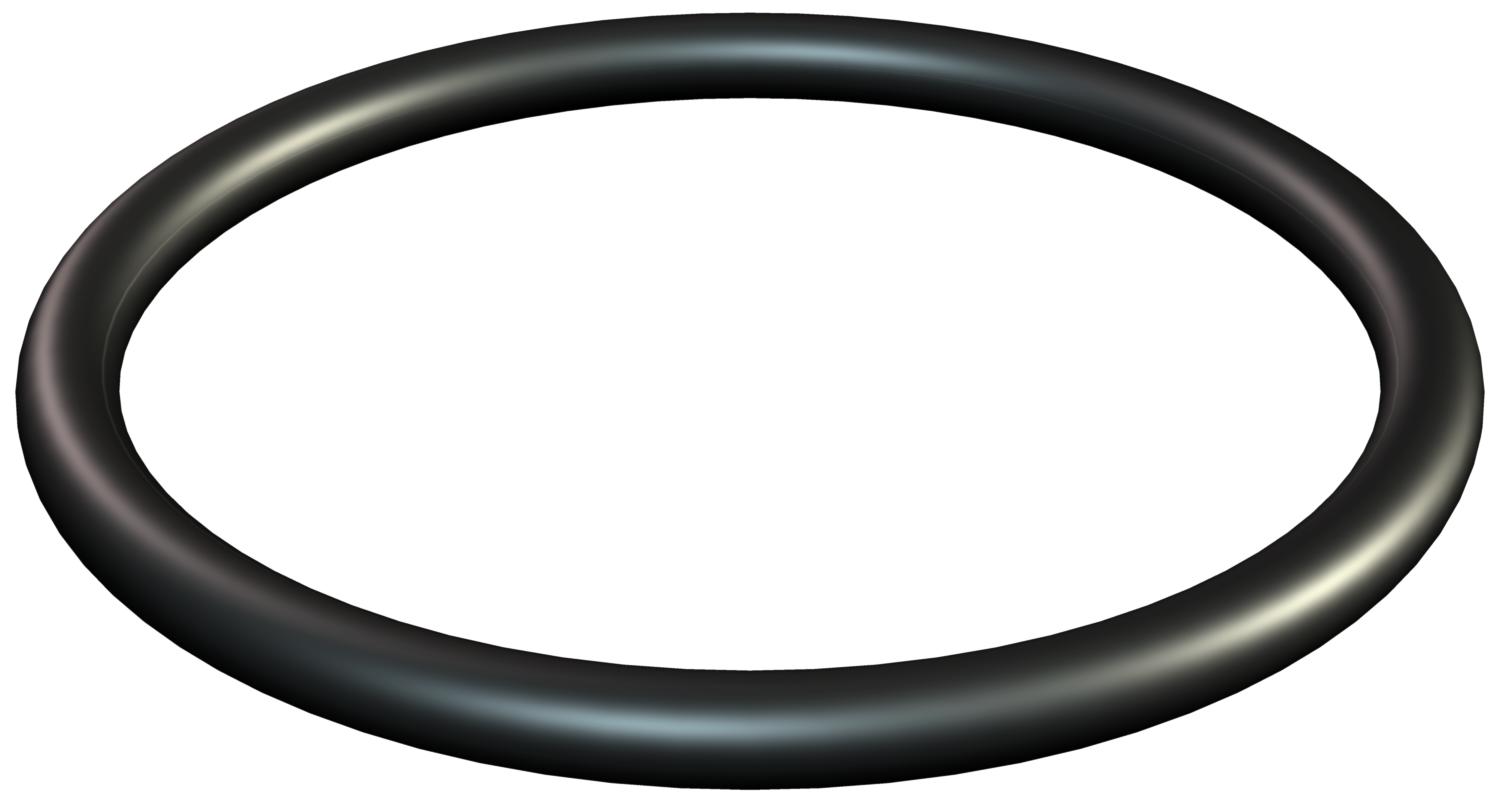

O sealing rings, suitable as connection thread sealing rings for all plastic and brass cable glands with Pg connection thread to DIN EN 60423 or ISO 68. The rings can be captively pre-mounted.
- Technical data
-
Technical data

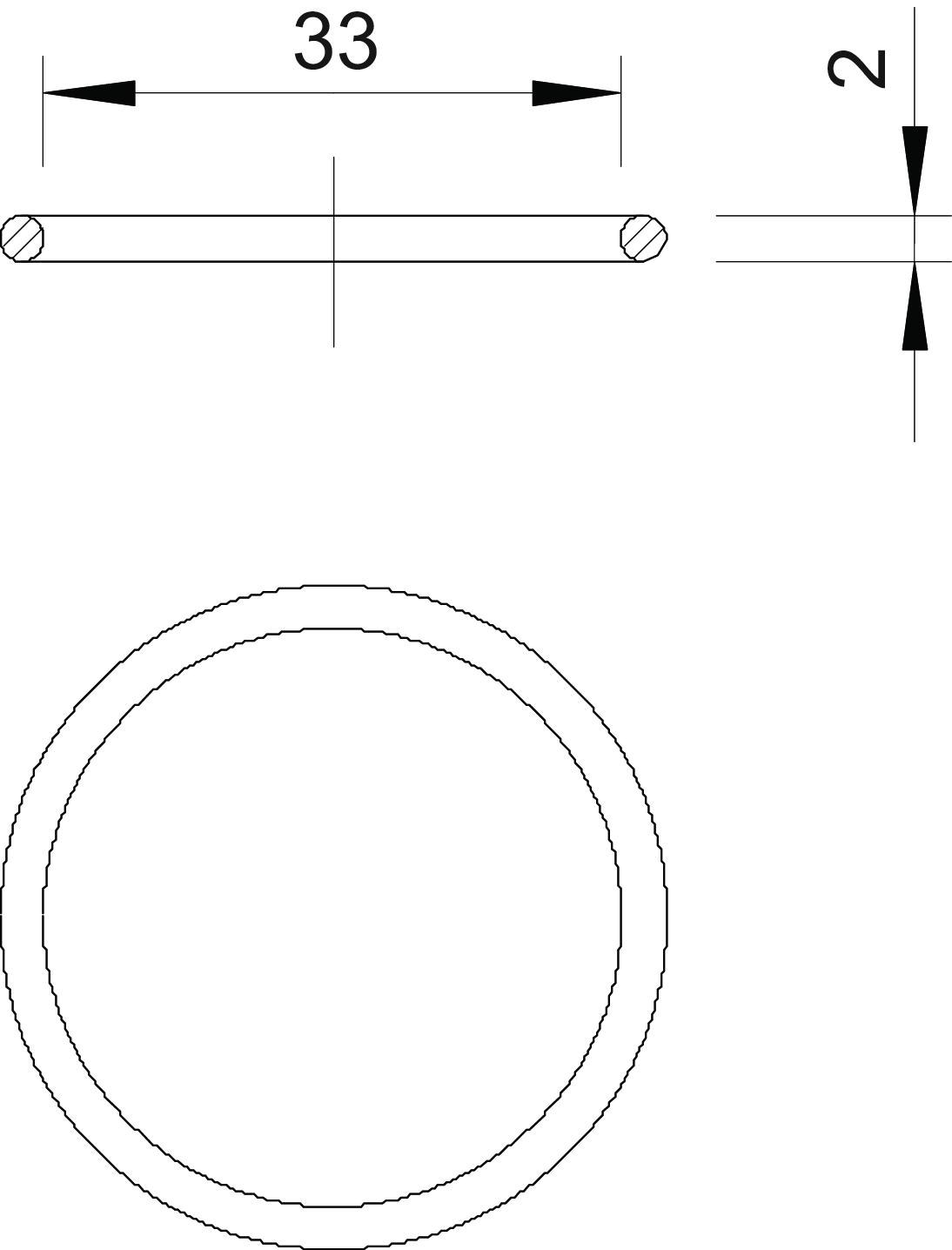

Dimension PG29 Dimension D 33 mm Dimension S 2 mm External diameter 35 mm Inner diameter 33 mm Material Nitrile rubber Screw for PG thread dimension 29 Thickness 2 mm Version for O-ring - All types
- Downloads
-
Data sheet 171 PG29 / 2088878 , 0.15MB , pdfDeclaration of conformity 171 PG29 / 2088878 , 0.58MB , pdfREACH Declaration of conformity 171 PG29 / 2088878 , 0.12MB , pdfRoHS Declaration of conformity 171 PG29 / 2088878 , 0.12MB , pdf
