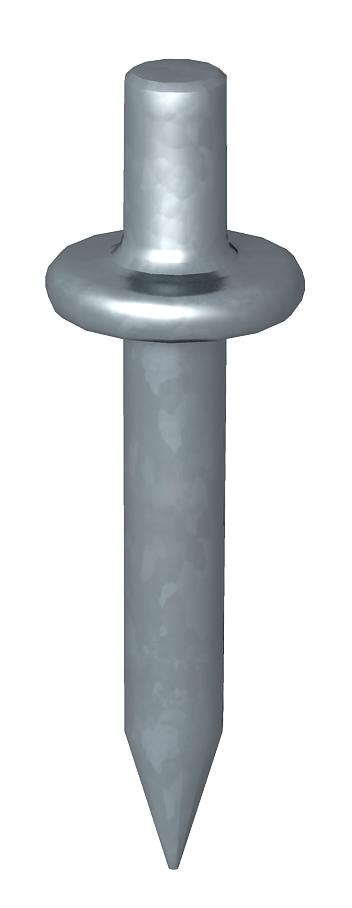

OBO anchor

Item no. 3105032 | EAN 4012195851172

4 mm
Product description
Product description
Hardened steel, shiny without thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

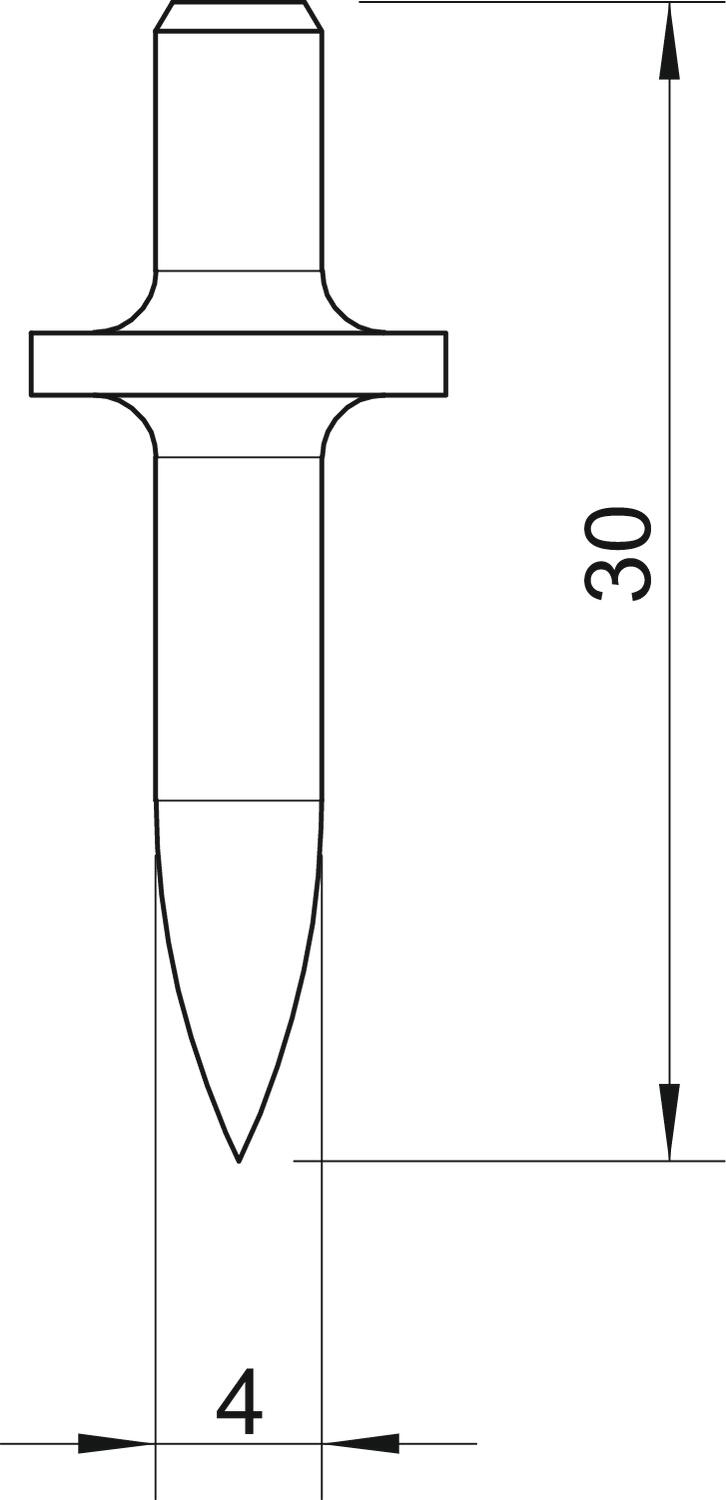

Dimension L22mm
Dimension d min. 4 mm
Dimension L 30 mm
Flange diameter 10 mm
Hardened yes
Length 30 mm
Material Steel
Shank length 22
All types

All types

Types Shank length Dimension d min. Dimension L Item no. Quantity SSU
903 RB 15 15 4 mm 21 mm 3105016
200 piece
903 RB 18 18 4 mm 24 mm 3105024
200 piece
903 RB 22 22 4 mm 30 mm 3105032
200 piece
