OBO anchor G 25 | 4 | M6 | 33

morepic-1

morepic-2

OBO anchor G

Item no. 3100251 | EAN 4012195245896

Item no. / Types

Shank length

Dimension d min.	4 mm

Dimension G	M6 mm

Dimension L

Product description

Product description

Hardened steel, electrogalvanised with M6 x 8 mm thread.

Technical data

Technical data

Dimension	M6, L25mm
Dimension d min.	4 mm
Dimension G	M6 mm
Dimension L	33 mm
Hardened	yes
Impact-resistant	no
Length	33 mm

Material	Steel
Shank length	25
Surface	Electrogalvanized
Thread length	8 mm
Thread metric	6
Thread type	Metric

All types

All types

Types	Shank length	Dimension d min.	Dimension G	Dimension L	Item no.	Quantity	SSU
903 15 G	15	4 mm	M6 mm	23 mm	3100154	piece	100 piece
903 18 G	18	4 mm	M6 mm	26 mm	3100189	piece	100 piece
903 25 G	25	4 mm	M6 mm	33 mm	3100251	piece	100 piece
903 30 G	30	4 mm	M6 mm	38 mm	3100308	piece	100 piece
903 40 G	40	4 mm	M6 mm	48 mm	3100405	piece	100 piece

Downloads

Data sheet 903 25 G / 3100251 , 0.18MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 903 25 G / 3100251 , 0.06MB , pdf

Download

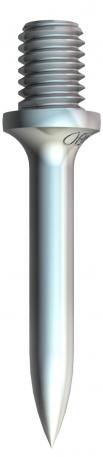

Product graphic 903 25 G / 3100251, 28.73 kB, jpg

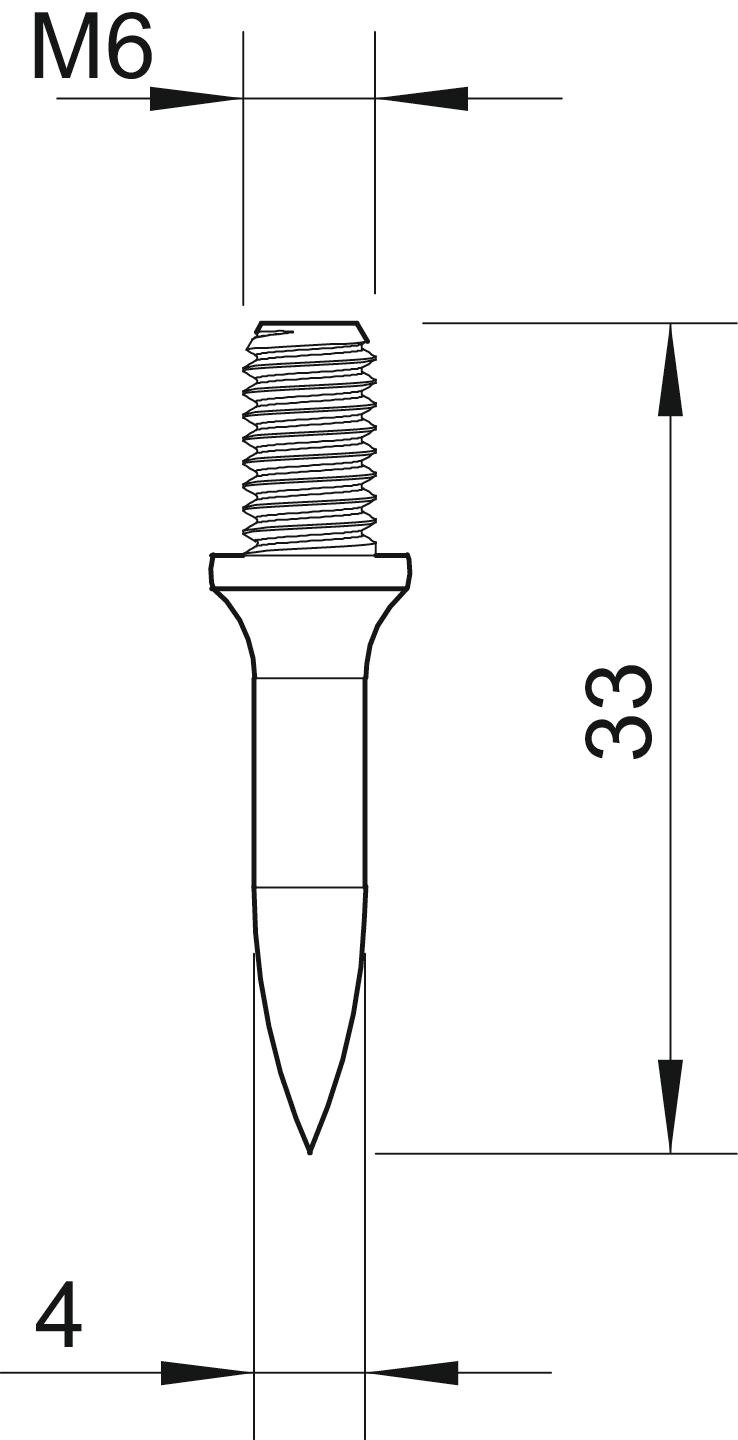

Scale drawing 903 25 G / 3100251, 41.70 kB, jpg

903 25 G / 3100251
