OKA-T trunking cover with GES9 mounting opening 800 | 300 | 244
morepic-1 morepic-2

OKA-T trunking cover with GES9 mounting opening

Item no. 7402549 | EAN 4012195407485

7402549 / OKAT DG 9 300
800 mm
300 mm
244 mm
Product description
Product description
Trunking cover for flushfloor OKA-T trunking system with installation opening for installation units of nominal size 9.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

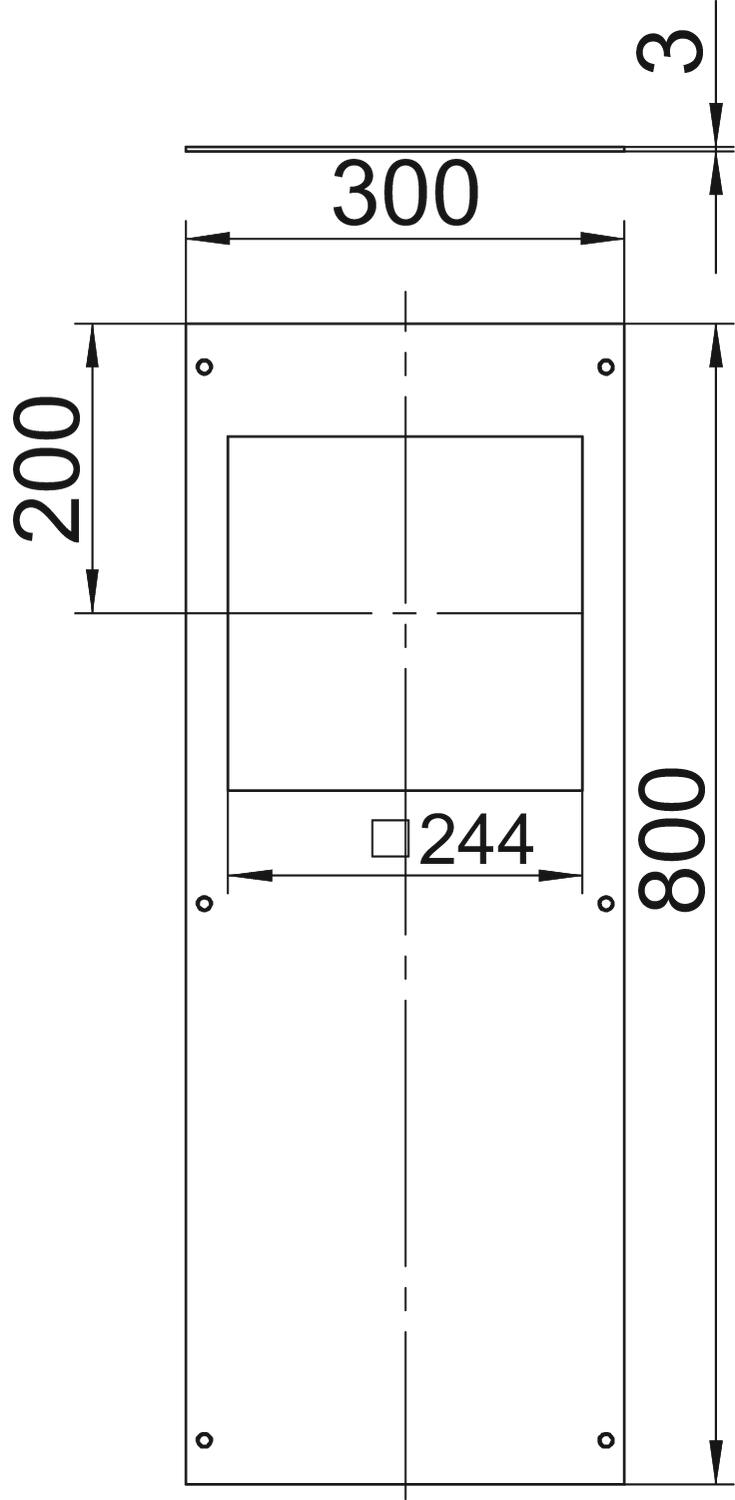

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 13,7654 kg CO2e / 1 Piece
Dimension 800x300x3
Dimension A 303 mm
Dimension a 244 mm
Length 800 mm
Material Steel
Surface Strip galvanized
Width 300 mm
All types

All types

Types Length Width Dimension a Item no. Quantity SSU
OKAT DG 9 300 800 mm 300 mm 244 mm 7402549
1 piece
Downloads

Download

Download

REACH Declaration of conformity OKAT DG 9 300 / 7402549 , 0.12MB , pdf
Download
RoHS Declaration of conformity OKAT DG 9 300 / 7402549 , 0.13MB , pdf
Download

Download

OKAT DG 9 300 / 7402549
Download
