OKA-T trunking cover with GES9 mounting opening 800 | 400 | 244
morepic-1 morepic-2

OKA-T trunking cover with GES9 mounting opening

Item no. 7402553 | EAN 4012195407508

7402553 / OKAT DG 9 400
800 mm
400 mm
244 mm
Product description

Product description

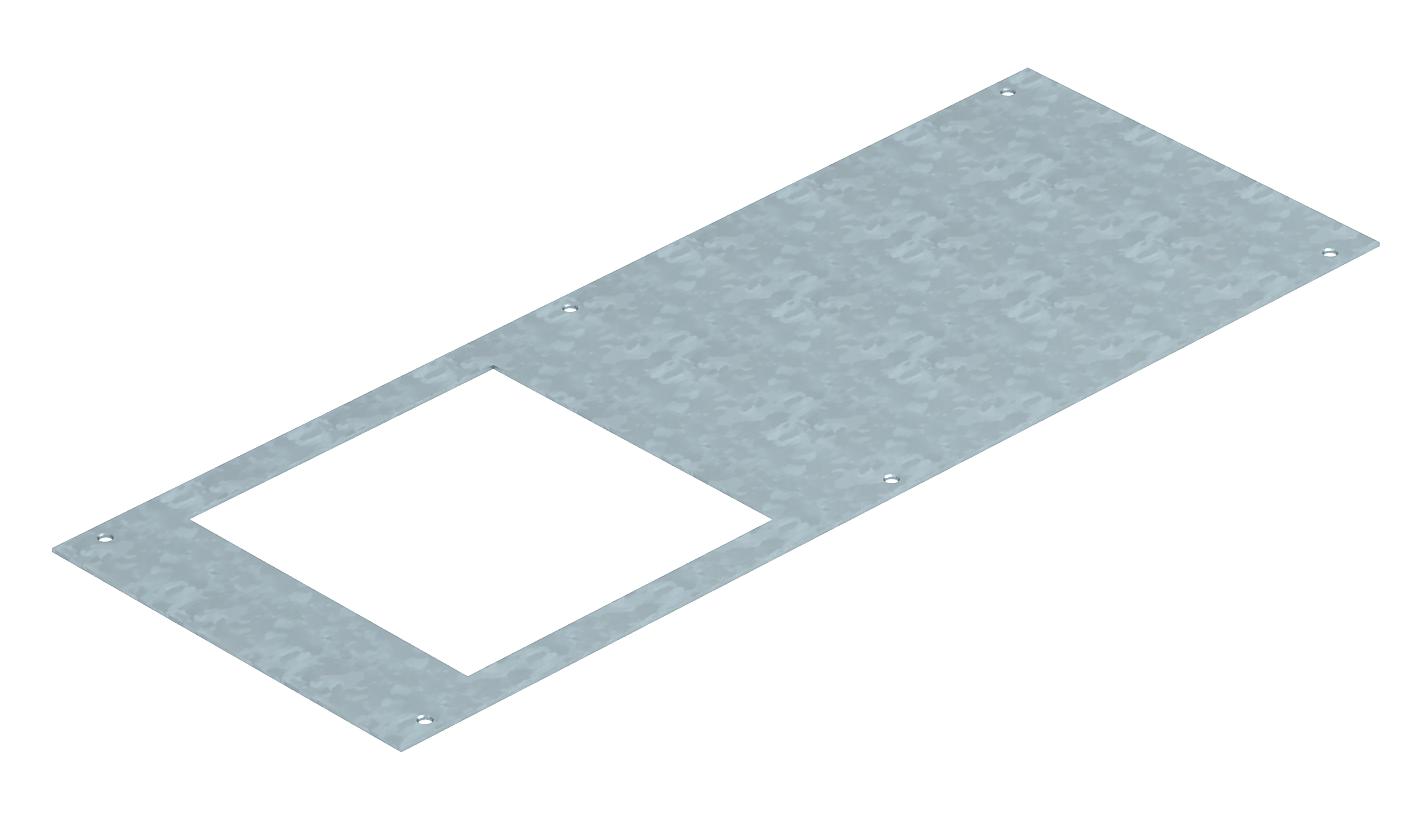

Trunking cover for flushfloor OKA-T trunking system with installation opening for installation units of nominal size 9.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

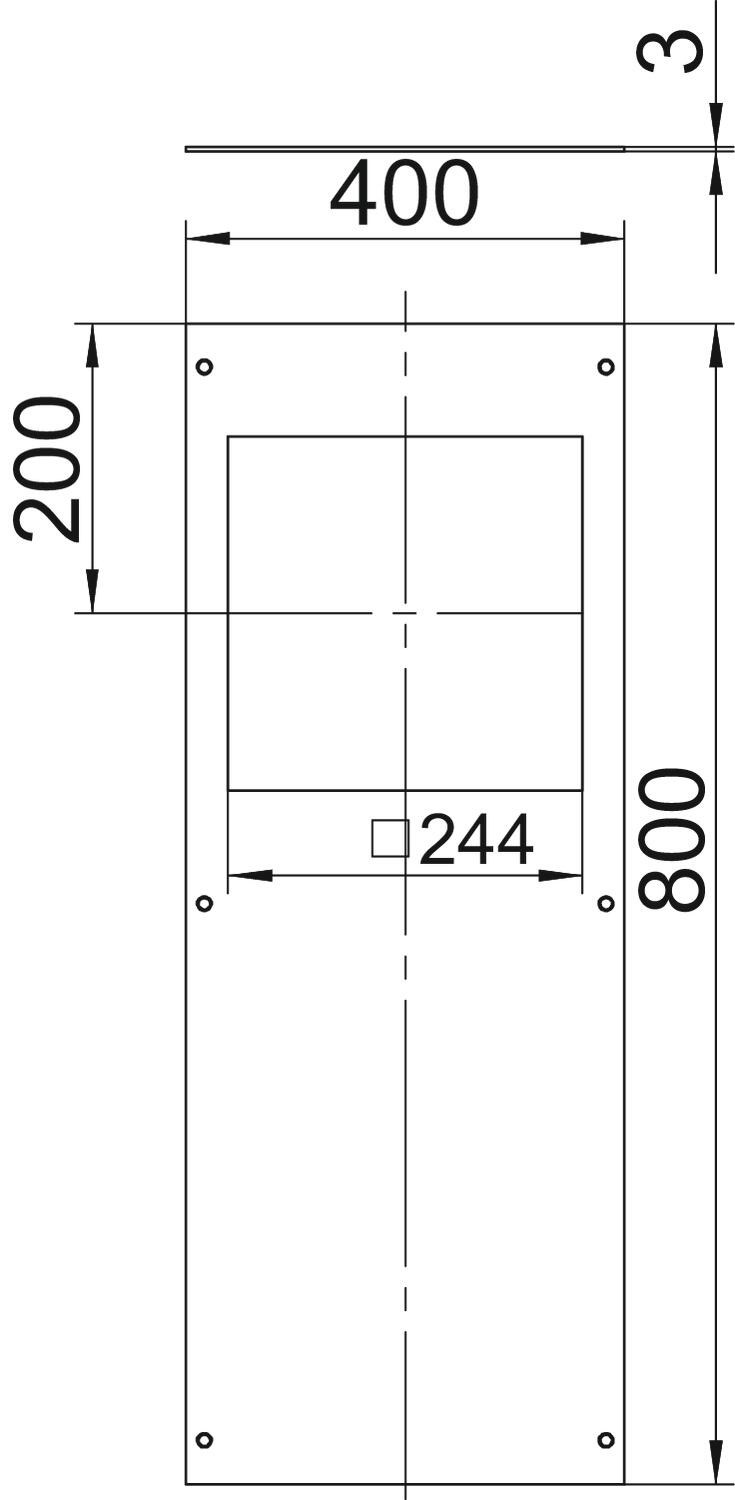

Dimension 800x400x3
Dimension a 244 mm
Dimension A 403 mm
Length 800 mm
Material Steel
Surface Strip galvanized
Width 400 mm
All types

All types

Types Length Width Dimension a Item no. Quantity SSU
OKAT DG 9 400 800 mm 400 mm 244 mm 7402553
1 piece
Downloads

Download

Download

Download

OKAT DG 9 400 / 7402553
Download
