OKB supply trunking

Item no. 7403811 | EAN 4012195845942

7403811 / OKB E 25085 ON
2000 mm
210 mm
Product description

Product description

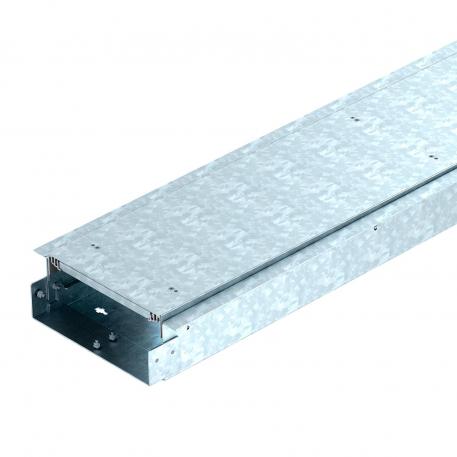

Ready-to-mount trunking unit for cable routing, consisting of a trunking base with two covers. The scope of delivery contains two lid butt seals and one connector. For height adjustment, six height adjustment units are required. Load capacity up to a maximum of 5 kN. The trunking unit can be supplemented with an adjustable floor covering contact profile for screed limitation in areas of door frames and in front of radiator niches.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cover fastening, locking no
Cross-section, draw a 11008 mm²
Decouplable yes

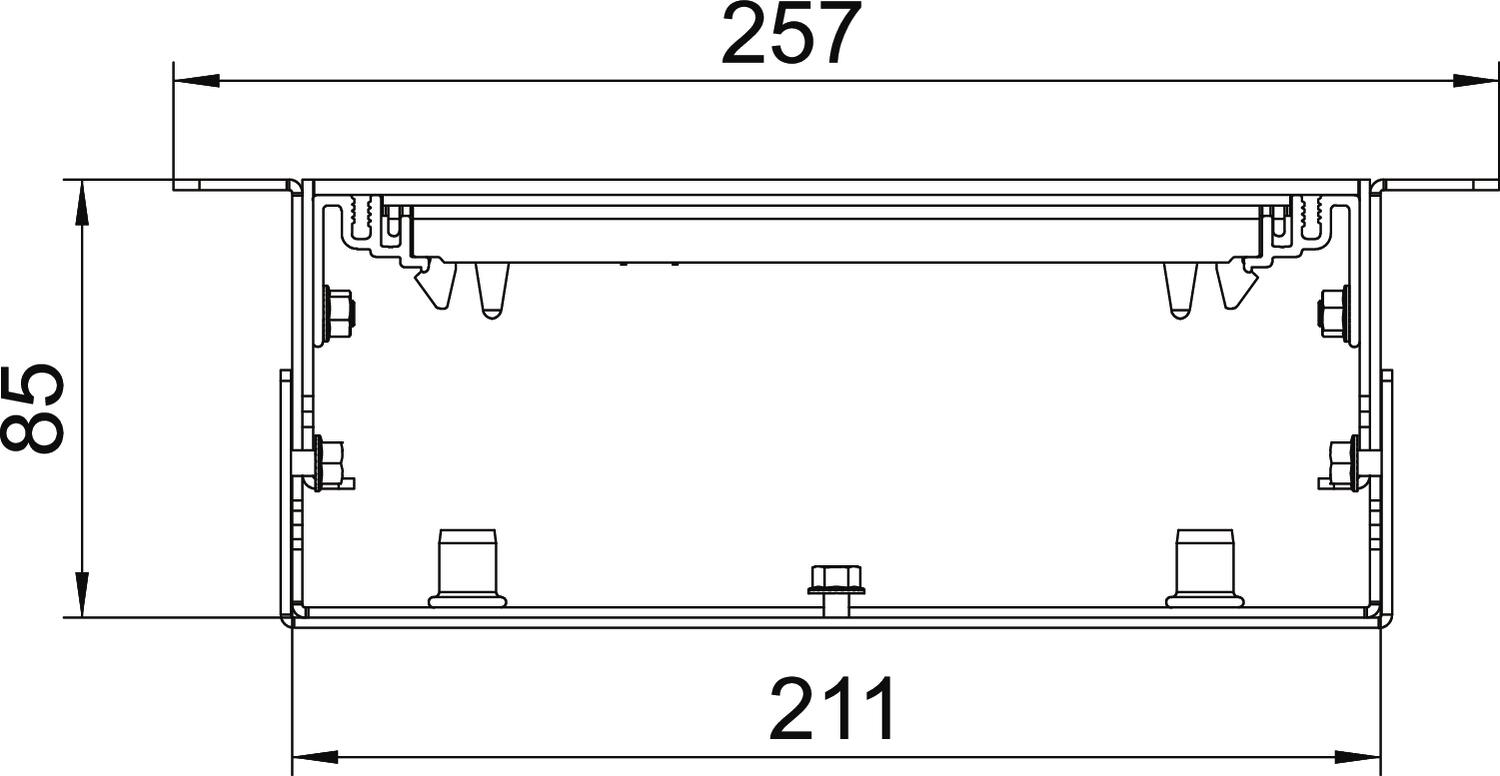

Dimension 2000x73x85
Dimension h 85 mm
Floor care Dry
Floor plate yes
Height 93 mm
Installation opening for on-floor tank no
Length 2000 mm
Material Steel
Minimum screed height 85
Mounting opening Without
Mounting opening cover no
Number of compartments 1 St.
Removable cover yes
Seal installation option no
Separating retainer fastening Plug
Suitable for expansion joint no
Surface Strip galvanized
Usable cross-section 11000 mm²
Vertical load, large area to 5,000 N
Vertical load, small area to 3,000 N
Width 210 mm
With connection opening no
With equipotential bonding no
With overhang yes
With separating retainer no
All types

All types

Types Length Width Item no. Quantity SSU
OKB E 25085 ON 2000 mm 210 mm 7403811
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Trunking end piece Trunking end piece OKB ES 25085 7403820
20 piece
Internal corner, without height adjustment unit Internal corner, without height adjustment unit OKB IE 25085 ON 7403826
1 piece
External corner, without height adjustment unit External corner, without height adjustment unit OKB AE 25085 ON 7403831
1 piece
T piece, without height adjustment units T piece, without height adjustment units OKB TS 25085 ON 7403836
1 piece
Device support Device support OKB IT 7403850
20 piece
Wall penetration Wall penetration OKB WD 25085 7403890
1 piece
Profile for screed limitation Profile for screed limitation OKB EP 1000 7403895
1 piece
Height adjustment unit RKNEV2 Height adjustment unit RKNEV2 RK NEV2 70 7405814
10 PU
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm UT4 45 4 7408727
5 piece
Protective conductor connection bracket Protective conductor connection bracket 8AWR 6288704
10 piece

Mounting accessories

Products Types Item no. Quantity SSU
Separating retainer OKB Separating retainer OKB OKB TW 85240 7403841
50 piece
Drilling template for trunking with brush bar Drilling template for trunking with brush bar OKB BS BL 7403883
10 piece
Downloads

No invitation to tender text is available for this product.
