On-floor branch trunking 2400 | 150 | 40 | 45

On-floor branch trunking

Item no. 7404874 | EAN 4012195101390

Item no. / Types

Length	2400 mm

Width

Height	40 mm

Usable cross-section

Product description

Product description

On-floor junction trunking base for blank/mounting lid with slope on both sides, free on floor for mounting, with plug-fit aluminium side profiles for layering and fixing the trunking lid. Trunking height suitable for installation of Telitanks.

Technical data

Technical data

Cross-section, draw 3	1171 mm²
Cross-section, draw a	1630 mm²
Cross-section, draw b	1120 mm²
Dimension	2400x150x40
Material	Steel
Number of compartments	3 St.
Number of insertable partitions	2

Plate thickness, base	1 mm
Separating retainer fastening	Plug
Suitable for	Cover sloping on both sides
Surface	Strip galvanized
Usable cross-section	45 cm²
With separating retainer	no

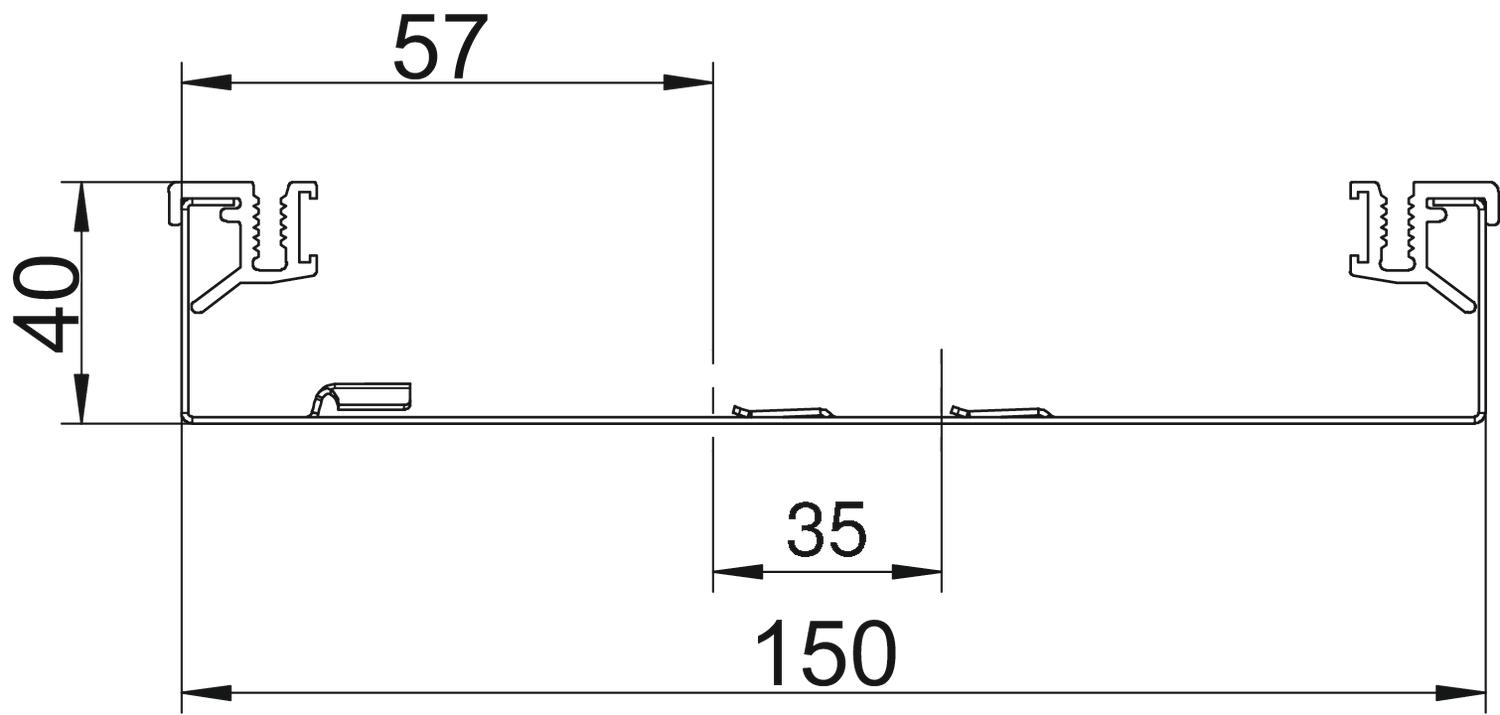

Dimensions

Dimension B	150 mm
Dimension b	150 mm
Dimension h	40 mm

Height	40 mm
Length	2400 mm
Width	150 mm

All types

All types

Types	Length	Width	Height	Usable cross-section	Item no.	Quantity	SSU
AIKA U 15040	2400 mm	150 mm	40 mm	45 cm²	7404874	m	2,4 m
AIKA U 25040	2400 mm	250 mm	40 mm	81 cm²	7404882	m	2,4 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

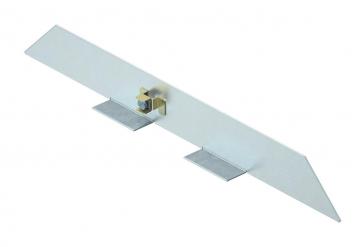

Trunking end piece, branch trunking	AIKA ES 15040	7404864	piece	1 piece
Trunking end piece, branch trunking	AIKA ES 25040	7404870	piece	1 piece

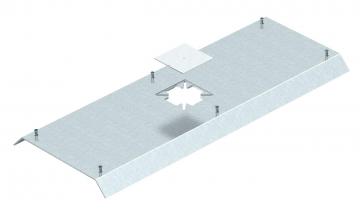

Device connection lid, branch trunking	AIKA DAT 15040	7404852	piece	1 piece
