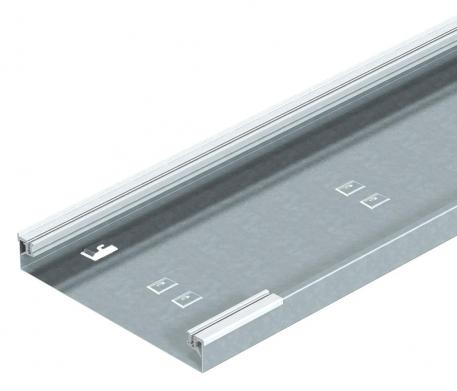

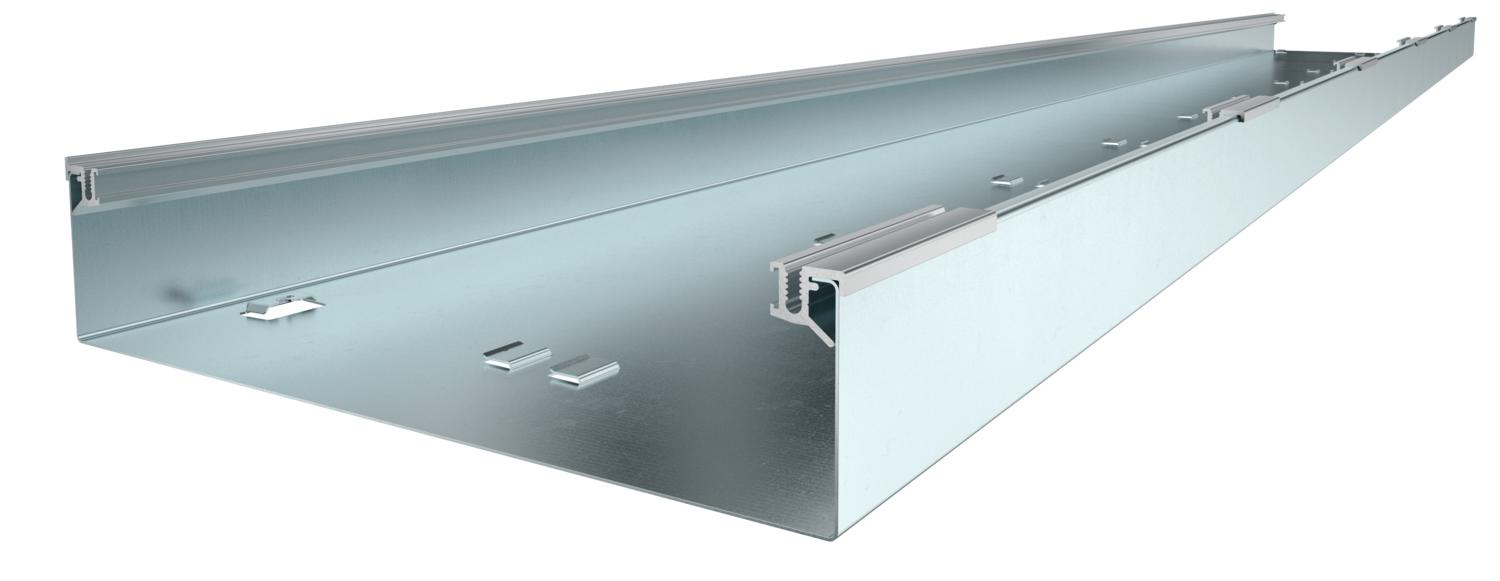

On-floor installation trunking, trunking height 75 mm

Item no. 7404720 | EAN 4012195100782

7404720 / AIKU 35075
2400 mm
350 mm
75 mm
248 cm²
Product description

Product description

On-floor trunking base, 1 compartment, for blank/mounting lid with slope on one side, with plug-fit aluminium side profiles for layering and fixing the trunking lid, metal floor base with holding shackles for max. two plug-in, self-contacting dividers and groove for earth conductor clamp. Trunking height suitable for installation of Telitanks or service outlets of nominal size 4, 6, 9.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

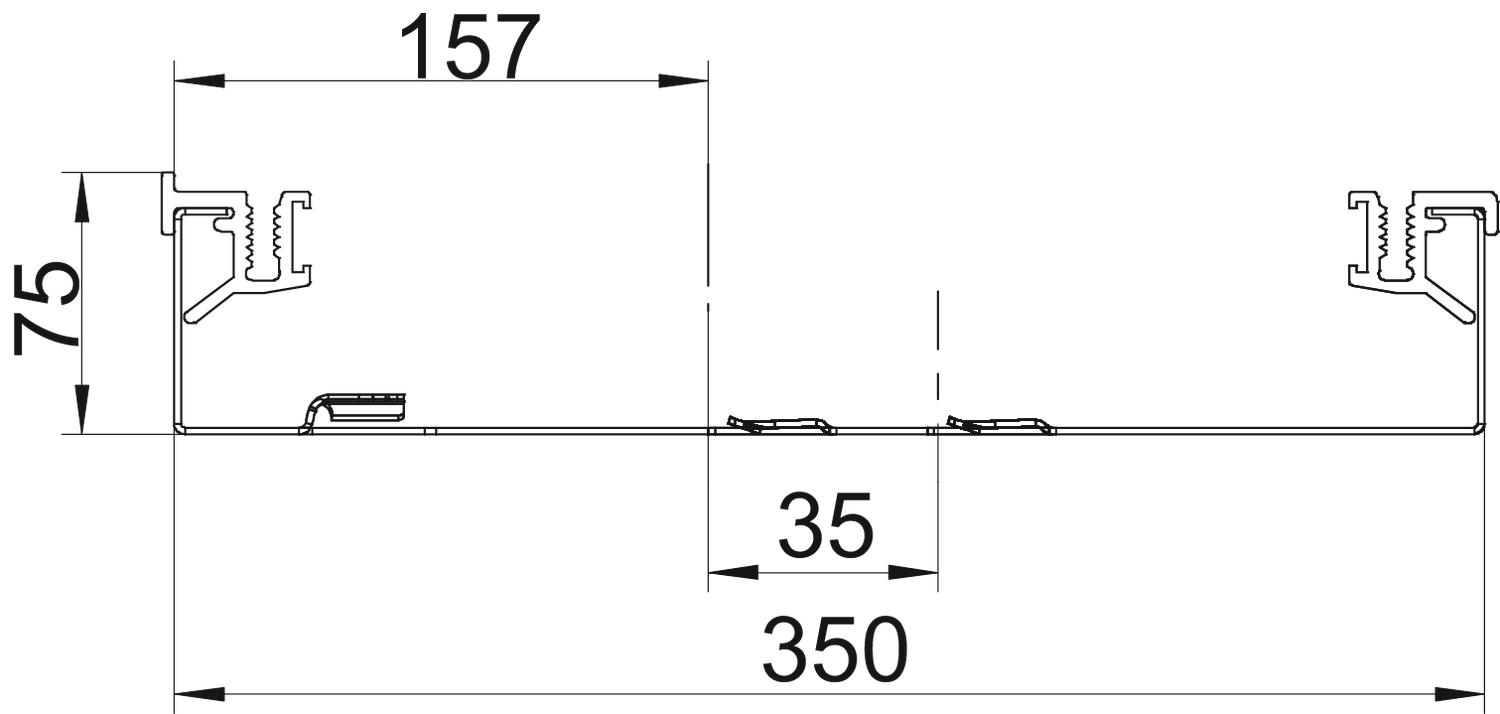

Cross-section, draw 3 10908 mm²
Cross-section, draw a 11673 mm²
Cross-section, draw b 2250 mm²
Dimension 2400x375x75
Dimension B 350 mm
Dimension b 350 mm
Dimension h 75 mm
Height 75 mm
Length 2400 mm
Material Steel
Number of compartments 3 St.
Number of insertable partitions 2
Plate thickness, base 1 mm
Separating retainer fastening Plug
Suitable for Cover sloping on one side
Surface Strip galvanized
Usable cross-section 248 cm²
Width 350 mm
With separating retainer no
All types

All types

Types Length Width Height Usable cross-section Item no. Quantity SSU
AIKU 35075 2400 mm 350 mm 75 mm 248 cm² 7404720
2,4 m
Accessories

System accessories

Products Types Item no. Quantity SSU

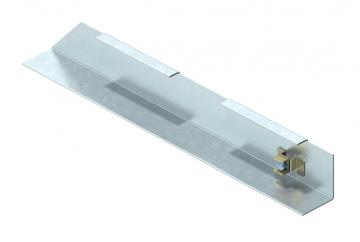

Trunking end piece, left side Trunking end piece, left side AIK ESL 35075 7404770
26 piece

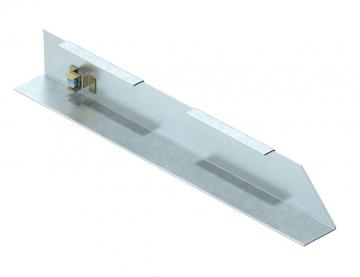

Trunking end piece, right side Trunking end piece, right side AIK ESR 35075 7404794
26 piece

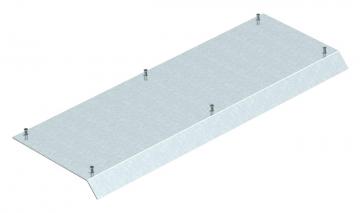

Blanking lid Blanking lid AIKF D 35075 7404948
1 piece

Mounting accessories

Products Types Item no. Quantity SSU

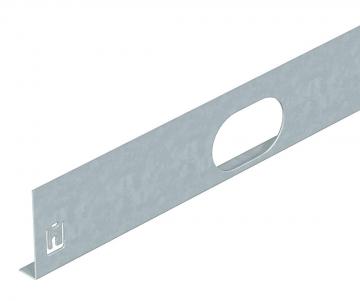

Trunking separating retainer for trunking height 75 mm Trunking separating retainer for trunking height 75 mm AIK TWL 75 7404816
2,4 m
Downloads

Download

No invitation to tender text is available for this product.
