Panel 190 mm for ISSMKS
Item no. 6286760 | EAN 4012197254100
- Product description
-
Product description

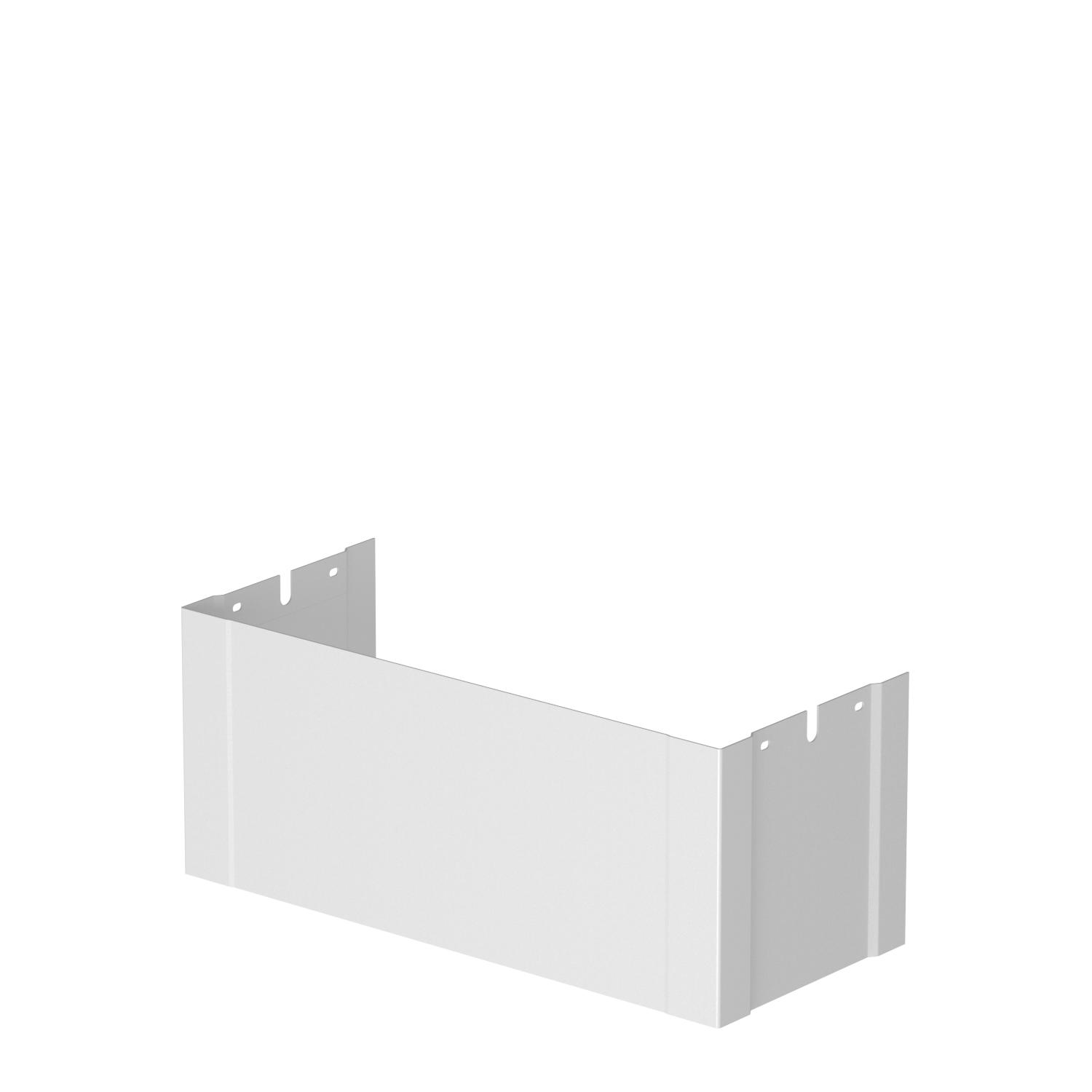

Height compensation panel for variable height adjustment. Hides the distance between the media pole and the ceiling. Suitable for a room height of 2,820 mm to 2,985 mm.
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Dimension 190x461x201 Fastening type Bolts Halogen-free yes Height compensation, min. 165 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP20 Protection rating IK code IK10 Surface Powder-coated Type of accessory Miscellaneous Dimensions

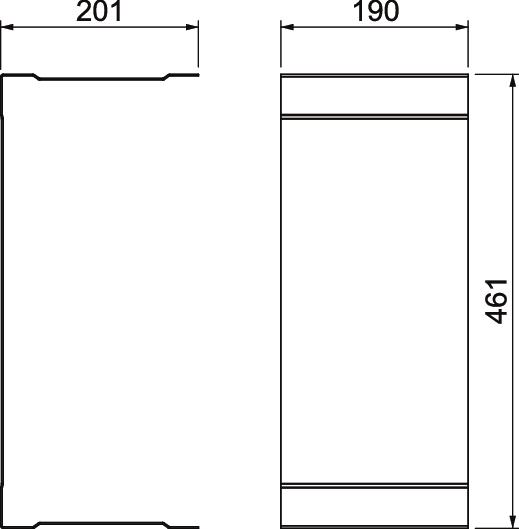

Height 201 mm Length 190 mm Width 461 mm - All types
- Downloads
-
Data sheet ISSMKS BL RW 190 / 6286760 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity ISSMKS BL RW 190 / 6286760 , 0.13MB , pdfUK Declaration of Conformity ISSMKS BL RW 190 / 6286760 , 0.14MB , pdfLabel approval VDE label approval ISSMKS media pole , 0.48MB , pdfMounting instructions Mounting instructions, media pole for schools ISSMKS , 12.78MB , pdfNo invitation to tender text is available for this product.
