Panel 520 mm for ISSMKS
Item no. 6286768 | EAN 4012197254216
- Product description
-
Product description
Height compensation panel for variable height adjustment. Hides the distance between the media pole and the ceiling. Suitable for a room height of 3,150 mm to 3,315 mm.
-
- Technical data
-
Technical data

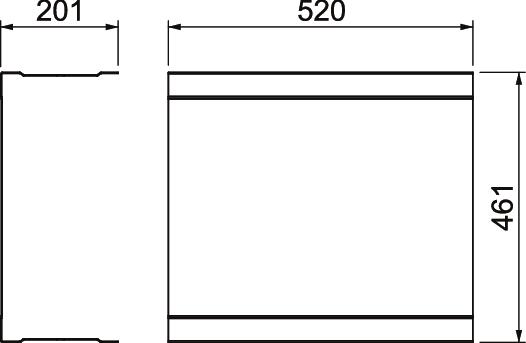

Colour Pure white; RAL 9010 Dimension 520x461x201 Fastening type Bolts Halogen-free yes Height compensation, min. 165 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP20 Protection rating IK code IK10 Surface Powder-coated Type of accessory Miscellaneous Dimensions
Height 201 mm Length 520 mm Width 461 mm - All types
- Downloads
-
Data sheet ISSMKS BL RW 520 / 6286768 , 0.20MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity ISSMKS BL RW 520 / 6286768 , 0.13MB , pdfUK Declaration of Conformity ISSMKS BL RW 520 / 6286768 , 0.14MB , pdfLabel approval VDE label approval ISSMKS media pole , 0.48MB , pdfMounting instructions Mounting instructions, media pole for schools ISSMKS , 12.78MB , pdfNo invitation to tender text is available for this product.
