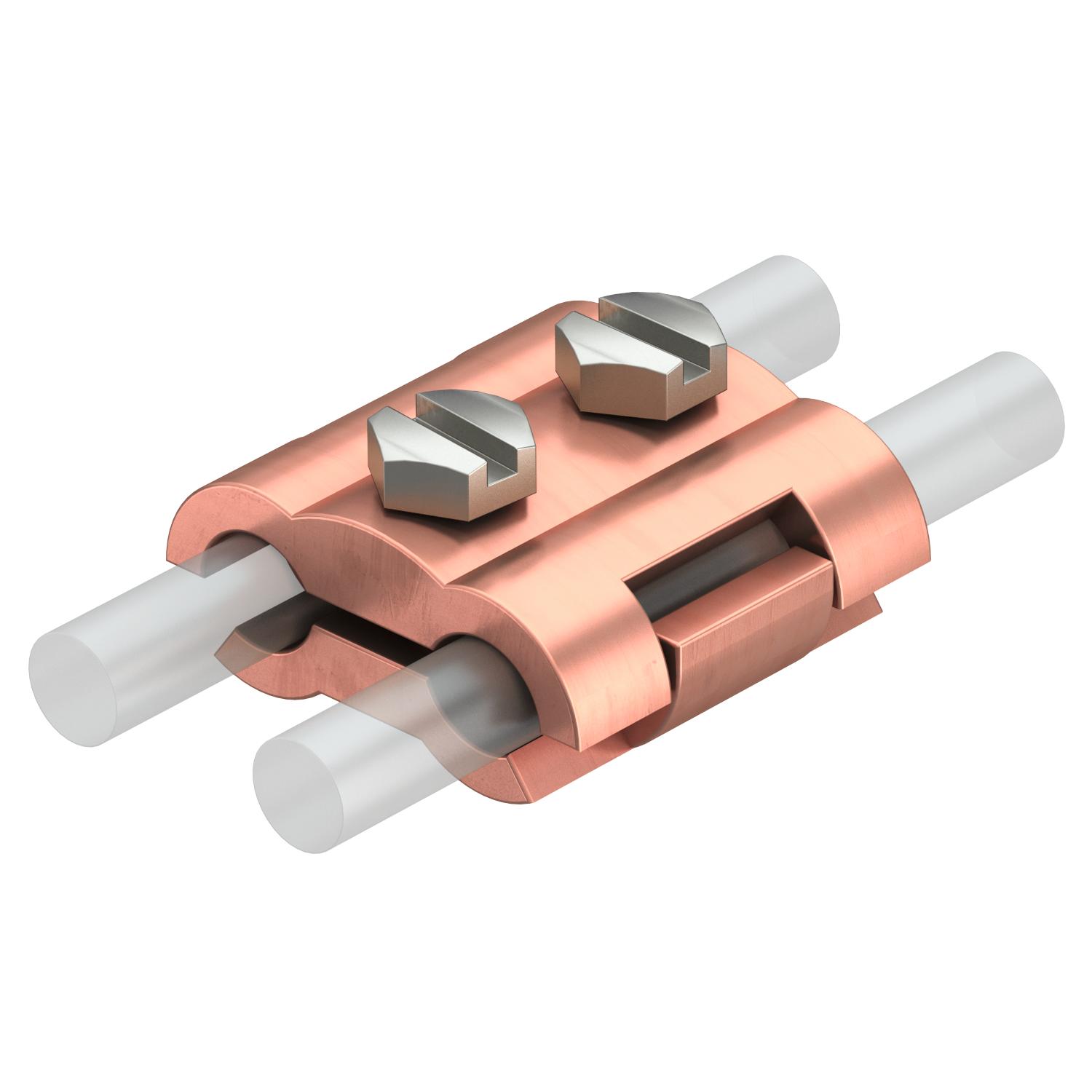

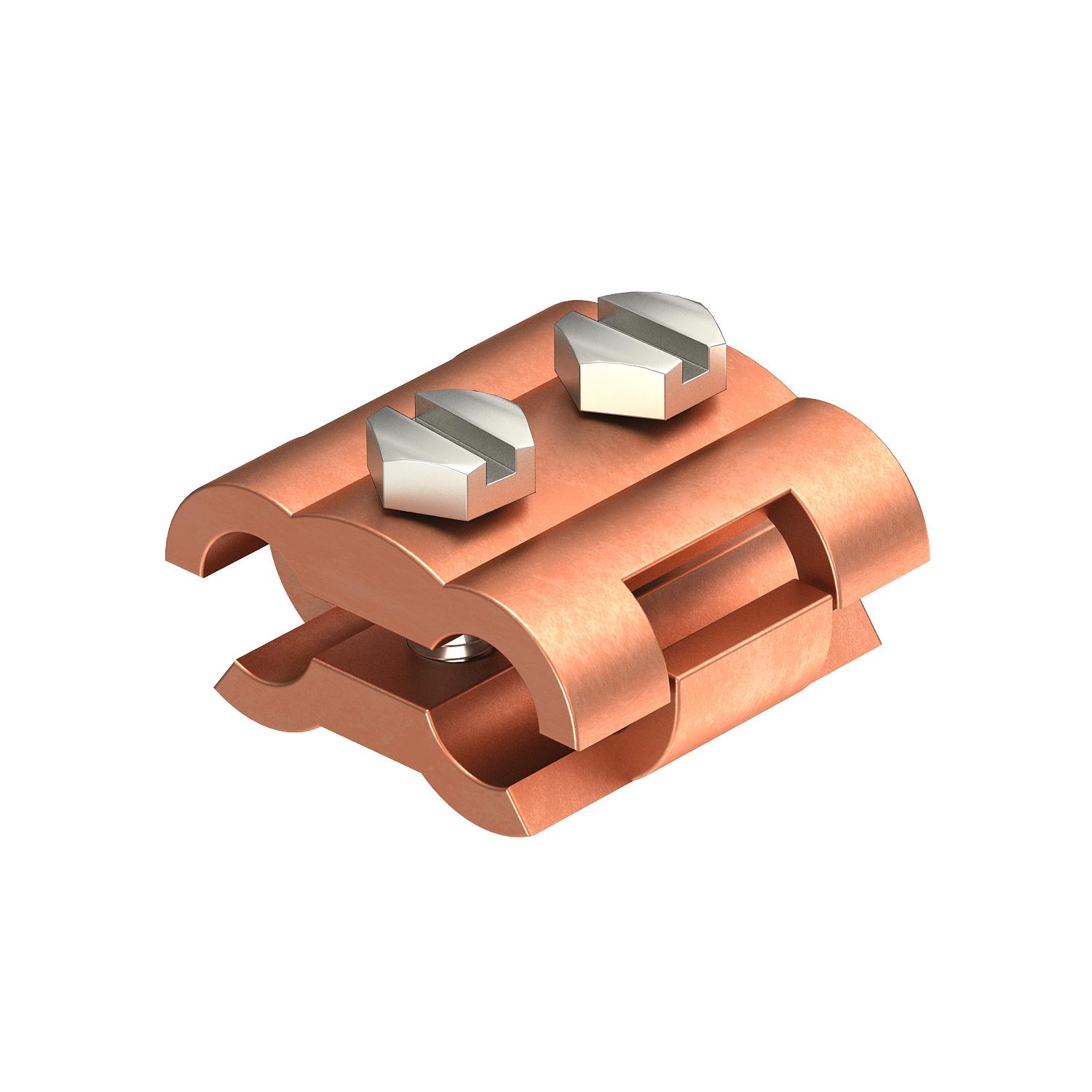

Parallel connector Rd 6−10 mm, M6 x 20
Item no. 5315654 | EAN 4012195419778
- Product description
-
Product description• With 2 hexagonal bolts M6 x 20 made of stainless steel (V2A)
-
- Technical data
-
Technical data

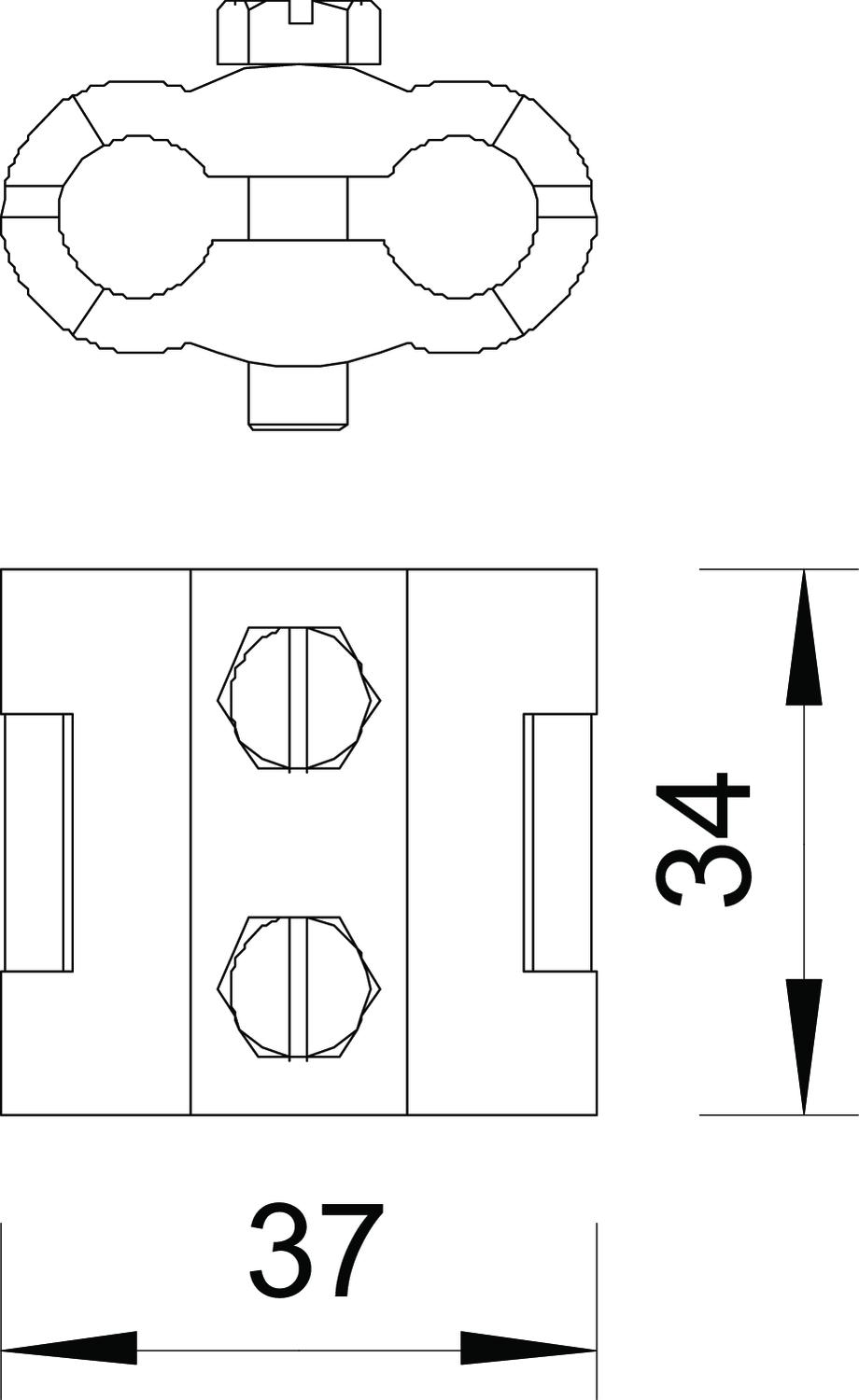

CO₂ Footprint (GWP) Cradle-to-Gate 0,2837 kg CO₂e / 1 Piece Dimension 8/8mm Fit Rd 6-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Brass Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 6 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 6 mm Suitable for connection Round conductor Rd 6–10 / Rd 6–10 Surface Copper-plated Type of connector Parallel connector Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 260 8-10 MS / 5315654 , 0.17MB , pdfEU declaration of conformity 260 8-10 MS / 5315654 , 0.06MB , pdfREACH Declaration of conformity 260 8-10 MS / 5315654 , 0.12MB , pdfRoHS Declaration of conformity 260 8-10 MS / 5315654 , 0.12MB , pdfMounting instructions Mounting instructions, 260 8-10 MS parallel connector , 0.98MB , pdf
