Parallel connector Rd 8 mm, M10 x 30

Item no. 5315700 | EAN 4012195419839

5315700 / 260 8
Rd 8 mm
Product description
Product description
• With flat, round bolt M10 x 30 and hexagonal nut, hot-dip galvanised steel
  • Lightning current-tested
Technical data

Technical data

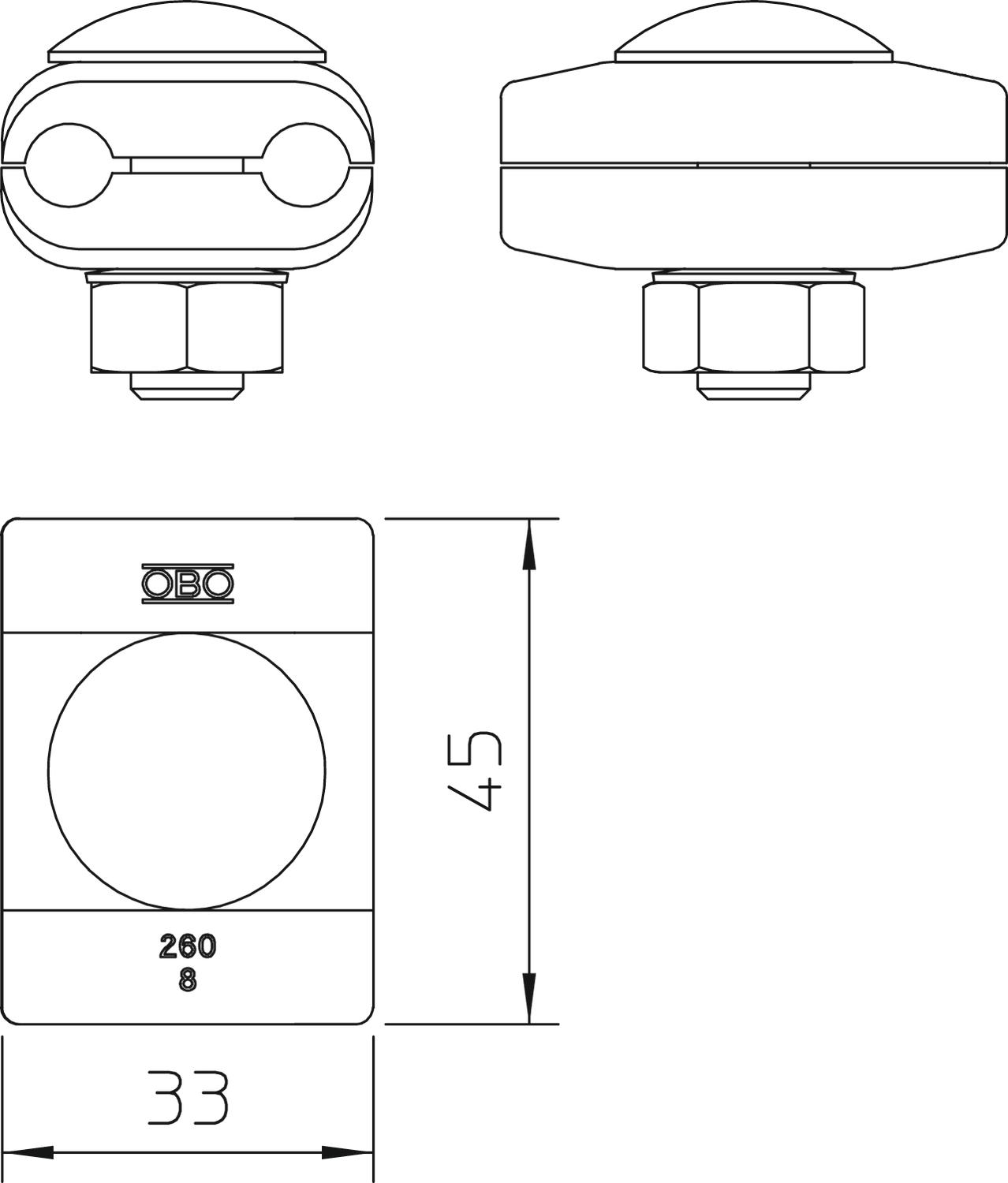

Dimension 8x8mm
Fit Rd 8 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Die-cast zinc
Round conductor diameter, conductor 1, max. 8 mm
Round conductor diameter, conductor 1, min. 8 mm
Round conductor diameter, conductor 2, max. 8 mm
Round conductor diameter, conductor 2, min. 8 mm
Suitable for connection Round conductor Rd 8 / Rd 8
Surface Electrogalvanized
Type of connector Parallel connector
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
260 8 Rd 8 mm 5315700
50 piece
Downloads

Download

Download

EU declaration of conformity 260 8 / 5315700 , 0.06MB , pdf

260 8 / 5315700
