Partition BRA TW, steel 1000 | 70
morepic-1 morepic-2

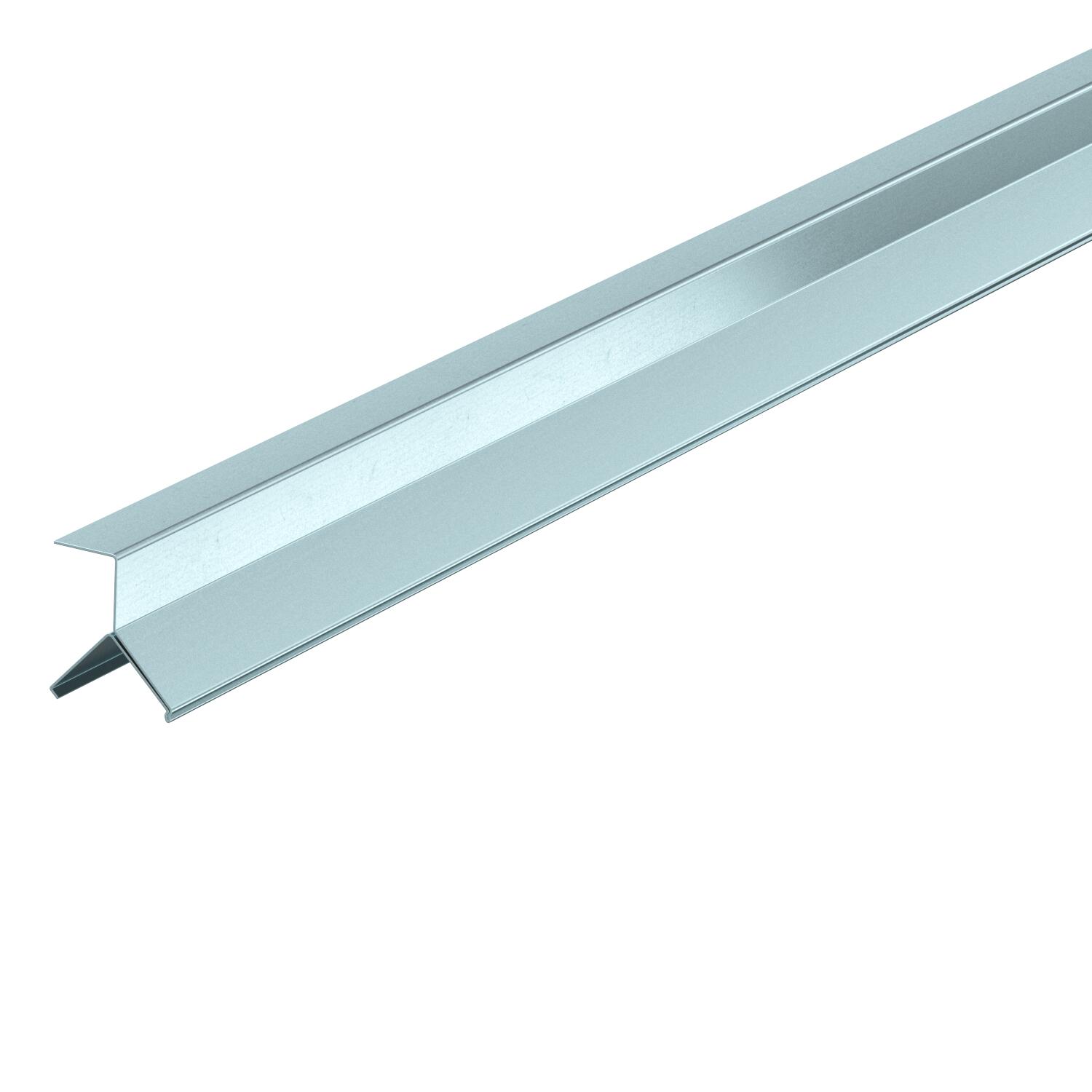

Partition BRA TW, steel

Item no. 6133178 | EAN 4012196725694

6133178 / BRA TW Stahl
1000 mm
70
Product description

Product description

Separating retainer for the Signa Style device installation trunking. For dividing the trunking system into 2 equally sized chambers.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Dimension 38x44x1000
Fastening type Lockable
Halogen-free yes
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Suitable for duct depth 70
Surface Strip galvanized
Version for Single

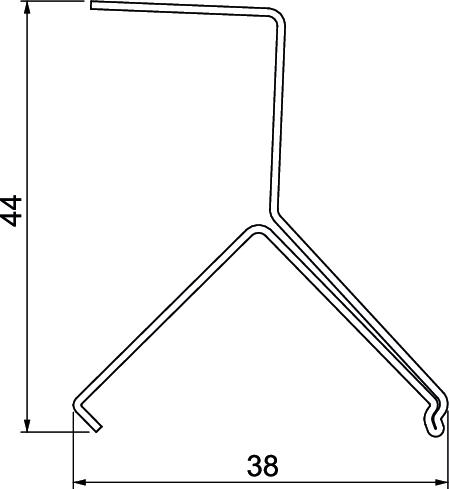

Dimensions

Height 44 mm
Length 1000 mm
Width 38 mm
All types

All types

Types Length Suitable for duct depth Item no. Quantity SSU
BRA TW Stahl 1000 mm 70 6133178
30 m
Downloads

Download

Declaration of conformity BRA TW Stahl / 6133178 , 0.13MB , pdf
Download
REACH Declaration of conformity BRA TW Stahl / 6133178 , 0.12MB , pdf
Download
RoHS Declaration of conformity BRA TW Stahl / 6133178 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
