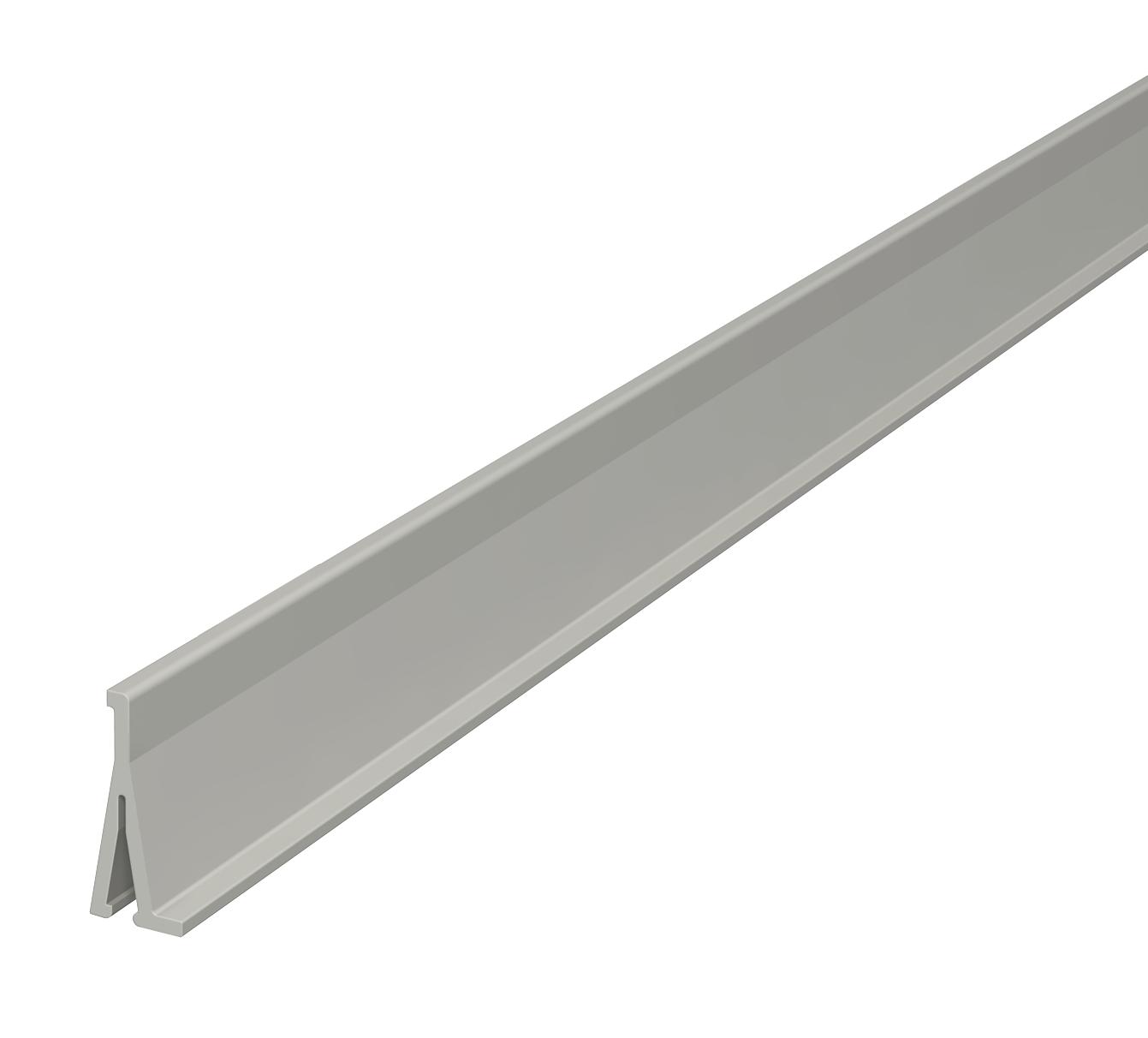

Partition for WDK trunking, trunking height 40 mm

Item no. 6023096 | EAN 4012196024315

6023096 / 2371 40
2000 mm
Product description
Product description
Partition to divide the WDK trunking, with 40 mm trunking height, and various ISS service poles for the installation of different voltage levels.
The partitions are pinned on the connectors in the base.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 40x2000mm
Fastening type Plug-in
Halogen-free no

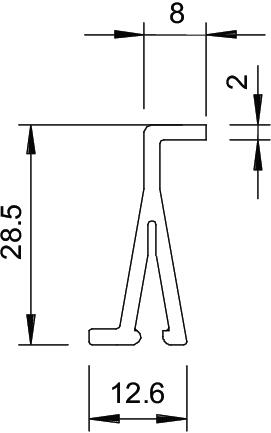

Height 28,5 mm
Length 2000 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Self-extinguishing yes
Trunking depth 40 mm
Version for Single
Width 12,6 mm
All types

All types

Types Length Item no. Quantity SSU
2371 40 2000 mm 6023096
60 m
Downloads

Download

EU declaration of conformity 2371 40 / 6023096 , 0.13MB , pdf
Download
REACH Declaration of conformity 2371 40 / 6023096 , 0.12MB , pdf
RoHS Declaration of conformity 2371 40 / 6023096 , 0.12MB , pdf

No invitation to tender text is available for this product.
