Partition for WDK trunking, trunking height 80 mm
Item no. 6026982 | EAN 4012196030675
- Product description
-
Product descriptionPartition to divide the WDK trunking, with 80 mm trunking height for the installation of different voltage levels.
The partitions are pinned on the connectors in the base.
-
- Technical data
-
Technical data

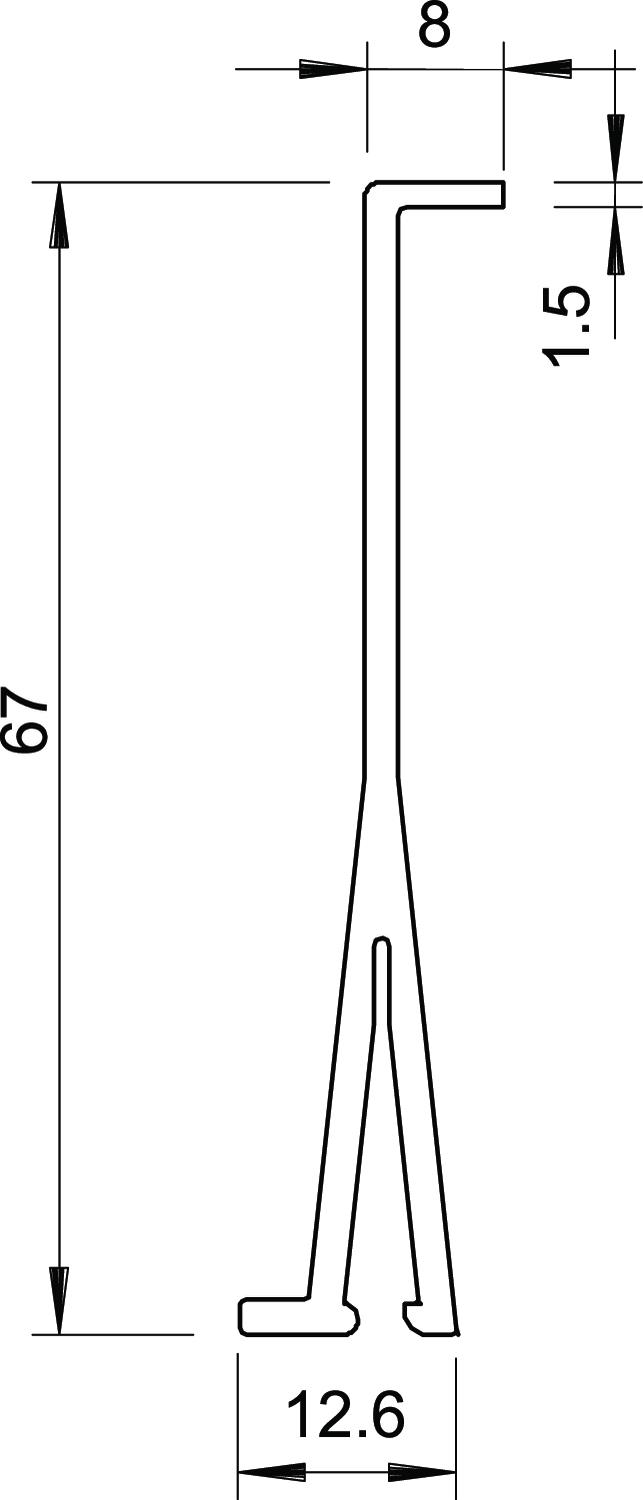

Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 80x2000mm Fastening type Plug-in Halogen-free no Height 67 mm Length 2000 mm Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Self-extinguishing yes Trunking depth 80 mm Version for Single Width 12,6 mm - All types
- Downloads
-
Data sheet 2371 80 / 6026982 , 0.20MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity 2371 80 / 6026982 , 0.13MB , pdfUK Declaration of Conformity 2371 80 / 6026982 , 0.14MB , pdfREACH Declaration of conformity 2371 80 / 6026982 , 0.12MB , pdfRoHS Declaration of conformity 2371 80 / 6026982 , 0.12MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
