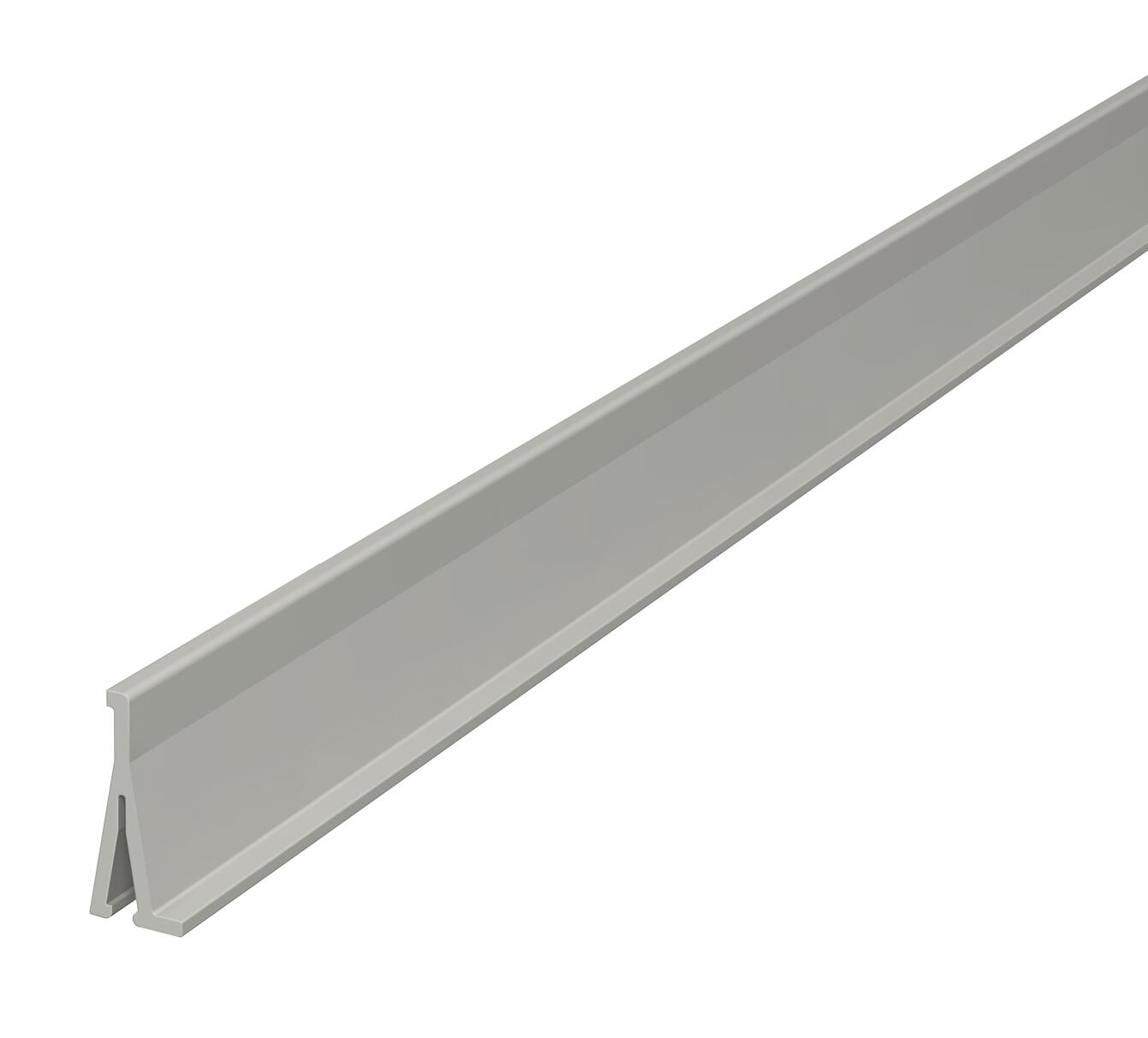

Partition, halogen-free, for trunking height 40 mm

Item no. 6175500 | EAN 4012195812517

6175500 / WDKH-TW40LGR
2000 mm
Product description
Product description
Partition to divide the WDKH trunking of 40 mm trunking height for the installation of different voltage levels.
The partitions are pinned on the connectors in the base.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035

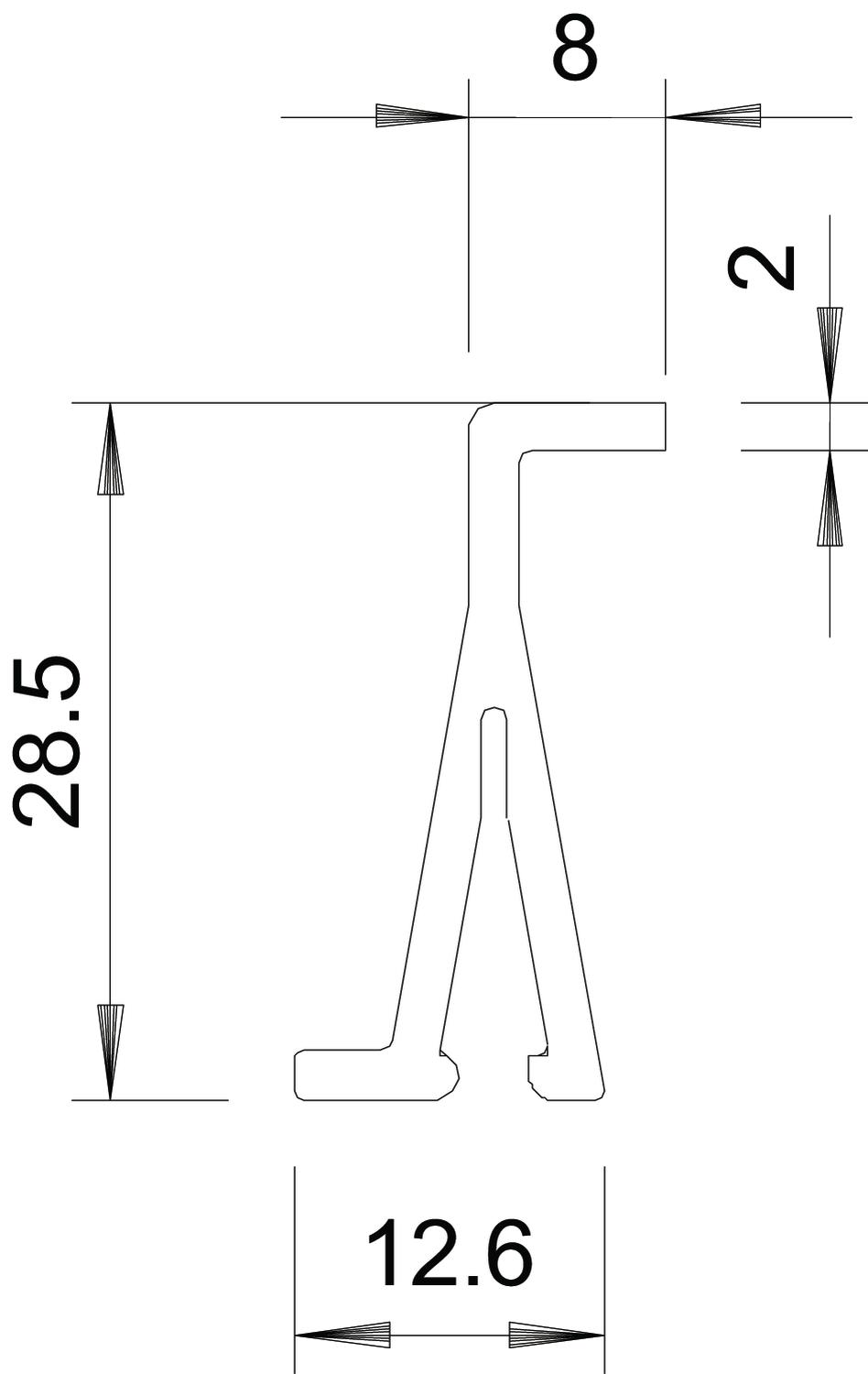

Dimension 15x28x2000
Dimension a 2000 mm
Fastening type Lockable
Halogen-free yes
Height 28,5 mm
Length 2000 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Self-extinguishing yes
Version for Single
Width 12,6 mm
All types

All types

Types Length Item no. Quantity SSU
WDKH-TW40LGR 2000 mm 6175500
60 m
