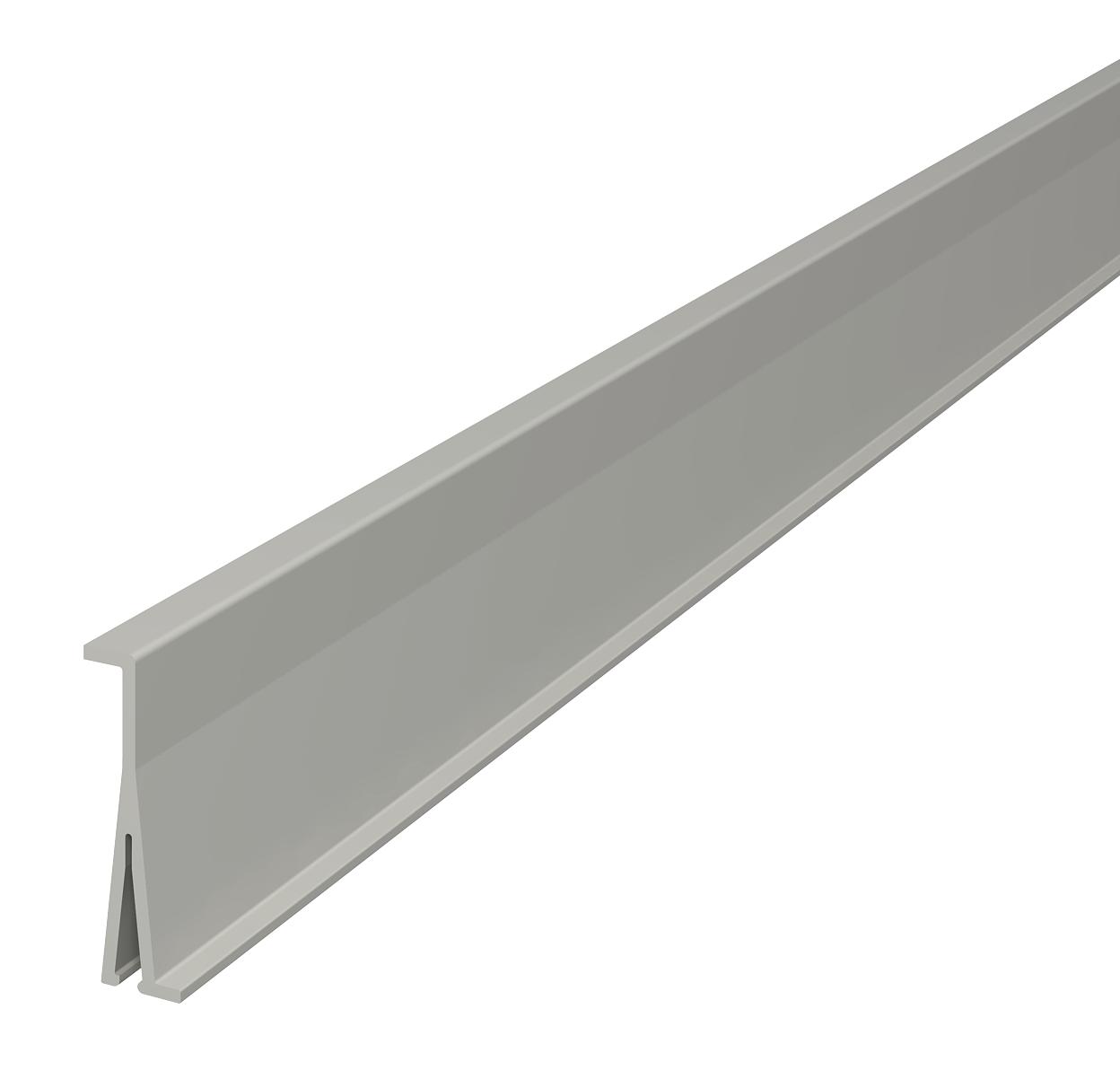

Partition, halogen-free, for trunking height 60 mm
Item no. 6175504 | EAN 4012195812524
- Product description
-
Product descriptionPartition to divide the WDKH trunking of 60 mm trunking height for the installation of different voltage levels.
The partitions are pinned on the connectors in the base.
-
- Technical data
-
Technical data

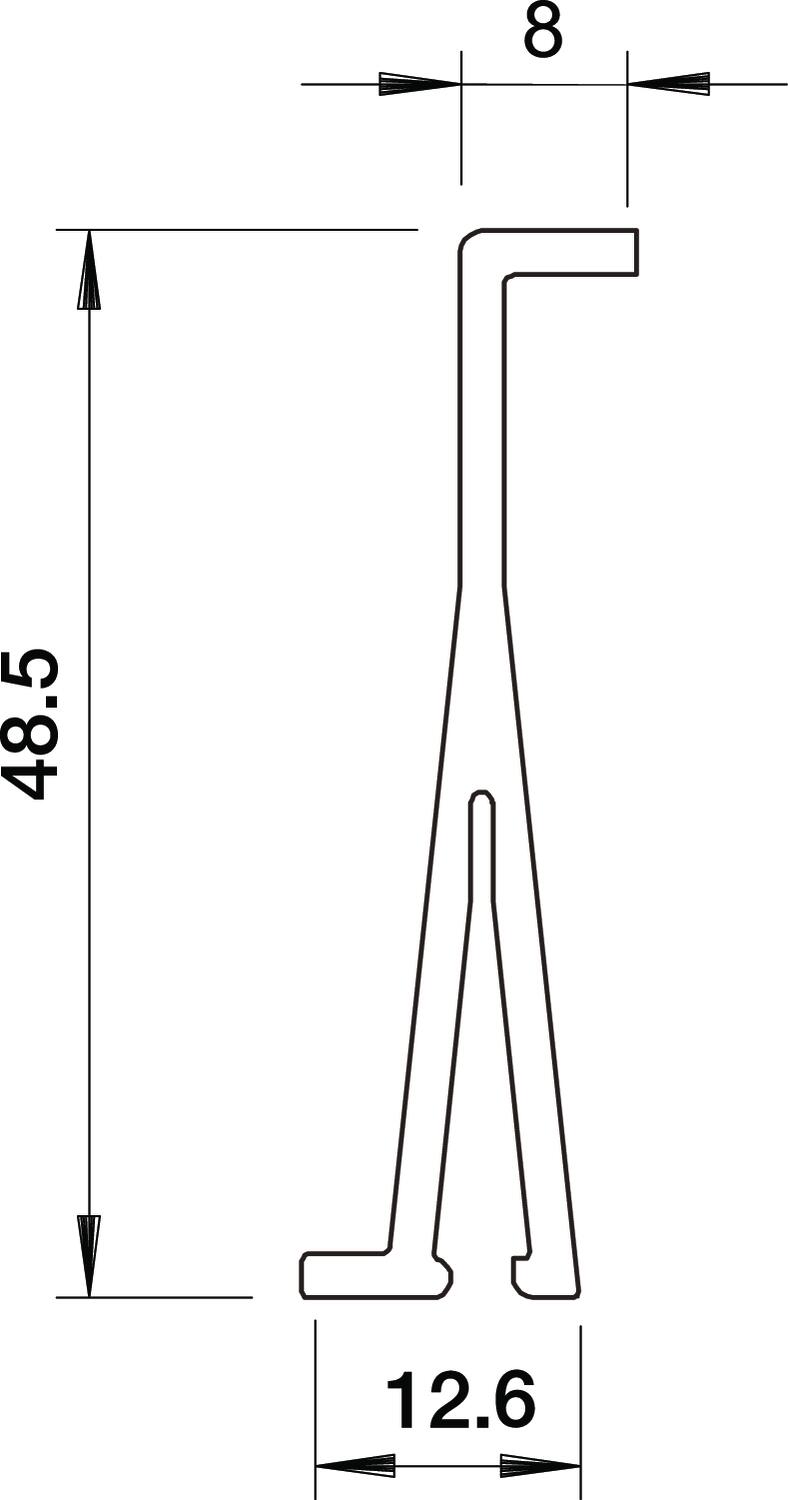

Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 15x50x2000 Dimension a 2000 mm Fastening type Lockable Halogen-free yes Height 48,5 mm Length 2000 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Self-extinguishing yes Version for Single Width 12,6 mm - All types
