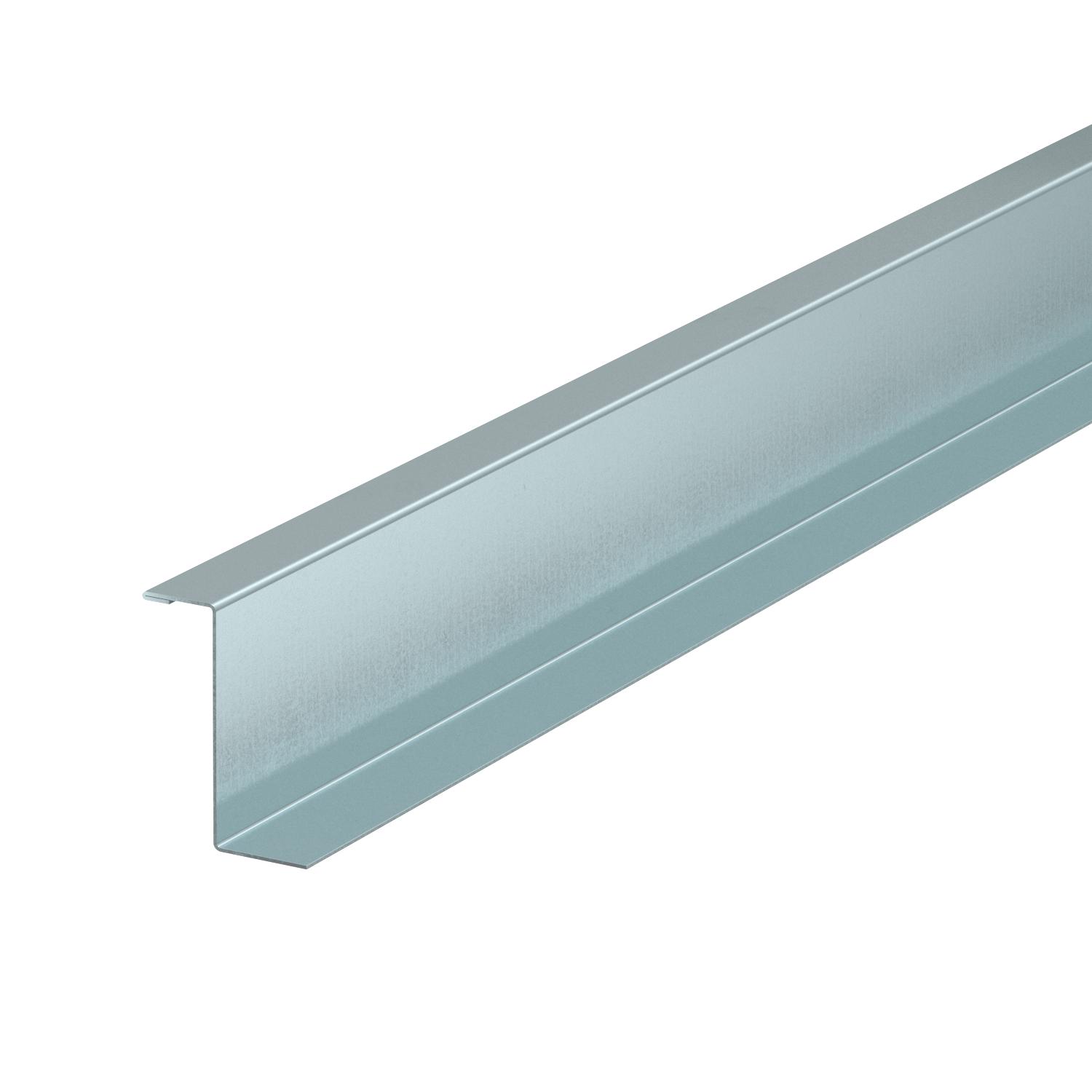

Partition LKM/TWS45

Item no. 6249871 | EAN 4012196678006

6249871 / LKM TWS45
2000 mm
Product description
Product description
Partition to divide the LKM cable trunking, 60 mm trunking height, for different voltage levels.
The loop perforation in the base transfers the equipotential bonding to the partition.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Dimension 45x2000mm
Dimension a 45 mm
Fastening type Plug-in
Halogen-free yes
Height 45 mm
Length 2000 mm
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Surface Strip galvanized
Trunking depth 60 mm
Version for Single
Width 34 mm
All types

All types

Types Length Item no. Quantity SSU
LKM TWS45 2000 mm 6249871
2 m
