Partition TWP 2000 | 133
morepic-1 morepic-2 video-1

Partition TWP

Item no. 6288264 | EAN 4012195147510

6288264 / TWP
2000 mm
133
Product description
Product description
Partition for desk trunking to divide the trunking for different voltage levels.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

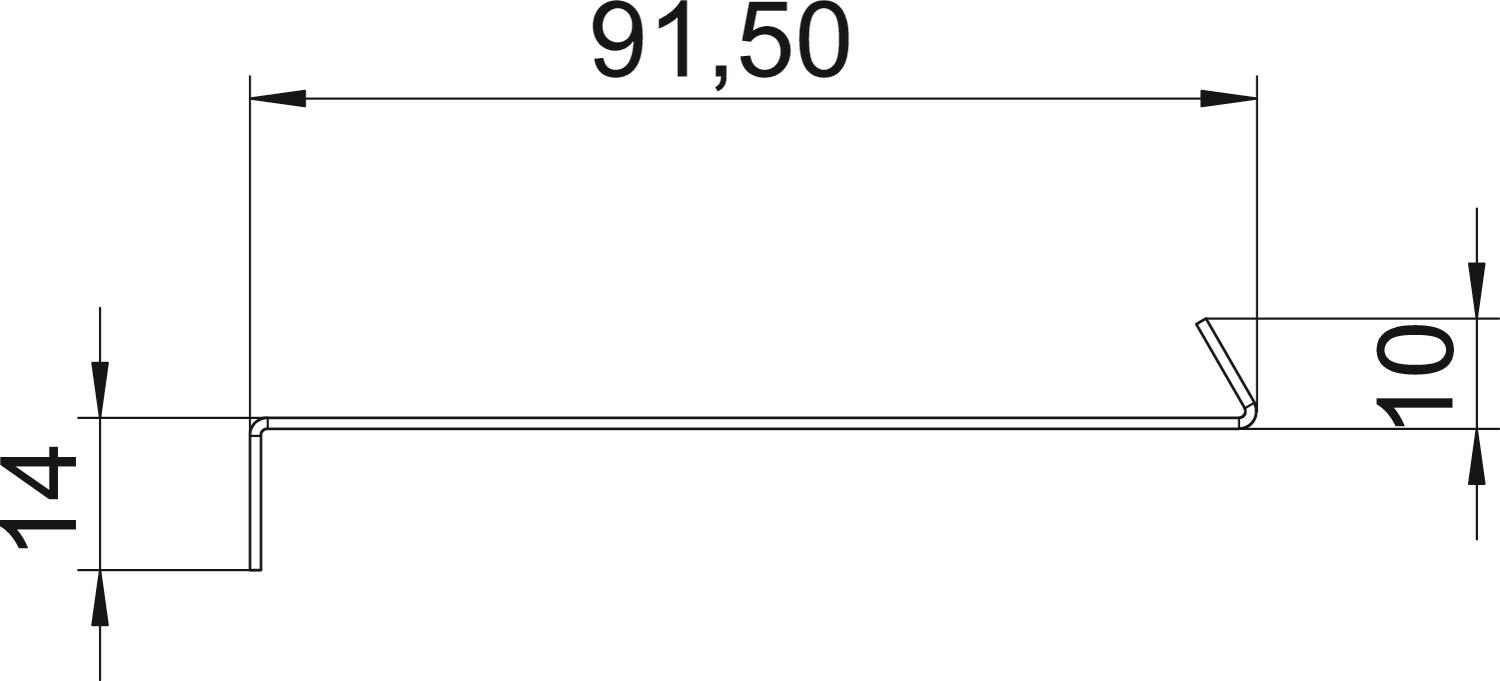

Dimension 14x92x2000
Fastening type Plug-in
Halogen-free yes
Height 92 mm
Length 2000 mm
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Suitable for duct depth 133
Surface Strip galvanized
Version for Single
Width 14 mm
All types

All types

Types Length Suitable for duct depth Item no. Quantity SSU
TWP 2000 mm 133 6288264
2 m
Downloads

Download

Download

EU declaration of conformity TWP / 6288264 , 0.13MB , pdf
Download
UK Declaration of Conformity TWP / 6288264 , 0.14MB , pdf
Download
REACH Declaration of conformity TWP / 6288264 , 0.12MB , pdf
Download
RoHS Declaration of conformity TWP / 6288264 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
