Pipe adapter, trunking to pipe, 19 mm

morepic-1

morepic-2

Pipe adapter, trunking to pipe, 19 mm

Item no. 6193728 | EAN 4012195959205

Product description

Product description

Pipe adapter for transferring an installation pipe to the WDK trunking.

Technical data

Technical data

Colour	Oyster white; RAL 1013
Dimension	15x27x50mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04

All types

All types

Types		Item no.	Quantity	SSU
WDK HPC13025PW19		6193728	piece	10 piece
WDK HPC13025RW19		6193730	piece	180 piece

Downloads

Data sheet WDK HPC13025PW19 / 6193728 , 0.09MB , pdf

Catalogue cable routing systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable routing systems , 2.10MB , pdf

Catalogue Cable routing systems , 17.62MB , pdf

EU declaration of conformity WDK HPC13025PW19 / 6193728 , 0.13MB , pdf

Label approval VDE-Zeichengenehmigung WDK , 0.64MB , pdf

Download

Mounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdf

Download

Safety data sheet PVC_Material data , 0.02MB , pdf

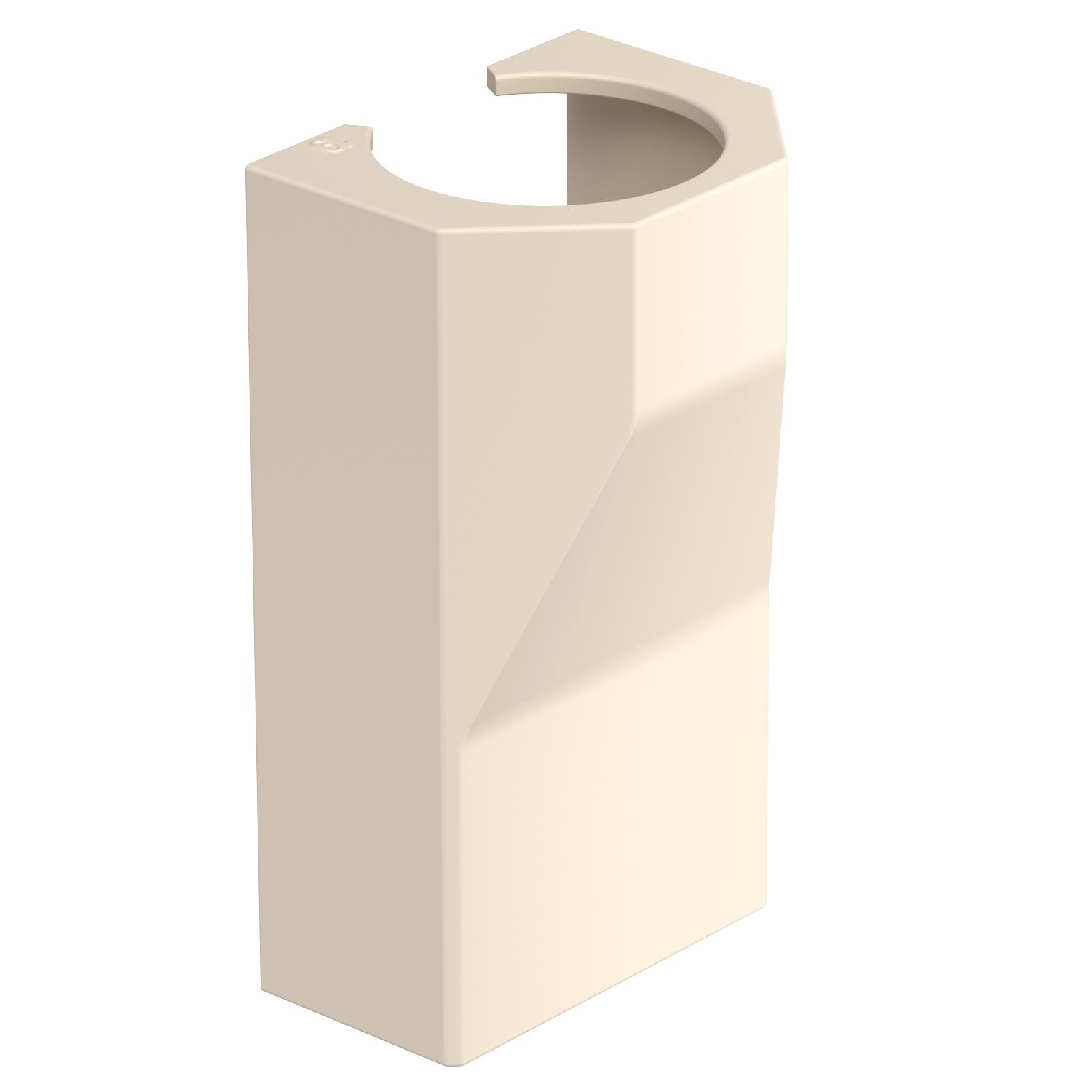

Product graphic WDK HPC13025PW19 / 6193728, 29.39 kB, jpg

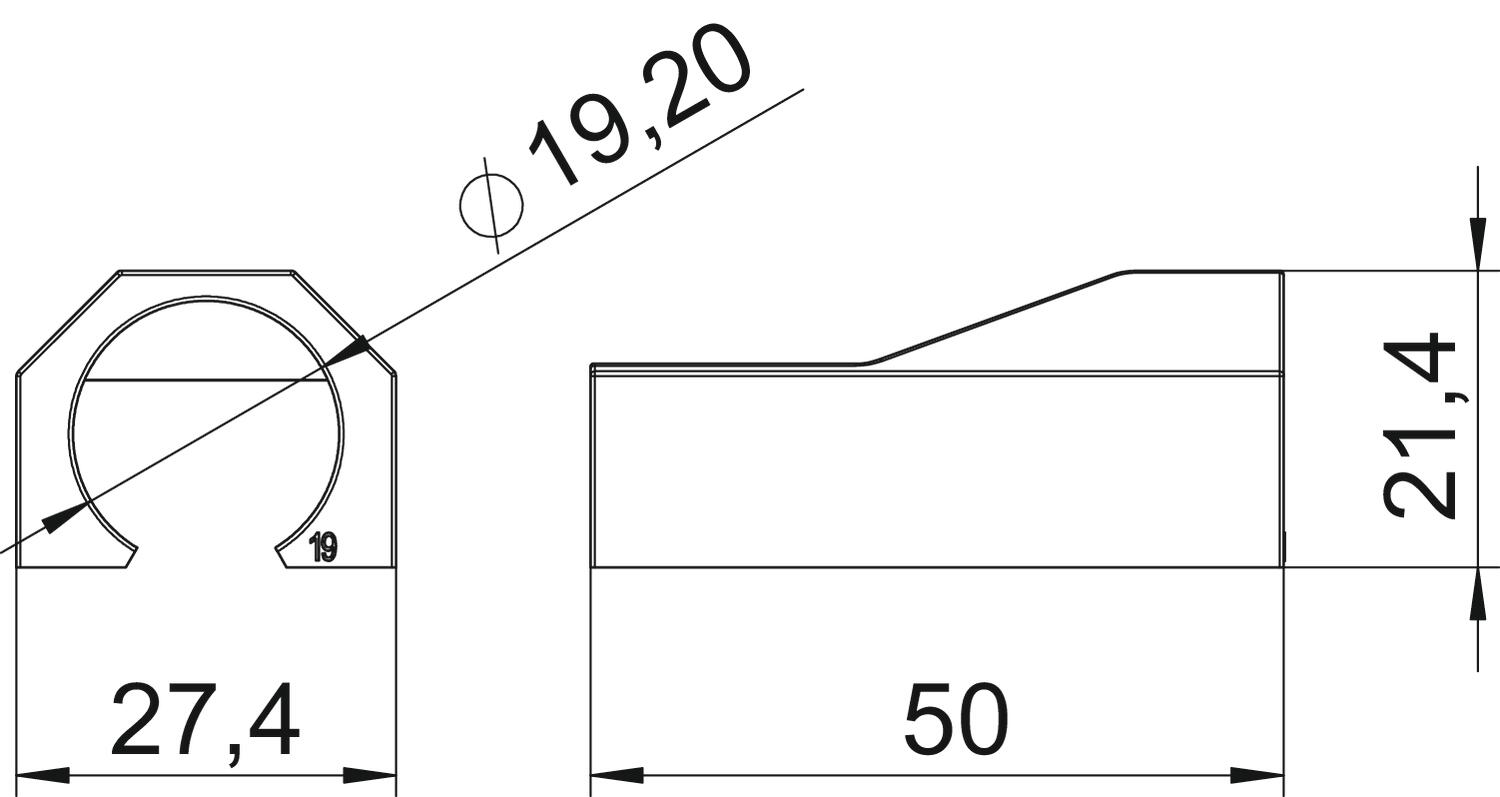

Scale drawing WDK HPC13025PW19 / 6193728, 53.02 kB, jpg

No invitation to tender text is available for this product.
